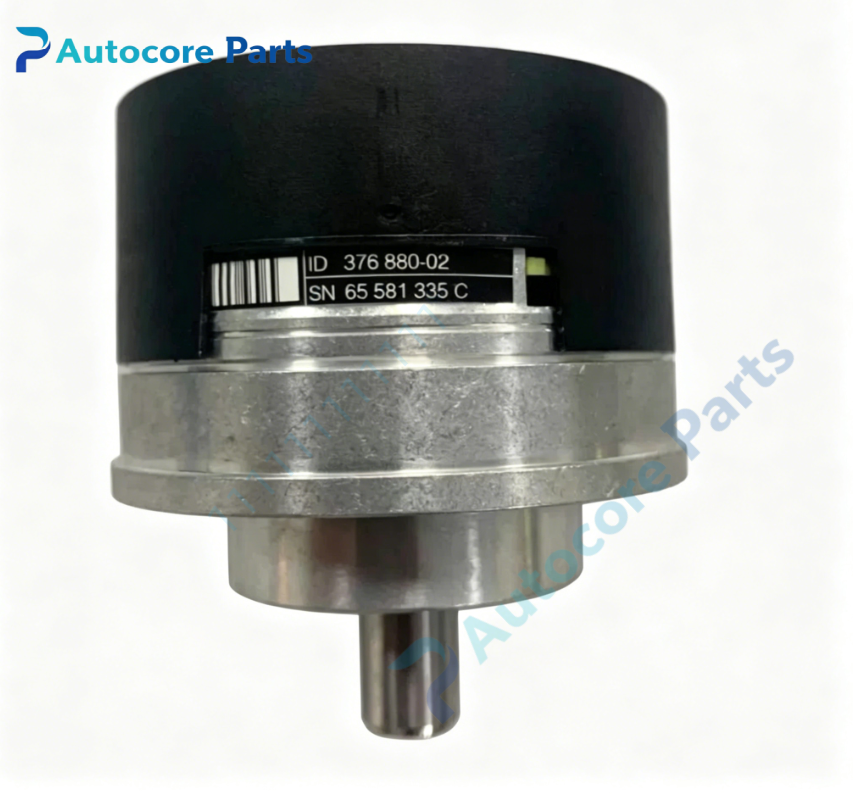

HEIDENHAIN ROD 1380 100 Incremental Rotary Encoder

Technical Specifications

Model：ROD 1380 100 Brand：HEIDENHAIN Product Type: Bearing-integrated incremental optical rotary encoder requiring external flexible shaft coupling

Module Feature

Function: HEIDENHAIN ROD 1380 100 is incremental rotary encoder with built-in precision bearing. It outputs 1Vpp sine/cosine A/B/Z incremental measuring signals, 100 lines per revolution. Solid shaft design, must connect with motor shaft by external flexible coupling to compensate axial and radial installation offset. Max scanning frequency 120kHz, supports medium spindle rotational speed. Widely used on heavy horizontal boring mills, machining centers for spindle angular position and speed closed-loop measurement.

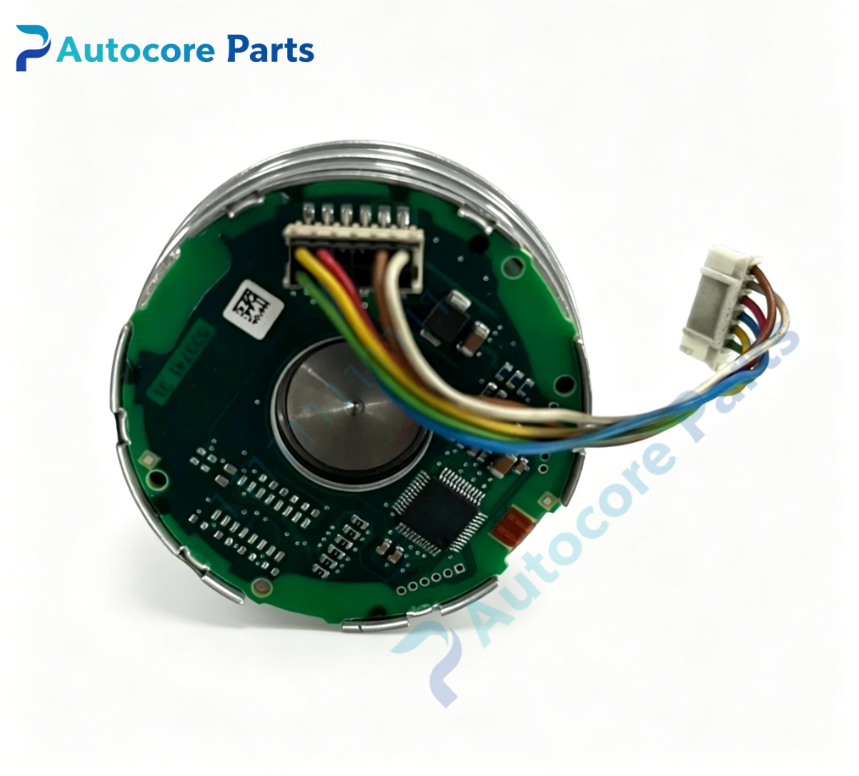

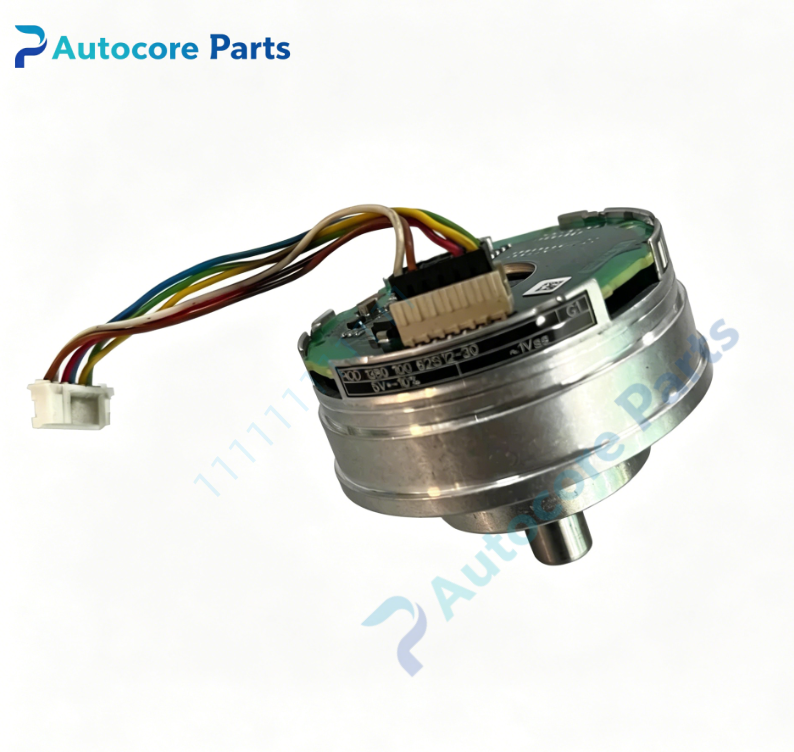

Measuring principle: Incremental optical scanning Incremental lines: 100 lines per revolution Output Signal: 1 Vpp sine/cosine incremental signals + reference mark Z pulse Shaft type: Solid shaft, external flexible coupling required Onboard components: Optical grating disc, scanning assembly, built-in bearing, metal synchro flange housing, signal cable / connector

LED indicators: Not equipped on encoder body

Hardware self-diagnosis

Signal amplitude test, reference mark detection, bearing noise inspection, signal waveform monitoring

Programming software

HEIDENHAIN diagnostic software for signal quality analysis and parameter check

Electrical Parameters

Supply voltage: 5VDC ±10% Power consumption: ≤180mA

Mechanical & Structure

Mounting: Synchro flange mounting, solid shaft connected via external bellows coupling Protection class: IP64 (housing)

Environmental

Operating temperature: -40℃ ~ +100℃ Ambient humidity: 5~85% non-condensing Certification: CE Status: HEIDENHAIN heavy-duty incremental rotary encoder

System compatibility

Compatibility description: ROD1380 series encoder compatible with HEIDENHAIN EXE interpolation units and CNC drives supporting 1Vpp sinusoidal input. Suitable for Fives Giddings & Lewis PIC900 CNC heavy boring mill spindle axis.

Function

Function description: ROD 1380 100 is incremental rotary encoder manufactured by HEIDENHAIN. It generates high-quality sine/cosine incremental signals for electronic interpolation to achieve higher resolution. Reference mark Z pulse is used to establish machine datum after power cycle. External coupling isolates mechanical misalignment and protects encoder internal bearing. Compact metal housing withstands cutting oil, dust and vibration in machine workshop. It is precision measuring spare for heavy CNC boring mill spindle motion control.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off all power supply. Fix encoder synchro flange, mount flexible coupling between encoder solid shaft and machine spindle. Connect shielded encoder cable to interpolation or CNC control unit. Adjust coupling alignment, lock all fasteners. Restore power, run signal amplitude test and reference mark detection test.

Interface

Interface list: Signal connector, 5VDC power and 1Vpp measuring signal terminals, no LED indicators on ROD 1380 100.

Diagnostic

Troubleshooting: No measuring signal: Check 5V power supply, cable breakage or connector pin contact. Reference mark cannot be detected: Optical window contamination or coupling misalignment. Intermittent signal fluctuation: Vibration, coupling wear or bearing deterioration.

Product Brief

Brief description: ROD 1380 100 HEIDENHAIN bearing-integrated incremental rotary encoder with 100 lines and 1Vpp sine/cosine output,solid shaft with external coupling,used for spindle angular position and speed measurement of heavy CNC boring mill,rotary encoder spare.
