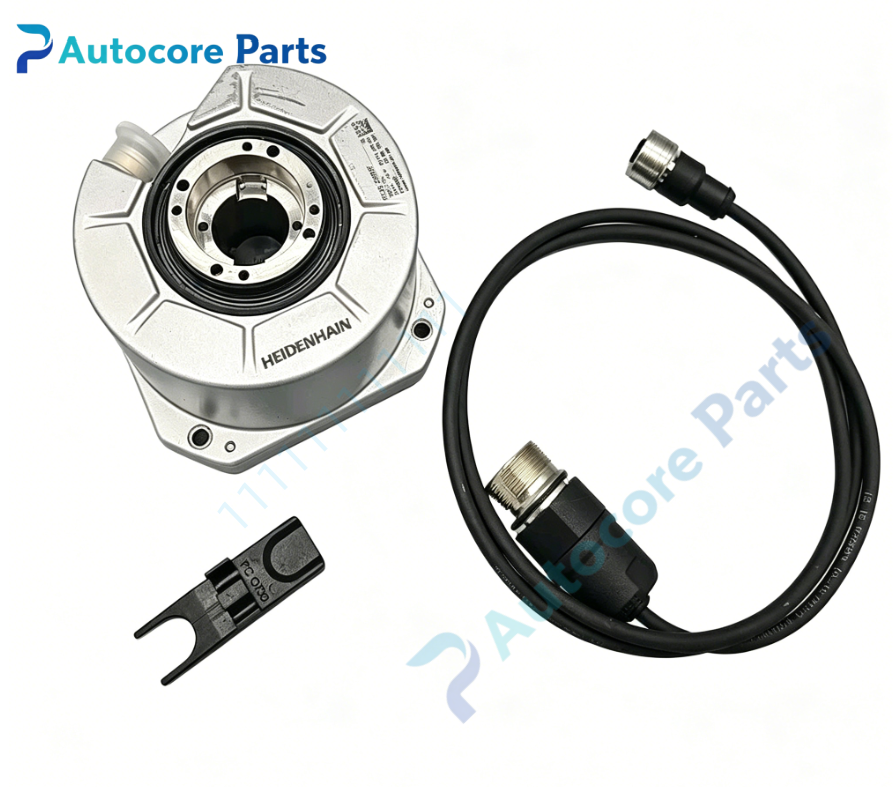

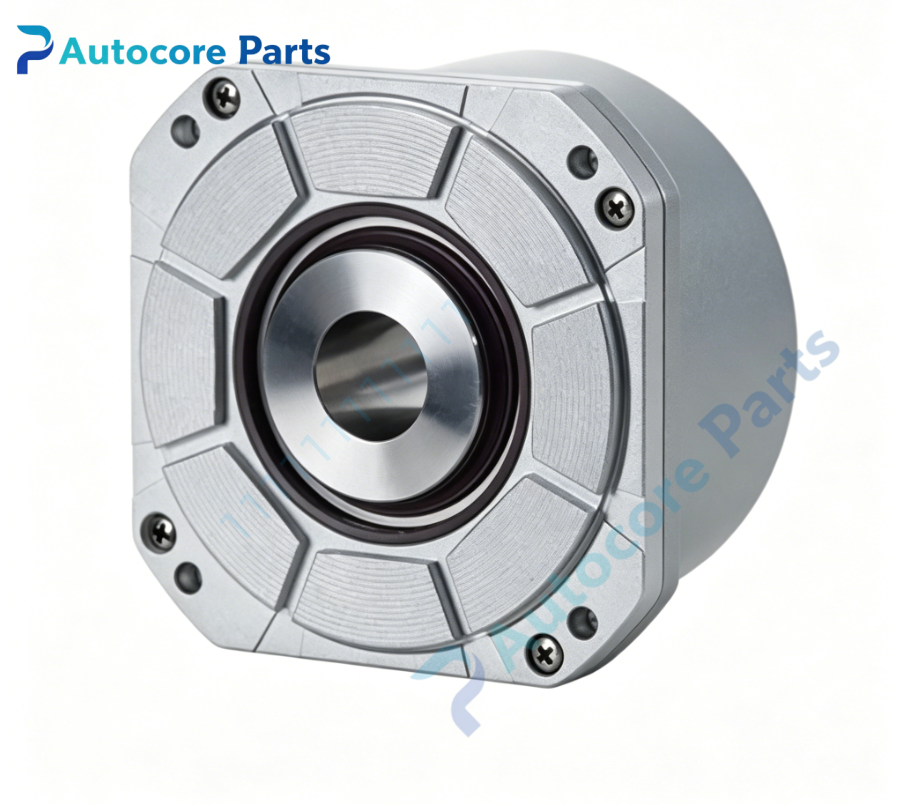

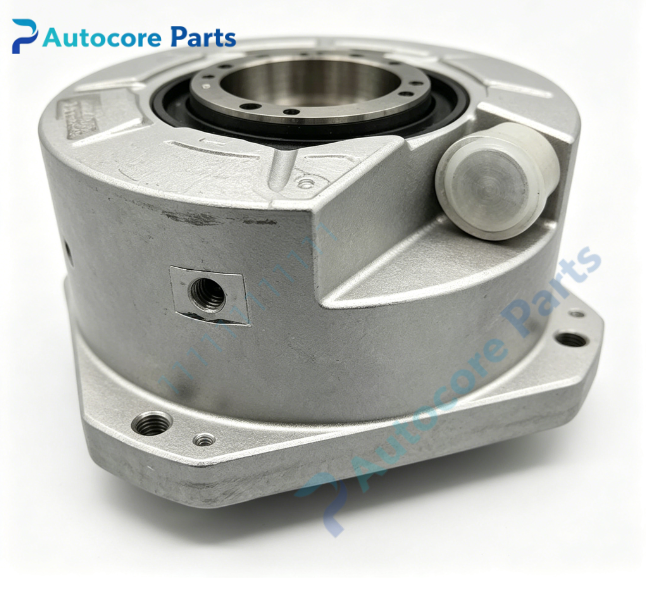

HEIDENHAIN RCN2390F Angle Encoder

Technical Specifications

Model： RCN2390F, ID.Nr.751363-01

Brand： HEIDENHAIN

Product Type: Hollow-shaft absolute angle encoder for rotary / swivel axis

Module Feature:

Function: HEIDENHAIN RCN2390F absolute angle encoder. It measures high-resolution angular position and rotation speed of rotary axis, outputs absolute serial data via EnDat22 interface. No reference homing required after power cycle. Used on heavy horizontal boring mills and 5-axis machining centers for closed-loop rotary axis positioning.

Measuring principle: Absolute optical scanning Interface: EnDat 22 Hollow shaft design for direct mounting Onboard components: Metallic grating ring, optical scanning assembly, precision bearing, metal housing, M23 flange connector

LED indicators: POWER, COM, FAULT diagnostic lights

Hardware self-diagnosis: Encoder communication check, signal amplitude monitoring, temperature monitoring

Programming software: HEIDENHAIN diagnostic software for encoder status and parameter reading

Electrical Parameters

Supply voltage: 3.6V ~14V DC

Power consumption: Max 3.2W

Mechanical & Structure:

Mounting: Hollow shaft fitted directly on rotary axis Protection class: IP64 (housing)

Environmental:

Operating temperature: 0℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: HEIDENHAIN high precision absolute angle encoder

System compatibility

Compatibility description: RCN2390F belongs to HEIDENHAIN RCN series angle encoder family, EnDat22 interface. Compatible with HEIDENHAIN drive system and Fives Giddings & Lewis PIC900 CNC system for heavy boring mill rotary axis.

Function

Function description: RCN2390F is absolute angle encoder manufactured by HEIDENHAIN. Hollow shaft design allows direct mounting on rotary table axis. It delivers absolute angular position data through EnDat22 serial bus, CNC can read exact angle position immediately after power-up without homing procedure. Rugged metal housing protects optical components from vibration, coolant mist and metal chips. It is high precision rotary axis position measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder control power. Install encoder onto rotary hollow shaft, fix axial and radial positioning. Connect shielded encoder signal cable to CNC or drive EnDat interface. Restore power, verify POWER and COM LED indicators, run encoder diagnostic and check absolute angle reading.

Interface

Interface list: M23 multi-pin flange connector, power and EnDat signal terminals,on-board POWER / COM / FAULT LED indicators for HEIDENHAIN RCN2390F 751363-01.

Diagnostic

Troubleshooting: No encoder communication: Check encoder supply voltage, cable breakage or connector pin damage. FAULT LED lit: Low signal amplitude, communication loss or mechanical mounting misalignment. Rotary axis position error: Vibration, shaft runout or optical component contamination.

Product Brief

Brief description: 751363-01 HEIDENHAIN RCN2390F absolute hollow-shaft angle encoder with EnDat22 interface,provides direct absolute angular position reading for CNC rotary table axis on heavy CNC boring mills,high precision rotary encoder spare.
