GE IS420ESWBH3A Ethernet Switch Module

Technical SpecificationsModel：IS420ESWBH3A Brand：GE (GE Vernova) Product Type: Mark VIe IONet industrial rack mount Ethernet switch module for distributed turbine control system

Module Feature:Function: Real-time IONet network switching for Mark VIe DCS,transmit high-speed control and diagnostic data between controllers, I/O modules and supervisory nodes 16 × 10/100Base-TX RJ45 copper ports, optional fiber uplink ports IEEE802.3 /802.3u compliant, auto negotiation, full/half duplex support RSTP rapid spanning tree protocol for network redundancy Dual redundant 24VDC power input Built-in hardware fault detection and link status LED indicators DIN rail or panel mount structure High EMC immunity for power plant harsh environment

Electrical Parameters:Power Input:24VDC redundant power supply Data Rate:10/100 Mbps auto negotiation MAC address table:4K entries, 256KB packet buffer

Mechanical & Structure:Mounting: DIN rail / panel mount Protection class:IP30 Weight:0.8kg

Environmental:Operating temperature:-40℃ ~ +70℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibilityIS420ESWBH3A belongs to GE Mark VIe DCS control family. Works with Mark VIe controller, I/O modules and turbine safety control system. Widely applied on gas / steam turbine power generation control system.

Function

IS420ESWBH3A is IONet industrial ethernet switch manufactured by GE Vernova. It provides deterministic real-time network communication backbone for Mark VIe distributed control system. It exchanges critical control commands, process data and system diagnostic information between turbine controller and field I/O modules. Redundant power and RSTP protocol improve network reliability to avoid single point failure in power plant control network. LED indicators show port link status and module health condition.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all control cabinet power. Fix IS420ESWBH3A on DIN rail or panel bracket. Connect redundant 24VDC power supply and RJ45 network cables. Configure network parameters according to Mark VIe system manual. Power on and verify link status and data communication.

Interface

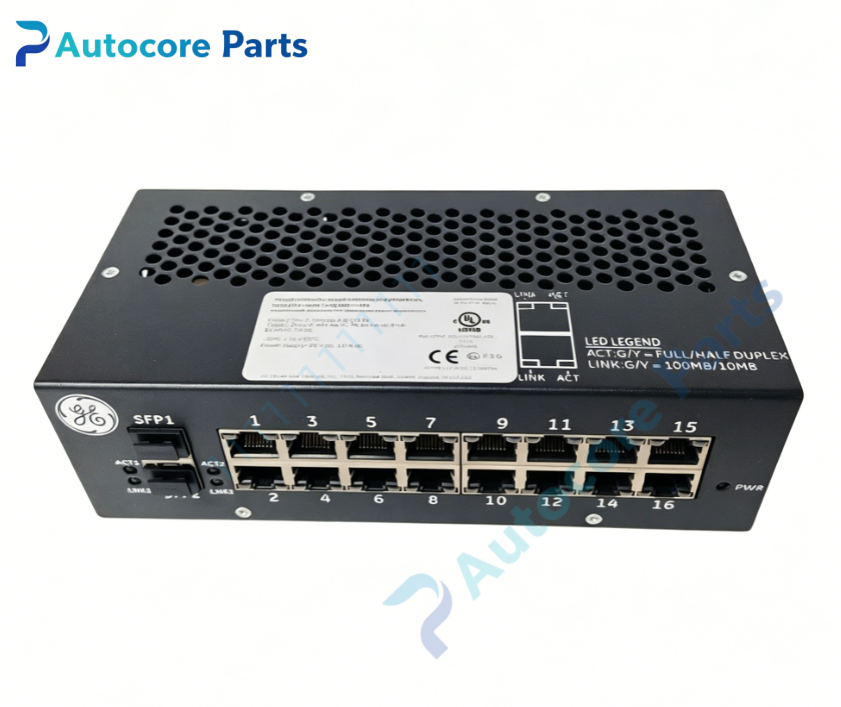

Redundant 24VDC power terminal,16pcs RJ45 10/100 copper ports,fiber uplink port,link and fault status LED for GE IS420ESWBH3A.

Feature

Original GE IS420ESWBH3A Mark VIe IONet switch,redundant DC power,RSTP network redundancy,industrial wide temperature design,per-port link LED indicators,high anti-EMI performance,UL & CE certified. This spare unit is used for power plant Mark VIe turbine DCS network maintenance and hardware replacement.

Diagnostic

No link:Check 24VDC power supply, cable continuity and RJ45 connector. Intermittent communication:Inspect cable shielding, cabinet grounding and network storm. Module fault alarm:Troubleshoot power loss or port short-circuit.

Product Brief

IS420ESWBH3A is GE Vernova legacy Mark VIe DCS IONet ethernet switch module,provides real-time redundant network communication for gas/steam turbine distributed control system,discontinued industrial spare unit.
