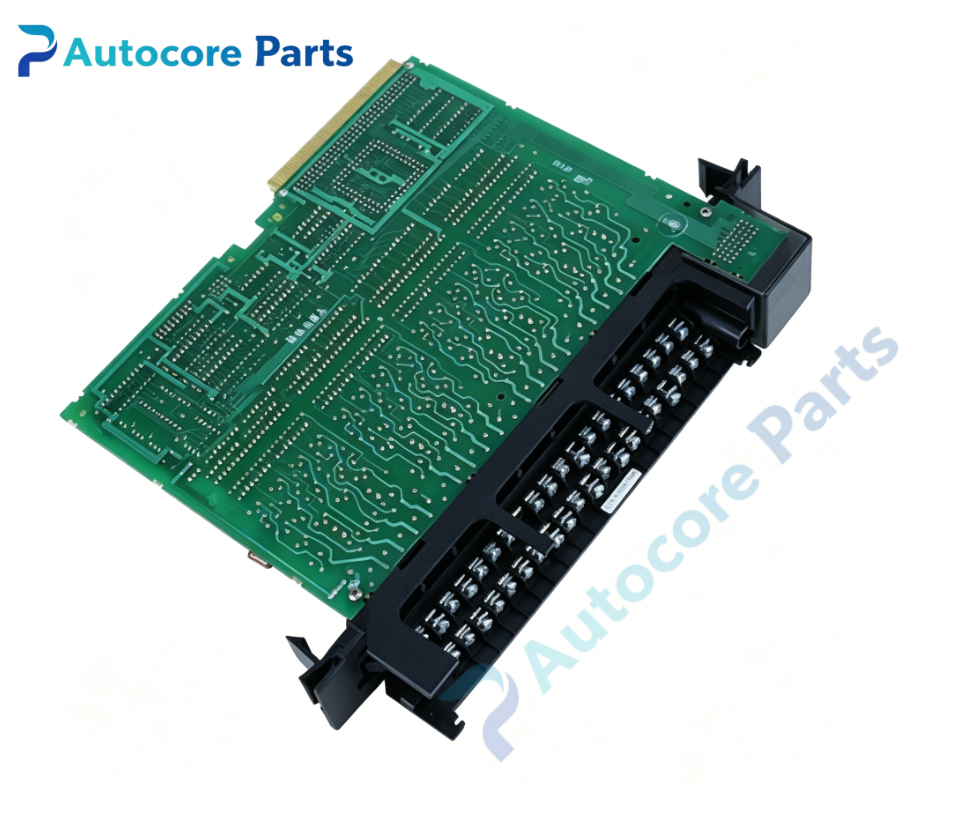

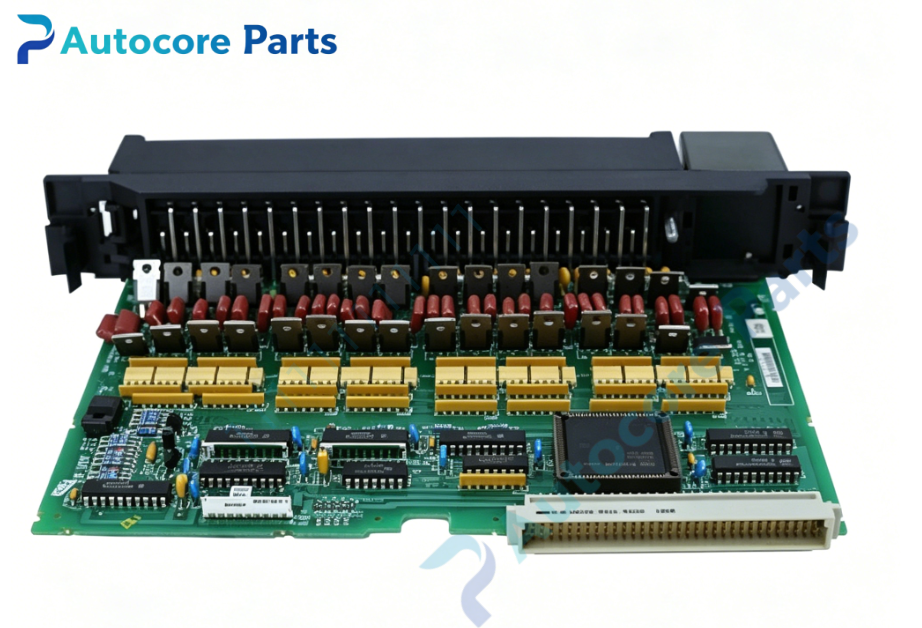

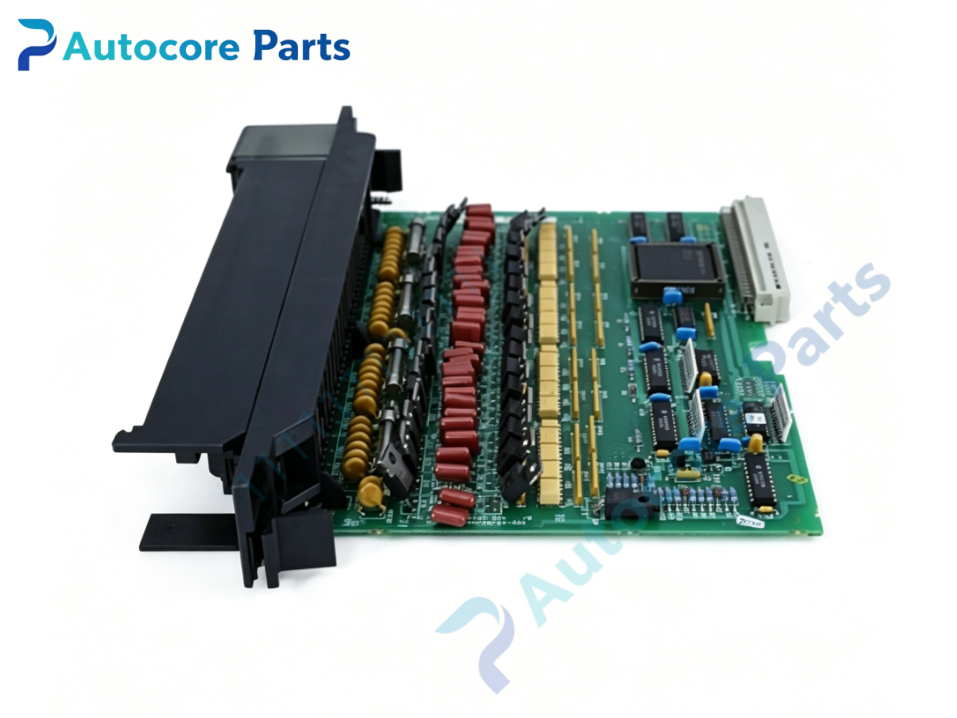

GE Fanuc IC697MDL350F Discrete Output Module

Technical SpecificationsModel：IC697MDL350F Brand：GE Fanuc Product Type: Single-slot plug-in 16-channel relay discrete output module for Series90-70 PLC rack

Module Feature:Channel:16 isolated relay output points Contact type:Form A normally open relay contacts Load voltage range:5~120VDC / 5~240VAC Max contact rating:2A per channel Group isolation:Each 8 channels form one isolated group,two groups total LED per channel:Individual status LED for each output channel Backplane bus communication with Series90-70 CPU Built-in circuit overcurrent and coil fault diagnostic Single slot VME form factor Suitable for driving contactors, solenoid valves, alarms and auxiliary interlock circuits

Electrical ParametersBackplane power:+5VDC,0.4A power consumption Relay coil supply sourced from PLC backplane Field load power is external independent power supply

Mechanical & Structure:Mounting:Plug-in installation into Series90-70 rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC697MDL350F belongs to GE Fanuc Series90-70 PLC family. Compatible with Series90-70 CPU, backplane, power supply, analog and other discrete I/O modules. Widely used for power plant, chemical, manufacturing and water treatment interlock control.

Function

IC697MDL350F is 16-channel relay output module manufactured by GE Fanuc. It receives on/off commands from PLC CPU via backplane bus and drives built-in relays to switch external field loads. Each channel has isolated relay contact to separate PLC control circuit and field power circuit. Channel LED indicates relay on/off status. The module supports interlock, valve, contactor and alarm output in industrial process control.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off rack power and field load power. Insert IC697MDL350F module into vacant rack slot and lock retention latch. Connect external field load wiring to terminal block. Power on rack and field circuit, download PLC program and test each channel output action.

Interface

Series90-70 backplane gold-edge connector,field relay output terminal block,per-channel status LED indicators for GE Fanuc IC697MDL350F.

Feature

Original GE Fanuc IC697MDL350F Series90-70 relay output module,16 isolated NO relay contacts,2A per channel rating,two isolated groups,individual channel LED indicators,wide AC/DC load voltage support,UL & CE certified. This spare unit is used for legacy Series90-70 industrial PLC discrete output system maintenance and hardware replacement.

Diagnostic

No output action:Check backplane power,PLC logic command and field load power. LED lit but no contact switching:Inspect relay contact burnout or wiring open circuit. Intermittent output:Check terminal screw tightness and contact aging.

Product Brief

IC697MDL350F is GE Fanuc Series90-70 legacy 16-channel isolated relay discrete output module,for switching solenoid valves,contactors and alarm devices,discontinued rack I/O spare card.
