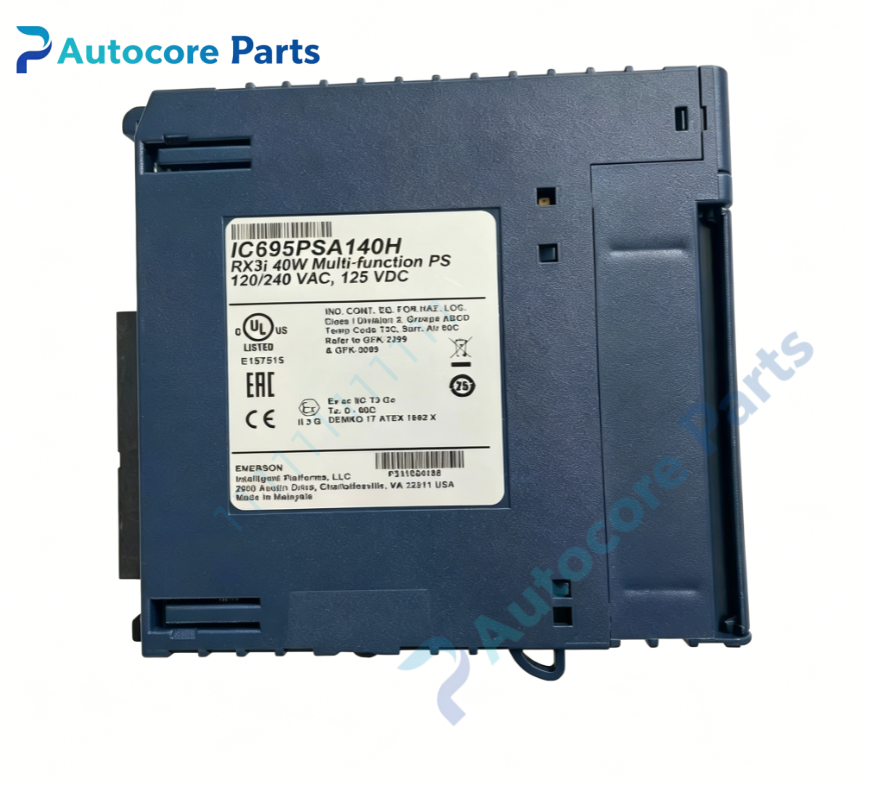

GE Fanuc IC695PSA140 Multi-Purpose Power Supply Module

Technical SpecificationsModel：IC695PSA140 Brand：GE Fanuc Product Type: 2-slot plug-in multi-purpose power supply module for PACSystems RX3i universal backplane

Module Feature:Function: Convert wide range AC or DC input into multi-rail regulated DC power for RX3i backplane, power CPU, I/O and communication modules. Support load sharing and redundant power configuration for high availability system. Input range:85~264VAC or 100~300VDC Rated total output power:40W Output rails:+5.1VDC, +3.3VDC, +24VDC relay auxiliary power Isolation:1500Vac isolation between input side and PLC backplane Built-in protection:overload, over-temperature, overvoltage, short-circuit protection LED indicators:POWER, FAULT, OVERTEMP, OVERLOAD status lights Front panel power on/off switch, terminal block accept 14~22AWG wire Up to 4 pcs IC695PSA140 modules can work together for load sharing Hardware self-diagnosis for internal power circuit and thermal monitoring Occupies 2 slots on RX3i universal backplane

Electrical ParametersMax input power consumption:70W Hold-up time:20ms at rated input voltage

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane, occupies 2 slots Protection class:IP20 rear housing Weight:0.82kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695PSA140 belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i CPU, analog/discrete I/O modules and communication cards. Widely used in power plant, chemical, oil & gas and critical factory automation systems requiring redundant power supply.

FunctionIC695PSA140 is high-reliability multi-purpose power supply for RX3i PACSystems. It supplies stable multi-rail DC power to the RX3i backplane. It supports load sharing and redundant hot standby configuration, if one power supply fails, the remaining units continue to power the rack without PLC shutdown. Built-in overload and overtemperature protection protect the whole rack hardware. Front LEDs show power status and fault alarm for fast field maintenance.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off AC/DC input power. Insert IC695PSA140 module into RX3i backplane (occupy two consecutive slots) and lock retainer. Connect input power and ground wire to front terminal block. If redundant configuration, set load sharing wiring. Restore power and verify POWER LED normal.

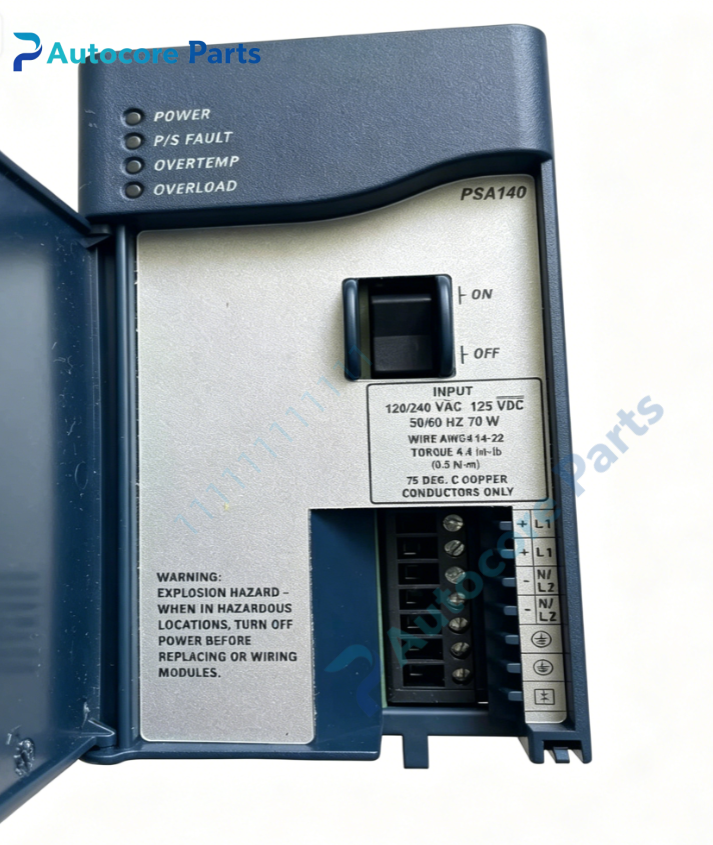

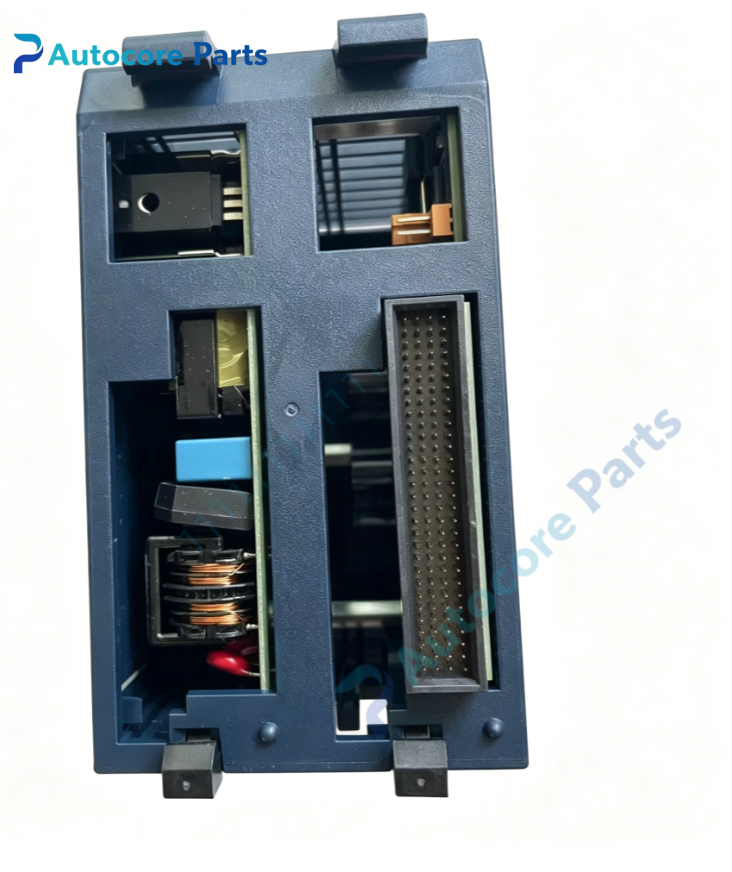

InterfaceRX3i backplane gold-edge connector,AC/DC input terminal block,power switch,4 status LED indicators for GE Fanuc IC695PSA140.

DiagnosticPOWER LED off:Check AC/DC input source and terminal wiring. Overtemp LED on:Inspect cabinet ventilation,ambient temperature and heat dissipation. Overload / Fault LED active:Total rack power consumption exceeds rating or short circuit on backplane.

Product BriefIC695PSA140 is GE Fanuc legacy PACSystems RX3i 40W multi-purpose AC/DC power supply module,supports load sharing and redundant power for critical automation control racks,discontinued rack power spare card.
