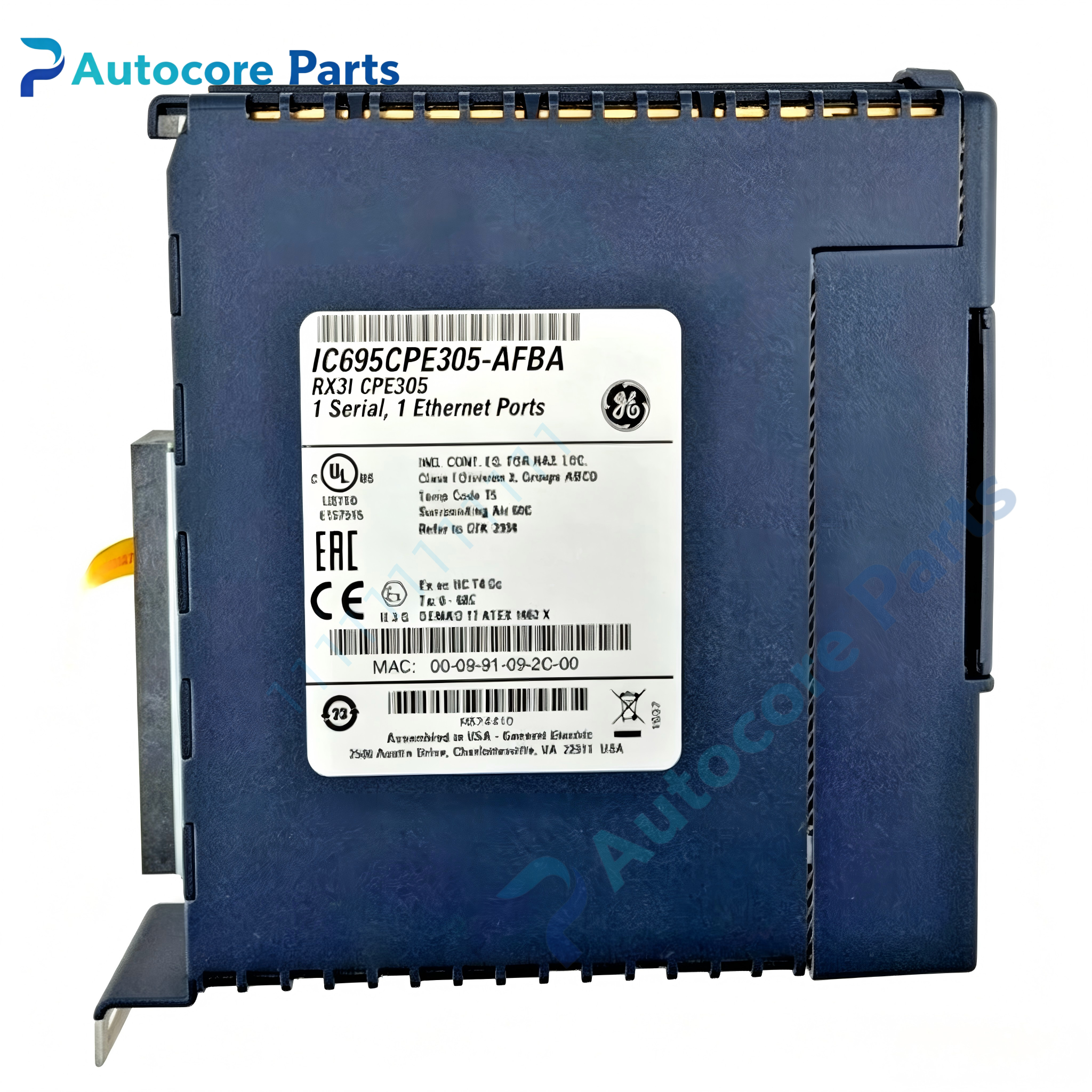

GE Fanuc IC695CPE305 CPU Module

Technical SpecificationsModel：IC695CPE305 Brand：GE Fanuc Product Type: PACSystems RX3i rack-mounted central processing unit for industrial PLC control system

Module Feature:Processor:1.0GHz microprocessor, support floating-point arithmetic Memory:5MB non-volatile flash user memory, battery-backed memory for data retention I/O mapping:32K discrete I/O bits, up to 32K analog I/O words Ports:1×10/100Mbps Ethernet port,1×RS232 COM1,1×RS485 COM2 Communication Protocols:Modbus TCP, Modbus RTU, SNP, Serial I/O Programming languages:Ladder Diagram, Structured Text, Function Block Diagram, C language Support up to 8 local racks, maximum 512 program blocks Real-time clock, battery backup for timekeeping and data retention LED status indicators for run, fault, power and communication Dual backplane bus: RX3i PCI bus and legacy 90-30 serial backplane Built-in hardware diagnostic function for fault detection

Electrical Parameters:Power supply:+3.3VDC, +5VDC, 24VDC Energy Pack accessory Boolean execution speed:0.08ms per 1000 boolean instructions Ethernet rate:10/100 Mbps auto negotiation

Mechanical & Structure:Mounting:RX3i backplane plug-in module Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC695CPE305 belongs to GE Fanuc PACSystems RX3i PLC family. Compatible with RX3i backplane, digital/analog I/O modules, power supplies and communication modules. Widely used in manufacturing, power plant, water treatment and general industrial automation control.

Function

IC695CPE305 is main CPU controller of PACSystems RX3i PLC system. It executes user control logic program, processes discrete and analog I/O signals, handles motion and sequence control tasks. Ethernet and serial ports realize data exchange with HMI, SCADA and field devices. Built-in diagnostic circuit monitors system operation and reports faults via LED indicators. RTC keeps accurate system time for data logging and event recording.

Installation

Follow lockout/tagout safety procedure before installation. Cut off rack power. Insert IC695CPE305 module into RX3i backplane slot and lock retention latch. Install energy pack if required. Connect Ethernet and serial cables. Download PLC program and verify I/O mapping and communication after power-on.

Interface

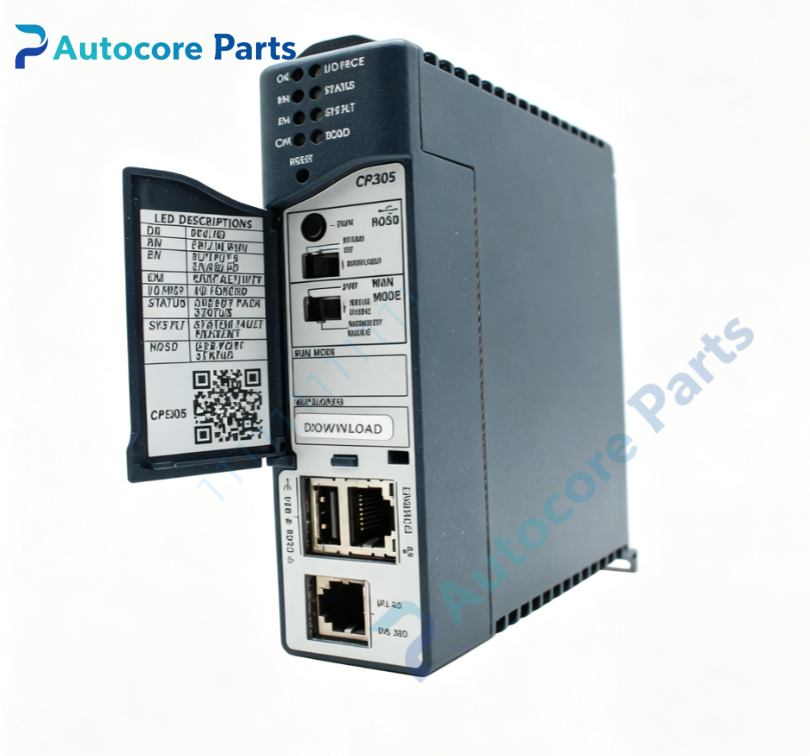

10/100 Ethernet port, RS232 COM1, RS485 COM2, backplane gold edge connector, status LED indicators for GE Fanuc IC695CPE305.

Feature

Original GE Fanuc IC695CPE305 RX3i CPU module,1.0GHz processor,5MB flash storage,multi-port communication,real-time clock with battery backup,rich programming support,built-in hardware diagnostic,UL & CE certified. This spare unit is used for industrial PACSystems RX3i automation control system maintenance and hardware replacement.

Diagnostic

Module not running:Check rack backplane power and gold finger contact integrity. Communication failure:Verify network/serial wiring, protocol configuration and IP address. Fault LED active:Check battery status, program errors or I/O bus short circuit.

Product Brief

IC695CPE305 is GE Fanuc PACSystems RX3i PLC CPU module,with multi communication interfaces and user flash memory,for industrial sequence and process automation control,legacy spare controller.
