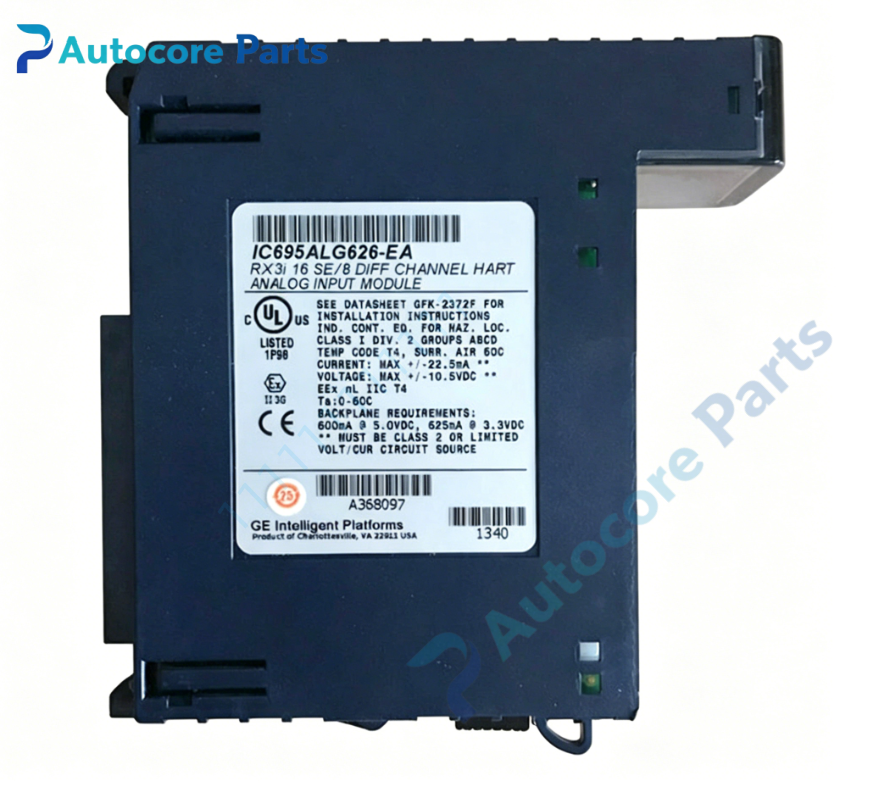

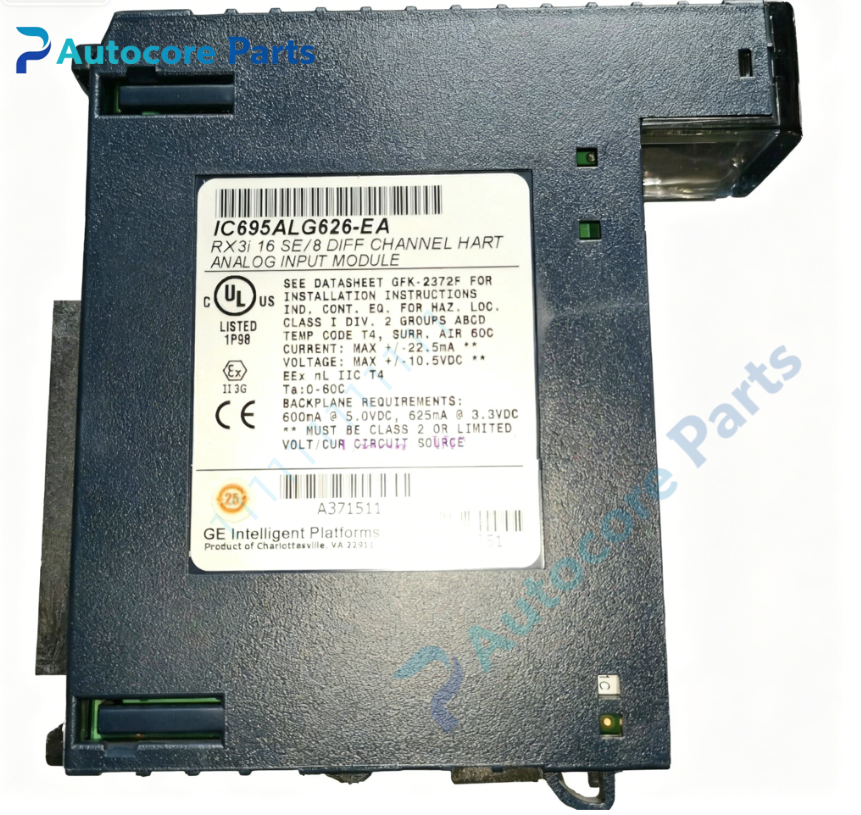

GE Fanuc IC695ALG626-EA Analog Input Module

Technical SpecificationsModel：IC695ALG626-EA Brand：GE Fanuc Product Type: Single-slot plug-in non-isolated analog input module for PACSystems RX3i universal backplane

Module Feature:Function: High-density analog input module supporting HART 5.0 protocol, converts field transmitter analog signals into digital values for RX3i CPU processing. Channels:16 single-ended or 8 differential analog input channels Signal Ranges: Current:0~20mA,4~20mA,±20mA Voltage:±10V,0~10V,±5V,0~5V,1~5V Resolution:24-bit ADC, configurable to IEEE 32-bit float or 16-bit integer Filter options:8Hz,12Hz,16Hz,40Hz,200Hz,500Hz HART function:HART 5.0 communication, HART only works under 4~20mA range LED indicators:OK, FIELD, TB diagnostic lights Hardware self-diagnosis:Open circuit detection, overrange alarm, terminal block detection, backplane bus monitoring, per-channel high/low alarm Programming software:Proficy Machine Edition EA = hardware revision variant

Electrical ParametersBackplane supply:+5V max 400mA; +3.3V max 200mA Power consumption:Max 7.35W Field transmitter power supplied externally

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot, requires IC694TBB032 / IC694TBS032 high density terminal block Weight:0.32kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695ALG626-EA belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used in chemical, petrochemical and process control systems with HART smart transmitters.

FunctionIC695ALG626-EA is high density HART analog input module for RX3i PACSystems. It supports 16 single-ended or 8 differential signal inputs. Built-in HART 5.0 modem reads extra diagnostic and parameter data from smart 4-20mA transmitters. Open wire detection and channel alarm function help locate field sensor faults rapidly.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert IC695ALG626-EA into RX3i backplane slot and lock retainer. Install matched high-density terminal block and connect shielded transmitter cables. Set signal range, filter and HART parameters in Proficy Machine Edition. Power on and verify analog reading and HART communication.

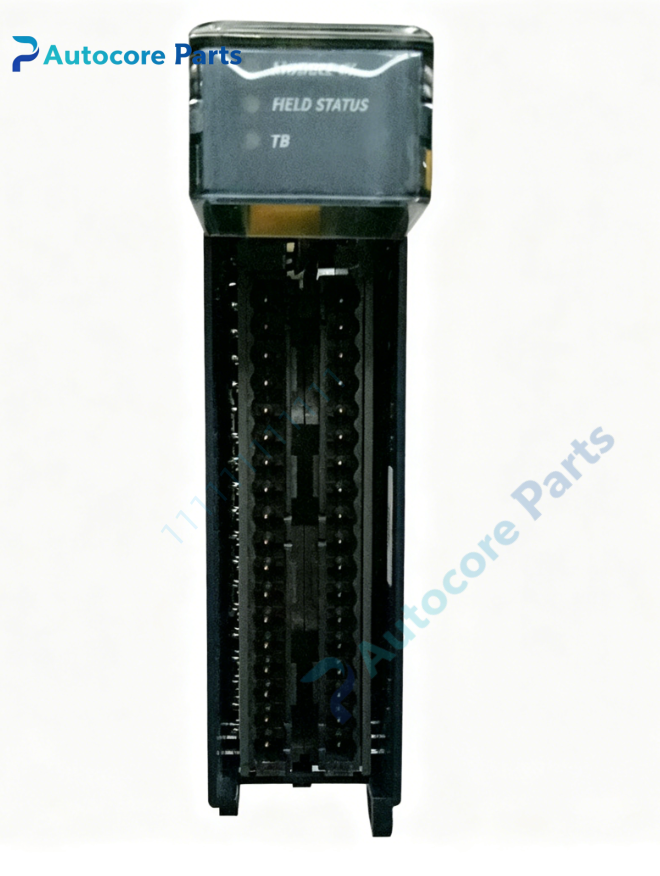

InterfaceRX3i backplane gold-edge connector,high density analog terminal block,on-board OK / FIELD / TB LED indicators for GE Fanuc IC695ALG626-EA.

DiagnosticNo analog reading:Check field 4-20mA transmitter power and wiring. HART communication failure:Channel not set to 4~20mA range or wrong cable. FIELD fault alarm:Open wire, overrange signal or terminal block loose.

Product BriefIC695ALG626-EA is GE Fanuc legacy PACSystems RX3i 16-channel HART analog input module,for collecting analog signals and HART data from smart field transmitters,discontinued industrial I/O spare card.
