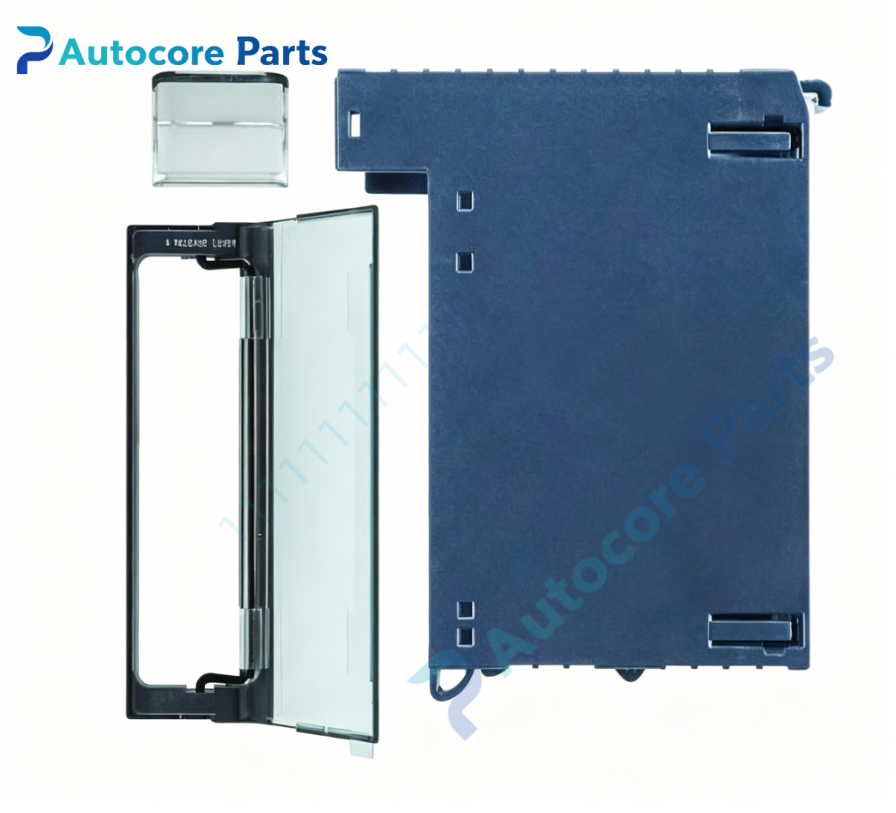

GE Fanuc IC695ALG608-AB Analog Input Module

Technical SpecificationsModel：IC695ALG608-AB Brand：GE Fanuc Product Type: Single-slot plug-in universal analog input module for PACSystems RX3i PLC rack

Module Feature:Channel:8 multi-function universal analog input channels Signal Types:Voltage, Current, RTD, Thermocouple; each channel can be individually configured Resolution:16-bit A/D conversion Isolation:Channel-group isolation, protection against ground loop interference Sampling:Configurable scan rate for each channel LED indicators:Module OK, channel fault indicators Support hot-swap under qualified system configuration Hardware self-diagnosis:over-range detection, open wire detection, module internal error Backplane bus communication with RX3i PACSystems CPU Suitable for temperature, pressure, flow transmitter signal collection

Electrical ParametersBackplane supply:+5VDC, 1.1A Signal range: Voltage: ±10V, 0~10V Current: 0~20mA,4~20mA Thermocouple: J,K,T,E,R,S,B,N RTD: Pt100, Pt1000, Cu50 Field sensor power is externally supplied

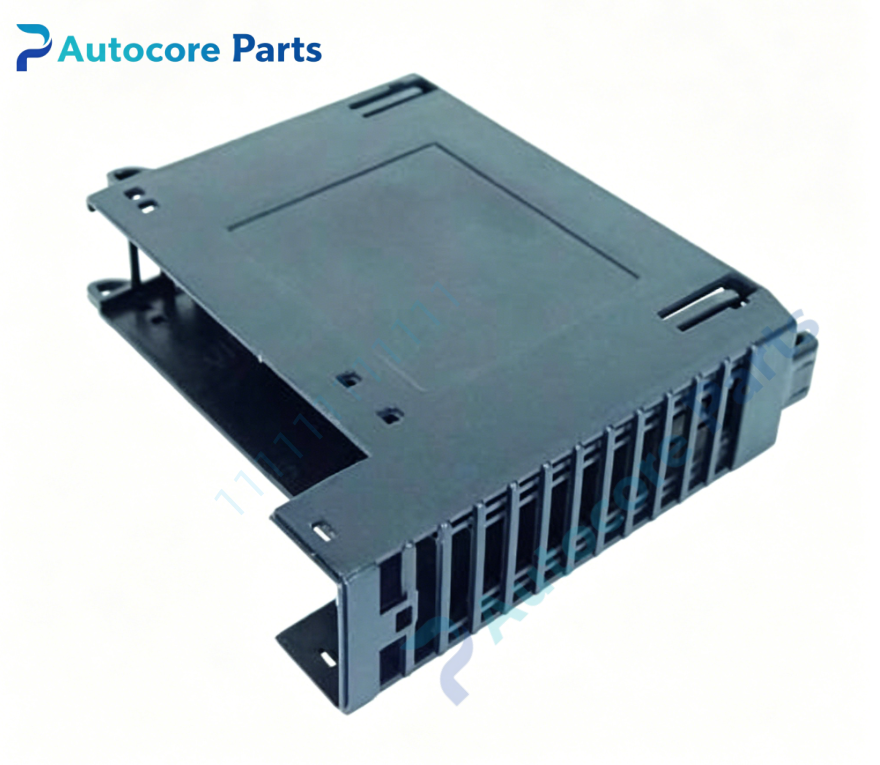

Mechanical & Structure:Mounting:Plug-in installation into RX3i backplane slot Protection class:IP20 Weight:0.75kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC695ALG608-AB belongs to GE Fanuc PACSystems RX3i control family. Compatible with RX3i CPU, backplane, power supply and other I/O modules. Widely used for power auxiliary, chemical, water treatment machinery for process variable measurement.

Function

IC695ALG608-AB is universal analog input module manufactured by GE Fanuc for RX3i PACSystem. It collects analog signals from field transmitters, temperature sensors including thermocouple and RTD. Each channel can be independently set for different signal type. 16-bit high precision A/D converts analog signal into digital value and transfers to PLC CPU via backplane bus. Open wire and over-range diagnostic help technicians quickly locate sensor or wiring faults.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off rack power and field sensor power. Insert IC695ALG608-AB module into vacant backplane slot and lock retention latch. Connect field sensor wiring to terminal block. Configure channel signal type in Proficy Machine Edition. Power on, test each channel analog reading.

Interface

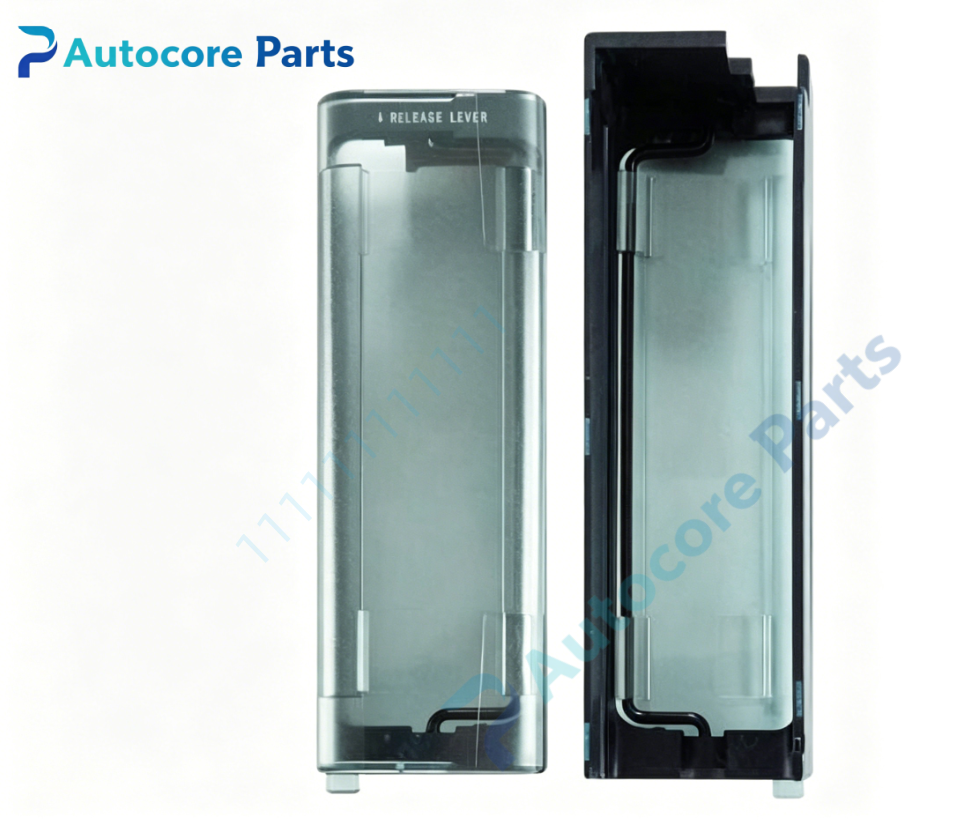

RX3i backplane gold-edge connector,field analog signal terminal block,module and channel fault LED indicators for GE Fanuc IC695ALG608-AB.

Feature

Original GE Fanuc IC695ALG608-AB RX3i universal analog input module,8 configurable multi-type channels,16-bit resolution,support thermocouple/RTD/voltage/current,open wire detection,group isolation,hot-swap capable,UL & CE certified. This spare unit is used for PACSystems RX3i PLC analog process signal acquisition maintenance and hardware replacement.

Diagnostic

No analog reading:Check backplane power and field sensor power,verify channel type configuration. Reading drift/unstable:Inspect shielding, grounding and wire resistance for RTD/TC. Channel fault alarm:Detect open circuit, short circuit or sensor damage.

Product Brief

IC695ALG608-AB is GE Fanuc legacy PACSystems RX3i 8-channel universal analog input module,supports voltage,current,RTD and thermocouple for industrial process monitoring,discontinued rack spare I/O card.
