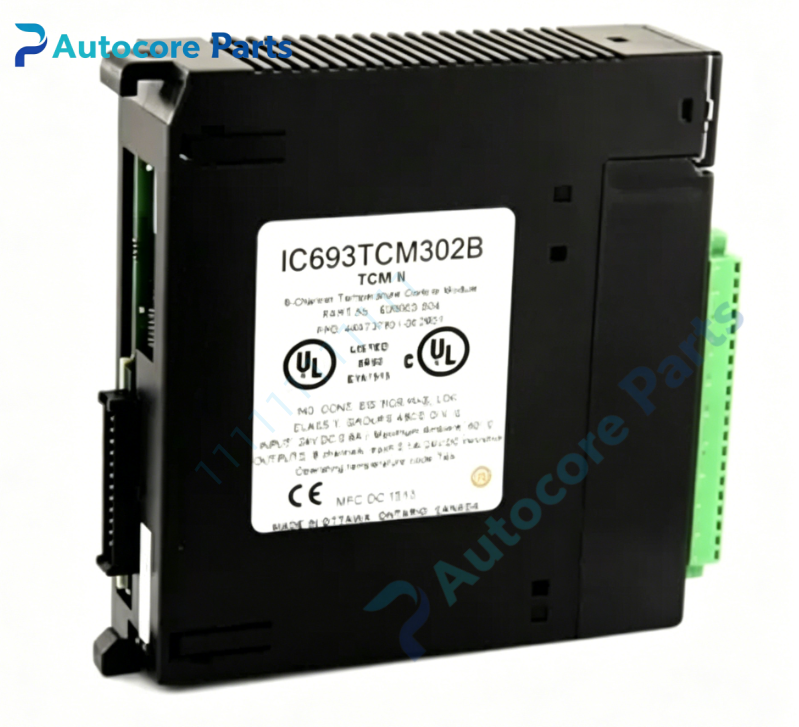

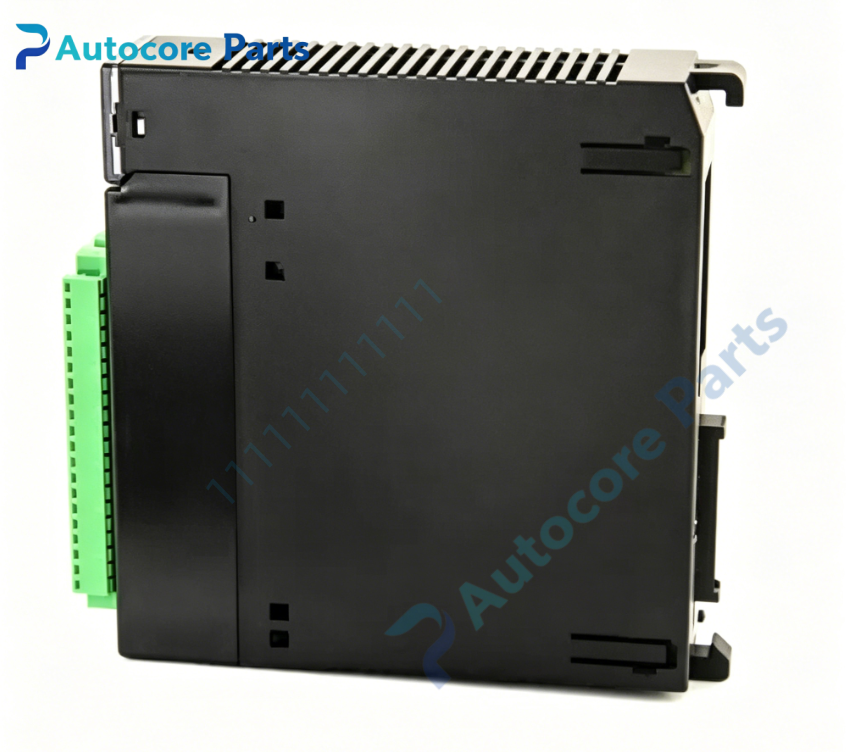

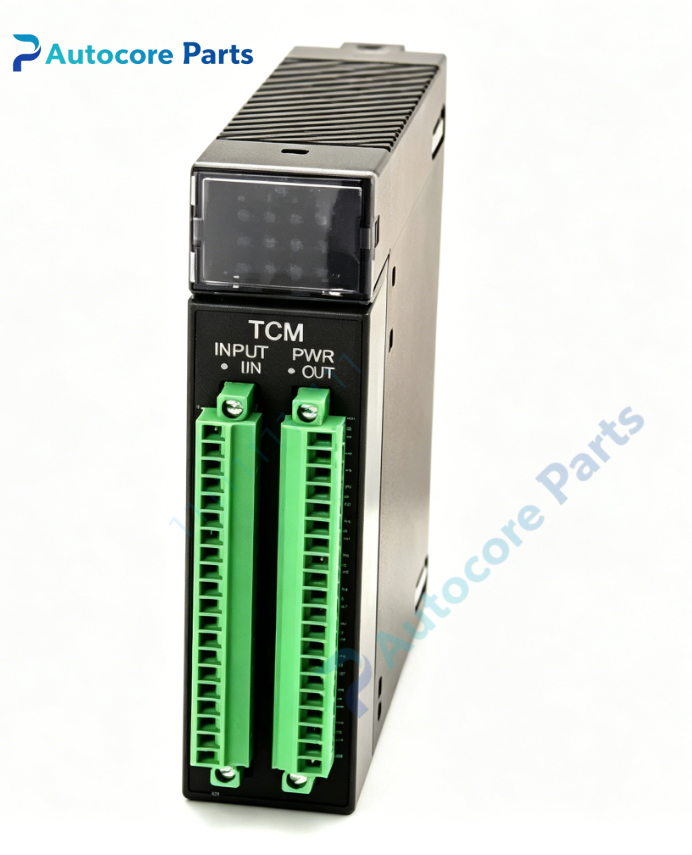

GE Fanuc IC693TCM302B Temperature Control Module

Technical SpecificationsModel：IC693TCM302B Brand：GE Fanuc Product Type: Single-slot plug-in thermocouple temperature input module for Series90-30 PLC rack

Module Feature:Function: Collect temperature signals from multiple types of thermocouple sensors, convert mV analog signal into digital temperature value for PLC processing. Channels:8 independent thermocouple input channels Supported sensor types: J, K, T, E, R, S, B thermocouple types Cold junction compensation: Built-in cold junction compensation Resolution:16-bit A/D conversion Isolation:Channel group isolation between field and PLC backplane LED indicators:OK, FAULT diagnostic lights Hardware self-diagnosis:Open wire detection, overrange detection, backplane bus monitoring Programming software:Proficy Machine Edition B = hardware revision variant

Electrical ParametersBackplane supply:+5VDC, max 220mA Power consumption:Max 1.1W

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack single slot Weight:0.33kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC693TCM302B belongs to GE Fanuc Series90-30 I/O family. Compatible with Series90-30 CPU, power supply and Series90-30 I/O modules. Widely used for furnace, heat treatment, chemical and food industry temperature monitoring applications.

FunctionIC693TCM302B is 8-channel thermocouple temperature input module. It reads millivolt signals from thermocouple probes and converts to temperature readings. Built-in cold junction compensation guarantees measurement accuracy. Open wire alarm detects broken sensor cables quickly.

InstallationFollow lockout/tagout safety procedure before installation. Insert IC693TCM302B into Series90-30 rack slot. Connect thermocouple shielded compensation cables to terminal block. Select thermocouple type in Proficy Machine Edition. Power on and verify temperature reading.

InterfaceSeries90-30 backplane gold-edge connector,temperature sensor terminal block,on-board OK / FAULT LED indicators for GE Fanuc IC693TCM302B.

DiagnosticNo temperature reading:Check thermocouple wiring, compensation cable and open circuit fault. Temperature reading drift:Improper shielding, cold junction error or wrong sensor type selected. FAULT alarm:Broken thermocouple wire or signal overrange.

Product Brief

IC693TCM302B is GE Fanuc legacy Series90-30 8-channel thermocouple temperature input module,supports multiple thermocouple types with cold junction compensation,discontinued industrial temperature I/O spare card.
