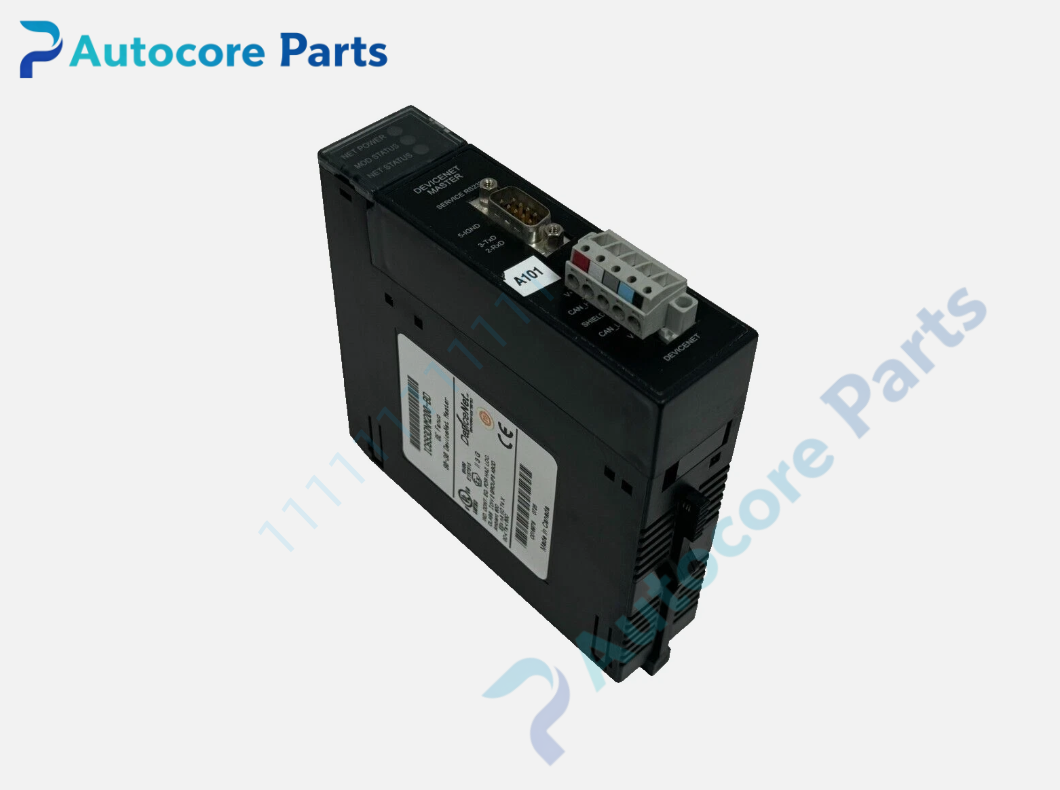

GE Fanuc IC693DNM200-BD DeviceNet Master Module

Technical SpecificationsModel：IC693DNM200-BD Brand：GE Fanuc Product Type: Single-slot plug-in DeviceNet master scanner module for Series90-30 PLC main rack

Module Feature:Function: Serve as DeviceNet bus master scanner, exchange I/O data and explicit messages with DeviceNet slave devices including servo drives, remote I/O blocks, sensors and valve modules Max slave nodes:63 nodes Baud rate:125kbps /250kbps /500kbps, manually configurable Message mode:Polled, Strobed, Change-of-State Optical isolation:1500V isolation between DeviceNet field bus and PLC backplane Ports:5-pin DeviceNet fieldbus terminal,9pin D-sub RS232 service port for configuration,diagnostic and firmware upgrade Configuration software:Proficy Machine Edition, DN-Config LED indicators:Module OK, Network status, Fault alarm indicators Single slot design, only installable in main rack, not available for remote expansion rack Hardware self-diagnosis for bus short, node offline and module internal fault Backplane bus communication with Series90-30 CPU

Electrical ParametersBackplane supply:+5VDC, power consumption 0.45A DeviceNet bus power:12~24VDC external bus power supply

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 main rack slot Protection class:IP20 Weight:0.68kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC693DNM200-BD belongs to GE Fanuc Series90-30 PLC family. Compatible with Series90-30 CPU (minimum firmware version 8.0), backplane, power supply and I/O modules. Widely used for material handling, packaging machinery, automotive equipment and factory fieldbus control system.

Function

IC693DNM200-BD is dedicated DeviceNet master scanner module manufactured by GE Fanuc. It scans all slave nodes on DeviceNet fieldbus, exchanges real-time I/O data between slave devices and Series90-30 PLC CPU. RS232 service port is used for network configuration, node diagnosis and firmware update. Built-in isolation circuit protects PLC rack from field bus surge interference. LED indicators show module running, network online and fault state.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off rack power and DeviceNet bus power. Insert IC693DNM200-BD module into vacant main rack slot and lock retention latch. Connect 5pin DeviceNet bus cable and RS232 configuration cable. Set baud rate and slave node list via DN-Config software. Power on and verify network scanning and I/O data exchange.

Interface

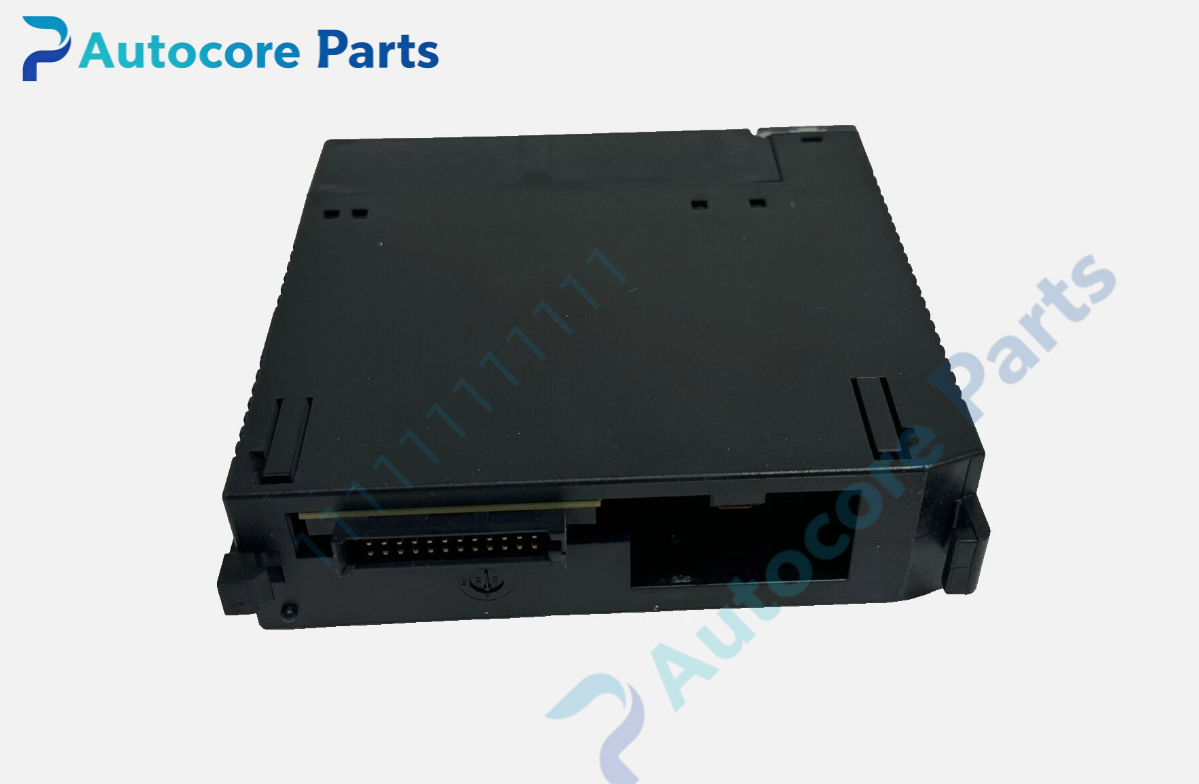

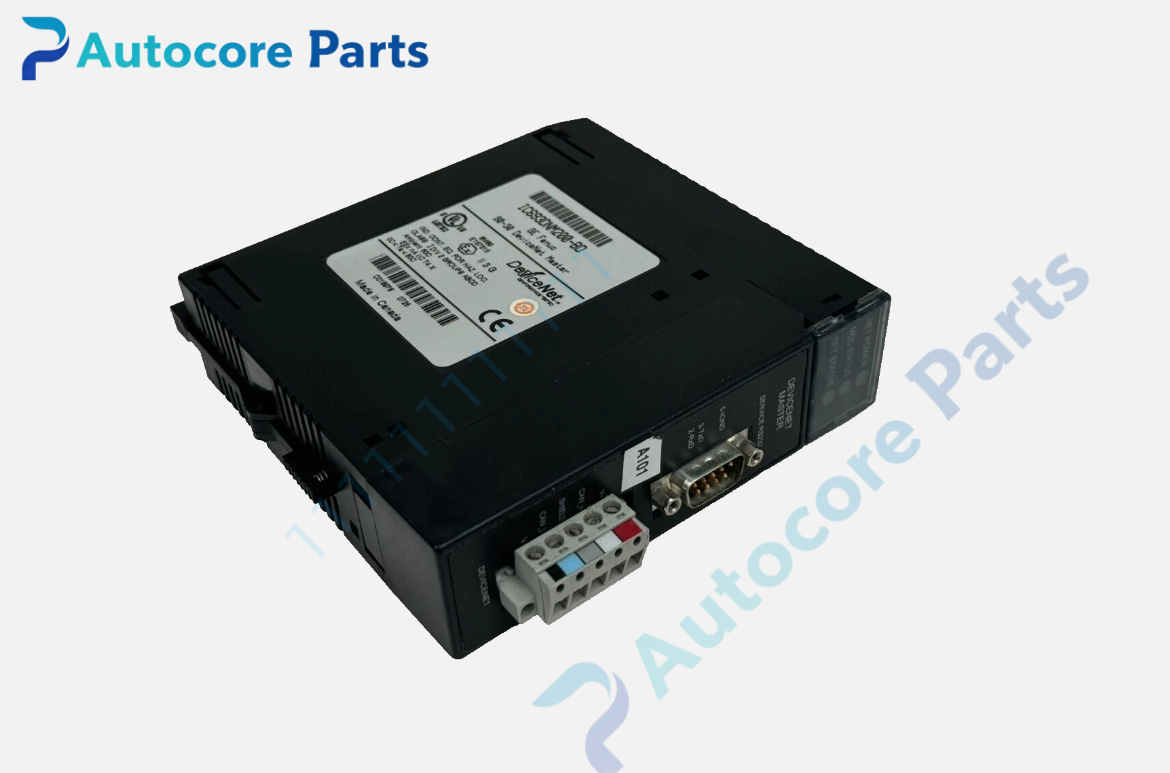

Series90-30 backplane gold-edge connector,5pin DeviceNet bus terminal,9pin D-sub RS232 service port,on-board status LED indicators for GE Fanuc IC693DNM200-BD.

Feature

Original GE Fanuc IC693DNM200-BD DeviceNet master scanner module,support up to 63 slave nodes,three standard baud rates,1500V opto-isolation,RS232 local configuration port,comprehensive network diagnostic,UL & CE certified. This spare unit is used for Series90-30 PLC DeviceNet fieldbus communication system maintenance and hardware replacement.

Diagnostic

No slave detected:Check DeviceNet 12~24V bus power,bus termination resistor and baud rate matching. Intermittent node drop:Inspect bus cable shielding, trunk line integrity and ground potential. Module fault LED lit:Troubleshoot configuration error,bus short circuit or module hardware damage.

Product Brief

IC693DNM200-BD is GE Fanuc legacy Series90-30 single-slot DeviceNet master scanner module,for connecting PLC with fieldbus drives,remote I/O and sensors,discontinued rack fieldbus spare card.
