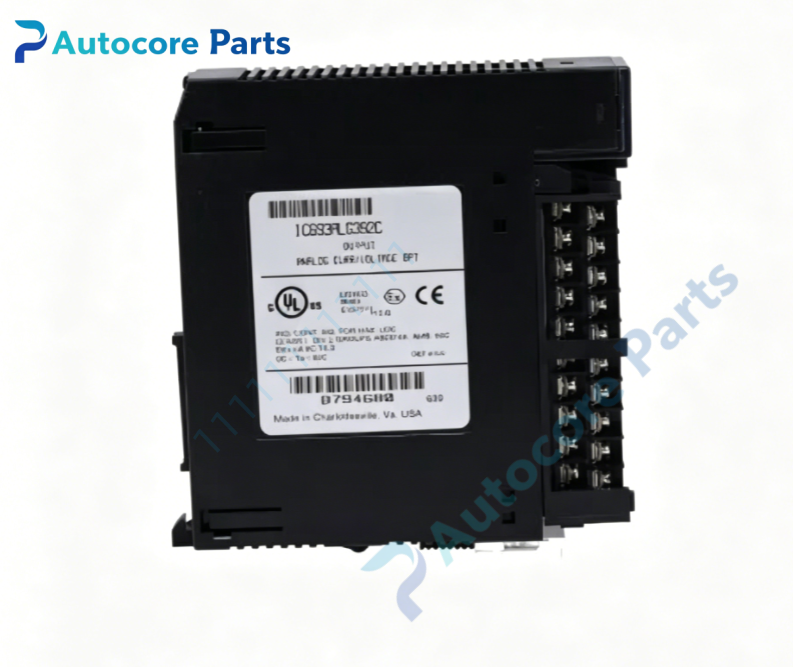

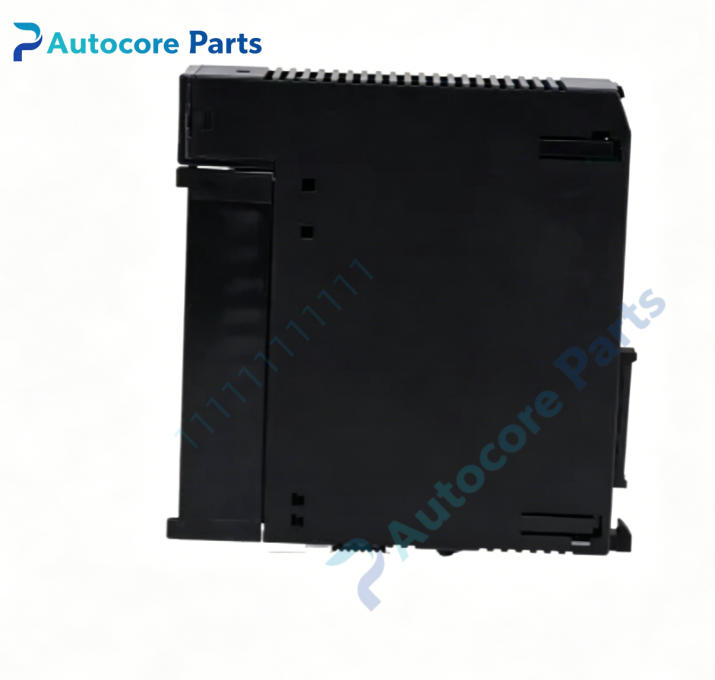

GE Fanuc IC693ALG392-BE Analog Output Module

Technical SpecificationsModel：IC693ALG392-BE Brand：GE Fanuc Product Type: Analog output module for Series 90-30 PLC rack

Module Feature:Function: Convert digital values from Series90-30 CPU to analog voltage and current signals for process valves and variable frequency drives. Channels:8 analog output channels Signal Ranges: ±10V,0~10V voltage; 0~20mA,4~20mA current Update rate:8ms for all 8 channels Isolation: Group isolation between field side and PLC backplane Load capacity: Voltage output ≥1kΩ load; Current output max 750Ω load LED indicators: OK, channel fault diagnostic lights Hardware self-diagnosis: overrange, open load, short circuit and backplane communication monitoring Programming software: Proficy Machine Edition BE = hardware revision code

Electrical ParametersBackplane supply:+5VDC, 110mA max External field power:20~30VDC, nominal 24VDC Power consumption:Max 3.8W

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack single slot Weight:0.35kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC693ALG392-BE belongs to GE Fanuc Series90-30 I/O family. Compatible with Series90-30 CPU, power supply and other Series90-30 I/O modules. Widely used for water treatment, chemical and factory process control applications.

FunctionIC693ALG392-BE is 8-channel analog output module for Series90-30 PLC. It converts digital register values into standard analog control signals. Group isolation prevents ground loop interference between field equipment and PLC. Built-in channel fault detection quickly identifies open load or short circuit wiring issues.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC693ALG392-BE into Series90-30 rack slot and lock retainer. Connect shielded control cables to terminal block. Configure signal range and failsafe values in Proficy Machine Edition. Power on and verify analog output performance.

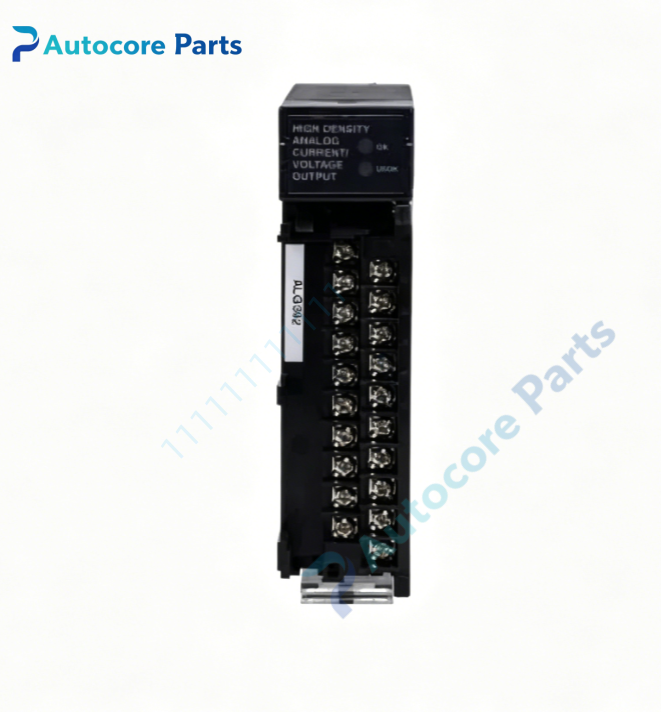

InterfaceSeries90-30 backplane gold-edge connector,field analog output terminal block,on-board OK / channel status LED indicators for GE Fanuc IC693ALG392-BE.

DiagnosticNo analog output:Check backplane power,field actuator wiring and load condition. Output signal drift:Inspect cable shielding and grounding wiring. Channel fault alarm:Open load,short circuit or overrange output fault.

Product BriefIC693ALG392-BE is GE Fanuc legacy Series90-30 8-channel analog output module,for driving process control valves and frequency converters,discontinued I/O spare card.
