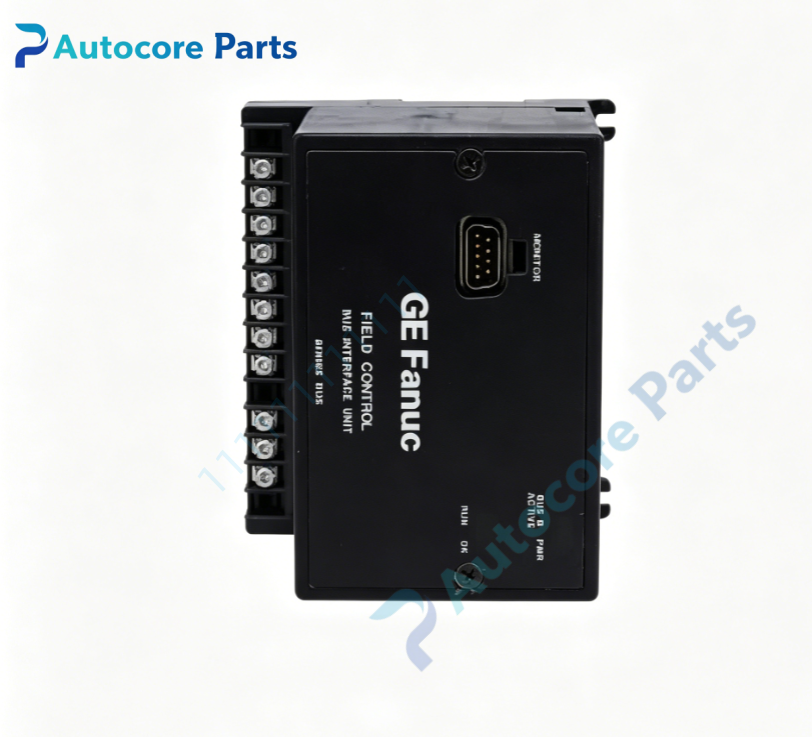

GE Fanuc IC670GBI002J Bus Interface Unit

Technical SpecificationsModel：IC670GBI002J Brand：GE Fanuc Product Type: Field Control Genius bus interface unit, station head module

Module Feature:Function: Head bus interface unit for Field Control I/O rack, connect local I/O modules and communicate with main PLC over Genius serial bus. Max local I/O modules: 8 modules per station I/O data capacity: 128 bytes input,128 bytes output Genius bus speed:153.6kbps, shielded twinaxial cable interface Backplane power supply:Output 6.5VDC to drive local I/O modules LED indicators: POWER, BUS, STATUS diagnostic lights Hardware self-diagnosis: Genius bus communication monitoring, backplane power check, module fault detection Programming software:Logicmaster, Proficy Machine Edition J = hardware revision variant

Electrical ParametersExternal power:18~30VDC, nominal 24VDC Power consumption:Max 18W Backplane output:6.5VDC @1.4A

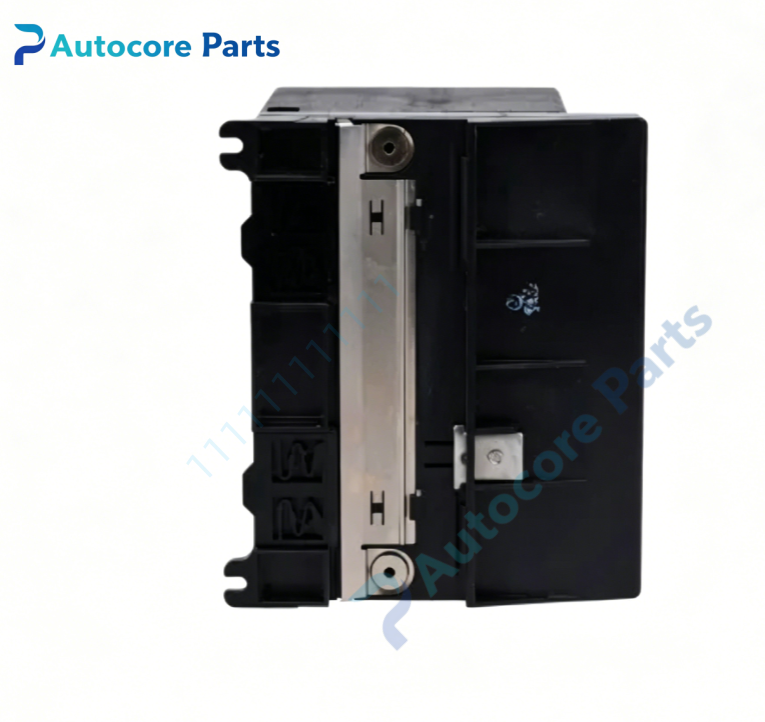

Mechanical & Structure:Mounting:DIN rail mount Weight:0.88kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC670GBI002J belongs to GE Fanuc Field Control / Genius distributed I/O family. Compatible with IC670 series I/O modules and Genius bus master controller. Widely used for process factory distributed signal acquisition and control.

FunctionIC670GBI002J is Genius bus interface head unit for Field Control system. It works as gateway between master PLC and local 8-slot I/O rack. It exchanges 128-byte input and output cyclic data over Genius bus and supplies 6.5V backplane power for I/O modules. Built-in bus diagnostics help technicians quickly locate bus communication faults.

InstallationFollow lockout/tagout safety procedure before installation. Mount module on DIN rail. Wire 24VDC external power and Genius twinaxial bus cable. Install I/O modules on the same station terminal base. Configure Genius bus address in programming software. Power on and verify bus scan and I/O data exchange.

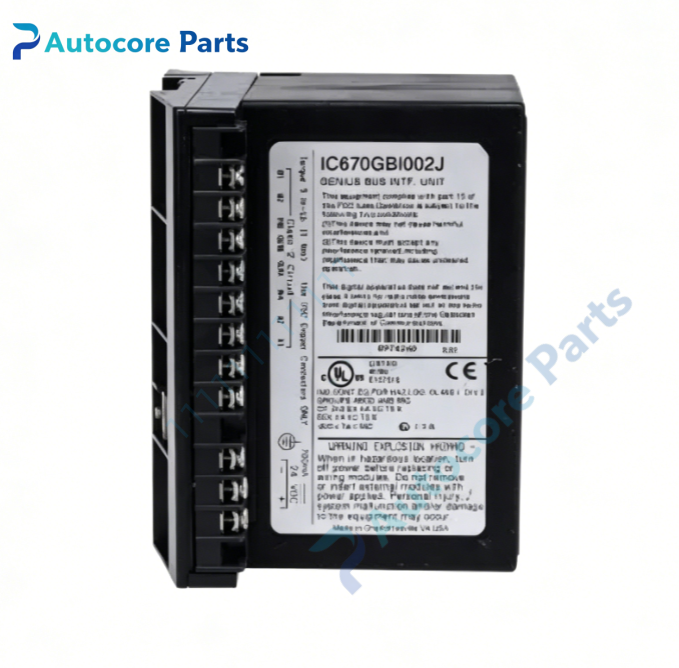

InterfaceGenius bus twinaxial connector,24VDC power terminal block,local I/O backplane,on-board POWER / BUS / STATUS LED indicators for GE Fanuc IC670GBI002J.

DiagnosticBus scan failure:Check Genius bus cable,bus terminator and bus address setting. No backplane power:Inspect 24VDC field power and module fuse condition. STATUS fault alarm:Local I/O module fault or backplane short circuit.

Product BriefIC670GBI002J is GE Fanuc legacy Field Control Genius bus interface unit,for managing up to 8 local I/O modules and communicating with PLC over Genius serial bus,discontinued I/O spare module.
