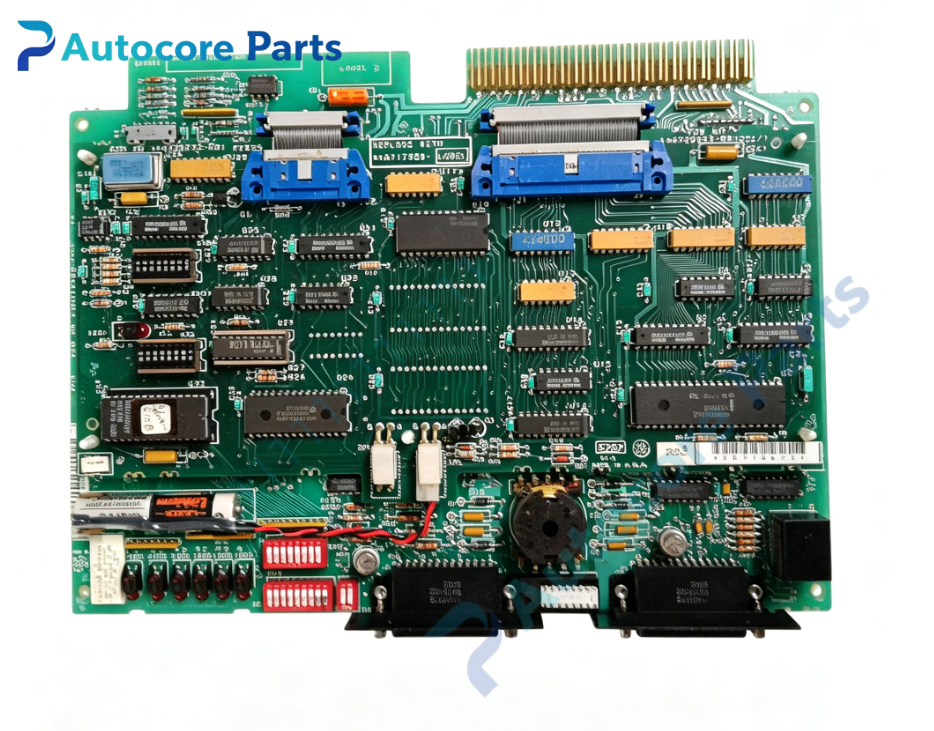

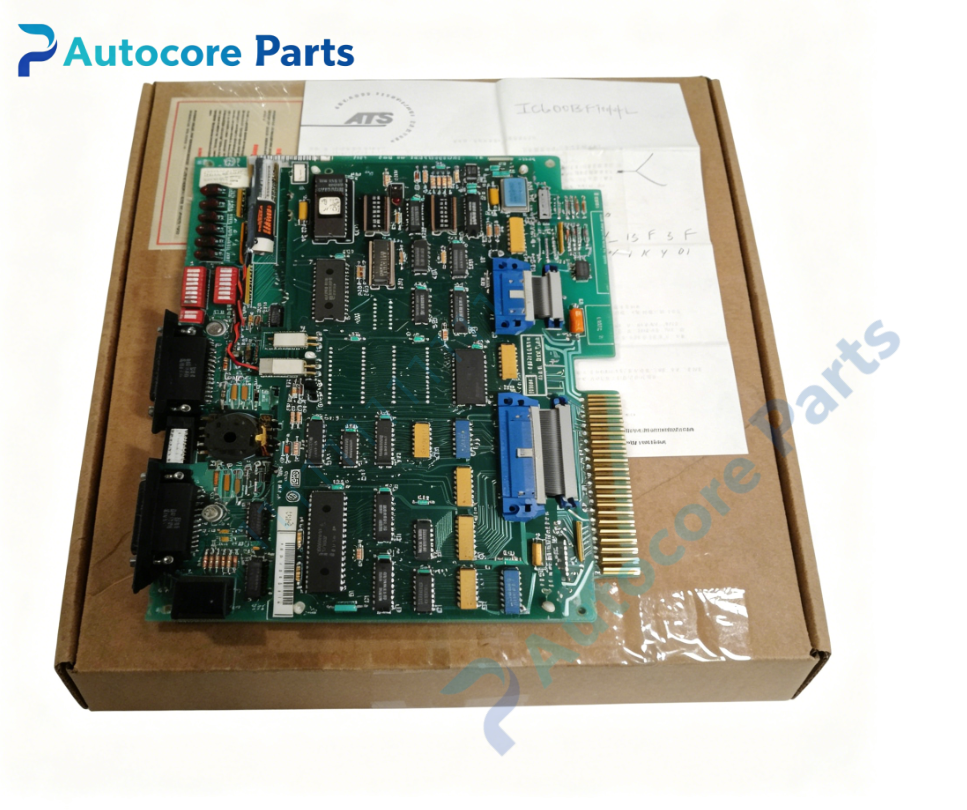

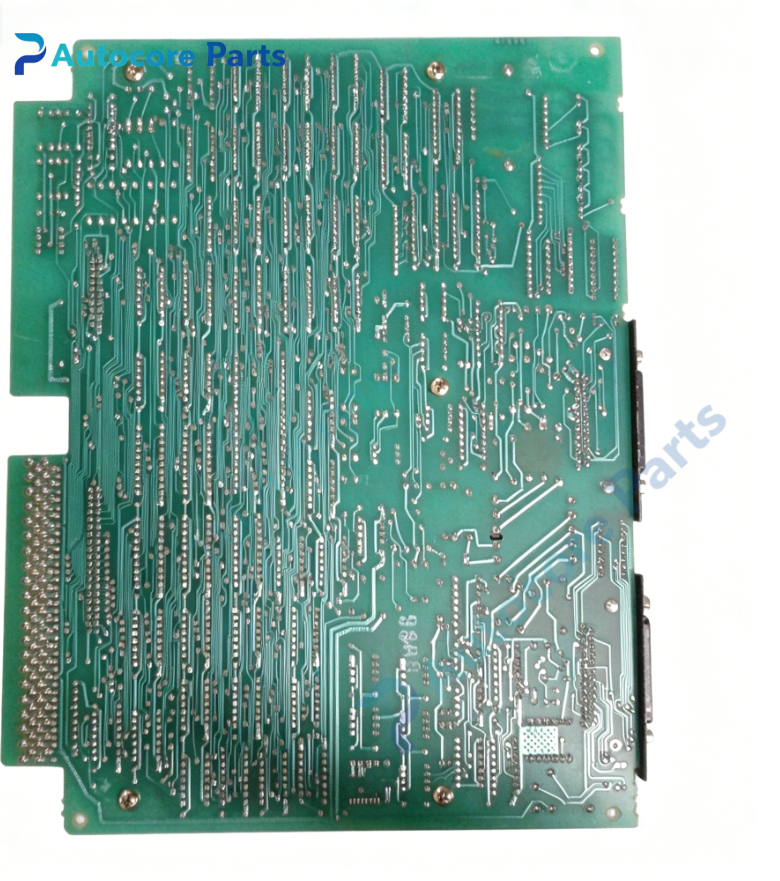

GE Fanuc IC600BF944L I/O Processor Board

Technical SpecificationsModel：IC600BF944L Brand：GE Fanuc Product Type: Single-slot plug-in I/O processor printed circuit board for Series Six PLC rack system

Module Feature:Function: Manage local rack discrete I/O data, handle backplane bus communication between Series Six CPU and field I/O modules, scan input signals and transmit output commands Dedicated I/O control logic circuit Onboard memory buffer for I/O image table storage Gold edge connector for Series Six backplane interconnection Integrated logic chips, memory ICs and supporting passive components External connector terminals for I/O signal wiring Hardware self-test circuit for board and bus fault detection Single slot rack form factor, industrial grade PCB laminate Designed for legacy Series Six PLC automation rack

Electrical Parameters:Backplane supply:+5VDC, ±12VDC Backplane bus:Series Six proprietary PLC backplane I/O scanning:Periodic cyclic I/O data refresh

Mechanical & Structure:Mounting:Plug-in installation into Series Six rack slot Protection class:IP20 Weight:0.9kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC600BF944L belongs to GE Fanuc Series Six PLC family. Compatible with Series Six rack, CPU, power supply and discrete I/O modules. Widely used in old manufacturing, power auxiliary and chemical legacy automation systems.

Function

IC600BF944L is I/O processor board manufactured by GE Fanuc for Series Six PLC. It performs cyclic scanning of rack digital input signals, updates PLC I/O image table, and sends output commands from CPU to output modules via backplane bus. It also executes board-level self-test to detect backplane communication failure or hardware fault. This board acts as the bridge between main CPU and local I/O modules.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off Series Six rack power. Insert IC600BF944L board into vacant rack slot and secure retainer. Inspect gold edge pins for oxidation and damage. Restore rack power, run system self-test and verify I/O scanning function.

Interface

Series Six backplane gold-edge connector, field I/O signal terminal connector, onboard test point terminals for GE Fanuc IC600BF944L.

Feature

Original GE Fanuc IC600BF944L Series Six I/O processor board,cyclic I/O scanning,backplane bus data exchange,onboard I/O image buffer,hardware self-test function,rugged industrial PCB,UL & CE certified. This spare unit is used for legacy Series Six PLC automation control rack maintenance and hardware replacement.

Diagnostic

No I/O scanning:Check rack +5V / ±12V power supply and backplane pin contact. I/O data loss:Inspect backplane bus continuity and module seating. Board self-test failure:Troubleshoot component aging or PCB track damage.

Product Brief

IC600BF944L is GE Fanuc legacy Series Six PLC I/O processor circuit board,responsible for cyclic discrete I/O scanning and backplane communication between CPU and I/O modules,discontinued rack spare card.
