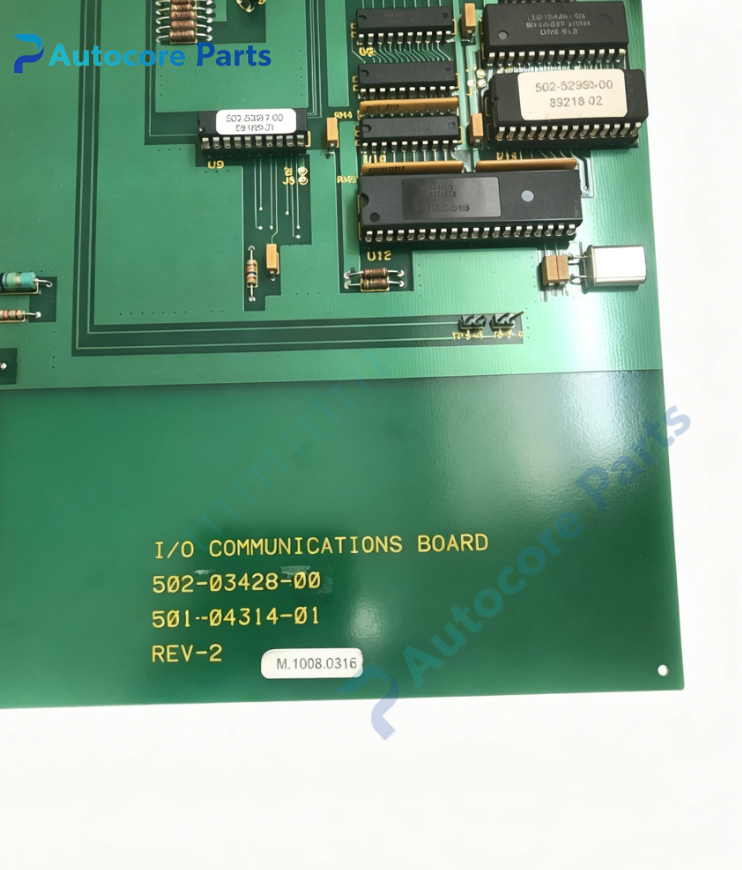

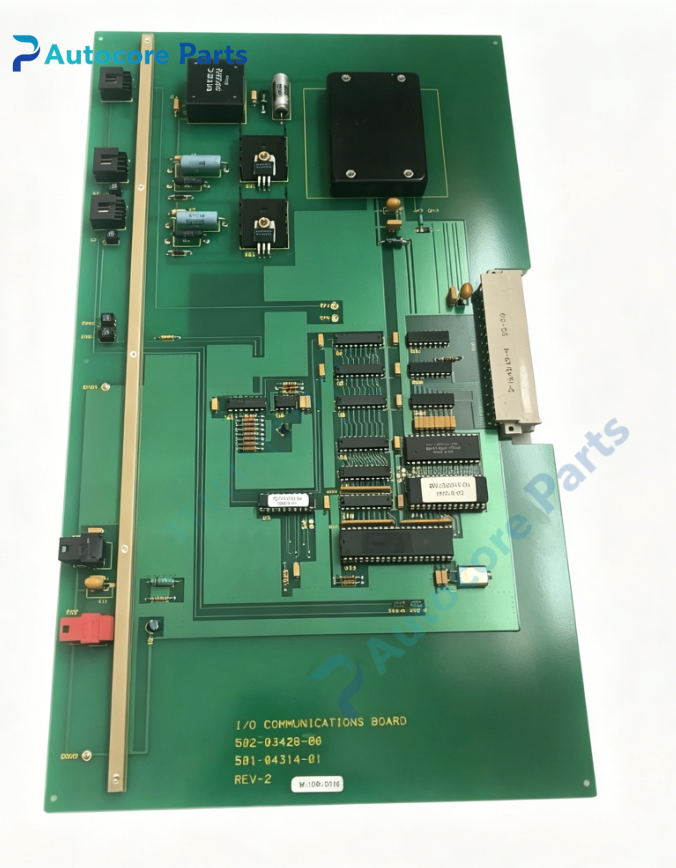

Fives Group 502-03428-00 I/O Communication Module

Technical Specifications

Model： 502-03428-00

Brand： Fives Group (Giddings & Lewis)

Product Type: Rack mount I/O communication PCB assembly for legacy PIC900 CNC control system

Module Feature:

Function: I/O communication module for Fives Group PIC900 CNC platform. Acts as dedicated communication gateway between main CPU and distributed field I/O modules. Transmits digital I/O status, alarm signals and control commands over serial communication link, handles data framing, error checking and retransmission for heavy horizontal boring mills and large machining centers.

Communication Interface: Serial field I/O bus Bus interface: Parallel backplane bus for bidirectional data exchange with CNC CPU

Onboard components: Serial communication controller, bus transceiver, data buffer IC, parity check circuit, surge protection, address decoding logic

LED indicators: POWER, COM, LINK, FAULT diagnostic lights

Hardware self-diagnosis: Communication link integrity test, parity error detection, backplane bus handshake verification

Programming software: Fives Group proprietary CNC software for I/O node address configuration and communication diagnostic testing

Electrical Parameters

Backplane supply: +5VDC

Power consumption: Max 7.6W

Mechanical & Structure:

Mounting: Rack slot mount with gold finger edge connector

Weight: 0.94kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +55℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy PIC900 I/O communication module

System compatibility

Compatibility description: 502-03428-00 belongs to Fives Giddings & Lewis PIC900 CNC I/O communication family. Compatible with PIC900 CPU and distributed field I/O modules. Widely deployed on heavy Fives horizontal boring mills.

Function

Function description: 502-03428-00 is I/O communication board manufactured by Fives Group (Giddings & Lewis). It serves as the communication bridge between CNC main processor and remote I/O modules. It packages PLC command data and transmits to field I/O nodes, receives switch and sensor feedback data and forwards to CNC CPU. Built-in parity check detects transmission errors to prevent false I/O triggering in noisy industrial environments. It is legacy I/O communication spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off rack +5V backplane power. Insert 502-03428-00 board into rack slot and secure gold finger connector. Connect field communication cable to serial terminal block. Configure remote I/O node addresses via Fives CNC software. Restore power, verify COM and LINK LED indicators and test remote I/O data exchange.

Interface

Interface list: Backplane gold finger connector, serial communication screw terminal block,on-board POWER / COM / LINK / FAULT LED indicators for Fives Group 502-03428-00.

Diagnostic

Troubleshooting: No communication with remote I/O: Check serial cable wiring, terminal termination or damaged communication transceiver. FAULT LED lit: Parity error, link disconnection or backplane bus communication failure. Intermittent I/O loss: Electromagnetic interference, improper cable shielding or aging communication chip.

Product Brief

Brief description: 502-03428-00 is Fives Group legacy PIC900 I/O communication board,provides serial data link between CNC CPU and distributed field I/O modules on heavy CNC boring mills,discontinued CNC I/O comm PCB spare.
