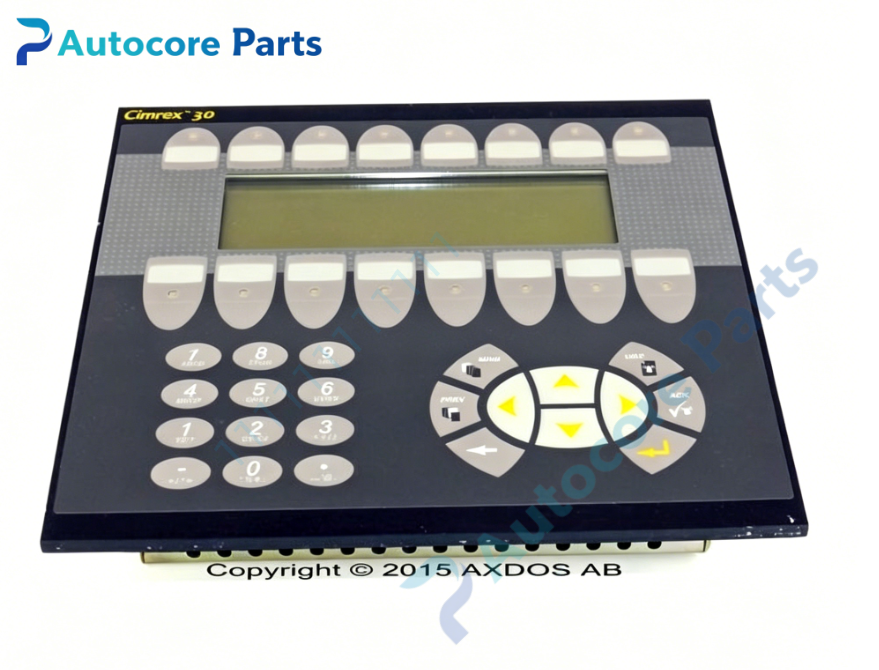

Beijer Electronics CIMREX30 HMI Operator Panel

Technical Specifications

Model： CIMREX30

Brand： Beijer Electronics

Product Type: Panel mount industrial HMI operator panel for legacy CNC / PLC system

Module Feature:

Function: CIMREX30 industrial HMI panel for Beijer E-series platform. Serves as operator interface for CNC and PLC systems, supporting parameter input, part program editing, machine status monitoring, alarm display and manual operation control. Widely used with Giddings & Lewis PIC900 CNC heavy boring mills and machining centers.

Display: 5.7 inch STN monochrome LCD, 240 × 64 pixels Communication Interface: RS232C, RS422 Onboard components: Monochrome LCD module, membrane keypad, serial communication controller, flash memory for project storage, watchdog circuit

LED indicators: POWER, COM, ALARM diagnostic lights

Hardware self-diagnosis: Power-on self-test, project integrity check, serial communication link detection

Programming software: Cimrex Prog / E-Designer for HMI screen project editing, download and backup

Electrical Parameters

Power supply: 24VDC

Power consumption: Max 18W

Mechanical & Structure:

Mounting: Cabinet panel cutout mounting Cutout dimension: 190mm × 153mm Weight: 1.30kg

Protection class: IP65 (front panel)

Environmental:

Operating temperature: 0℃ ~ +50℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy E-series HMI operator panel

System compatibility

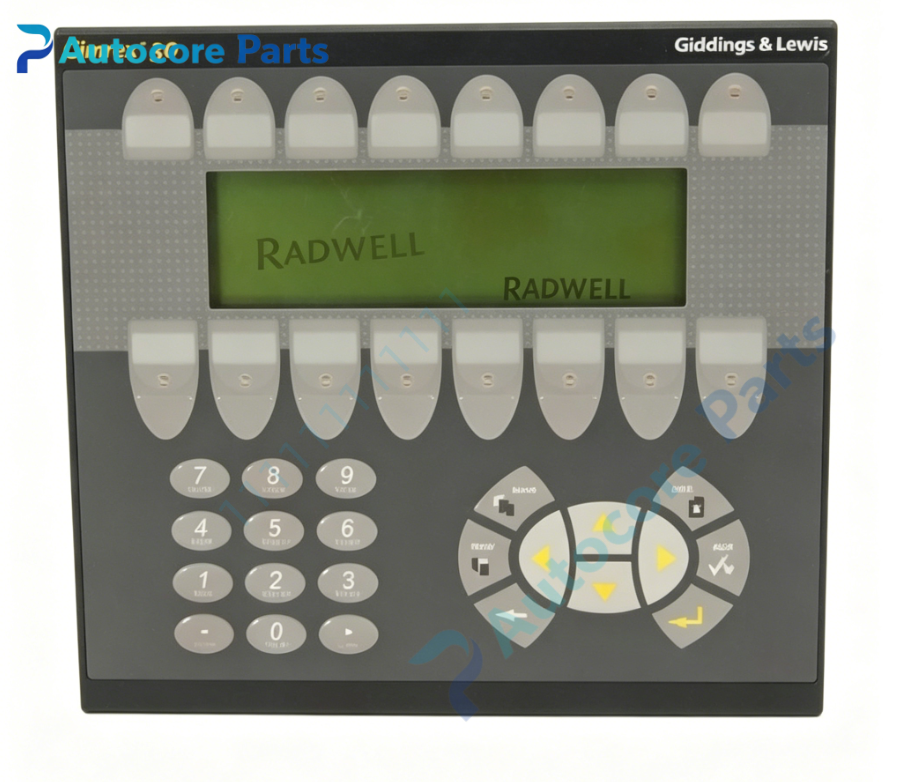

Compatibility description: CIMREX30 belongs to Beijer E-series HMI family. Supports Giddings & Lewis PIC900 CNC protocol, also compatible with multiple brands of PLCs. Commonly fitted on heavy Fives / Giddings & Lewis horizontal boring mills.

Function

Function description: CIMREX30 is a legacy monochrome operator HMI manufactured by Beijer Electronics. It connects to CNC controller or PLC via serial port. Operators can view machine running status, fault alarms, edit CNC parameters and part programs, trigger manual machine operations through membrane keys. Front panel IP65 rating protects against workshop dust and coolant splash. It is legacy operator display spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off 24VDC panel power. Insert CIMREX30 into cabinet cutout and fasten mounting clips. Wire 24VDC power cable and RS232/RS422 serial communication cable to CNC controller. Download HMI project via Cimrex Prog software. Restore power, verify POWER and COM LED indicators, test screen display and keypad operation.

Interface

Interface list: RS232C port, RS422 port, 24VDC power terminal,on-board POWER / COM / ALARM LED indicators for Beijer CIMREX30.

Diagnostic

Troubleshooting: Blank screen: Check 24VDC incoming supply or backlight failure. FAULT / COM alarm: Serial cable wiring error, wrong communication protocol or baud rate mismatch. Keypad no response: Membrane keypad aging or HMI project corruption.

Product Brief

Brief description: CIMREX30 is Beijer Electronics discontinued E-series monochrome HMI panel,used as operator interface for Giddings & Lewis PIC900 CNC heavy boring mills,legacy CNC operator display spare.
