Fisher R667X000502 Actuator Repair Kit

Technical Specifications

Model：R667X000502 Brand：Fisher Product Type: 667 series size 45~60 pneumatic diaphragm actuator sealing overhaul kit

Module Feature

Fisher R667X000502 is dedicated seal repair kit for Fisher 667 reverse acting spring-diaphragm pneumatic actuators size 45 through 60. It includes all necessary gaskets and nitrile O-rings for actuator disassembly and reassembly. Composite gasket and nitrile seal material provide reliable sealing and aging resistance under cyclic air pressure operation. Widely used in chemical, oil, gas and power plant control valve actuator routine overhaul.

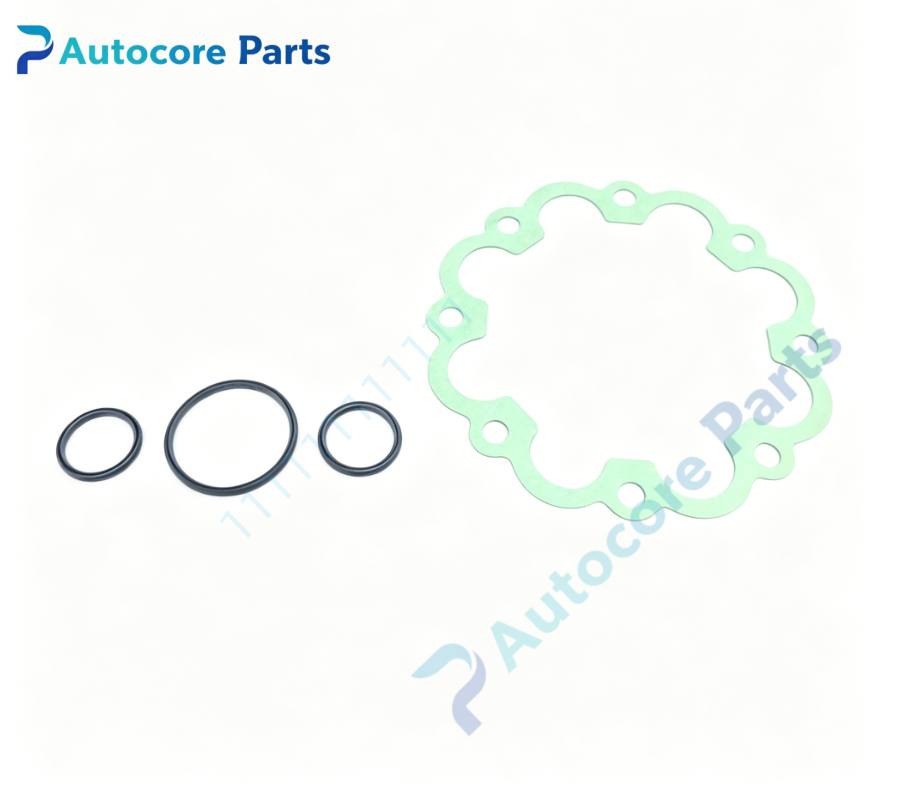

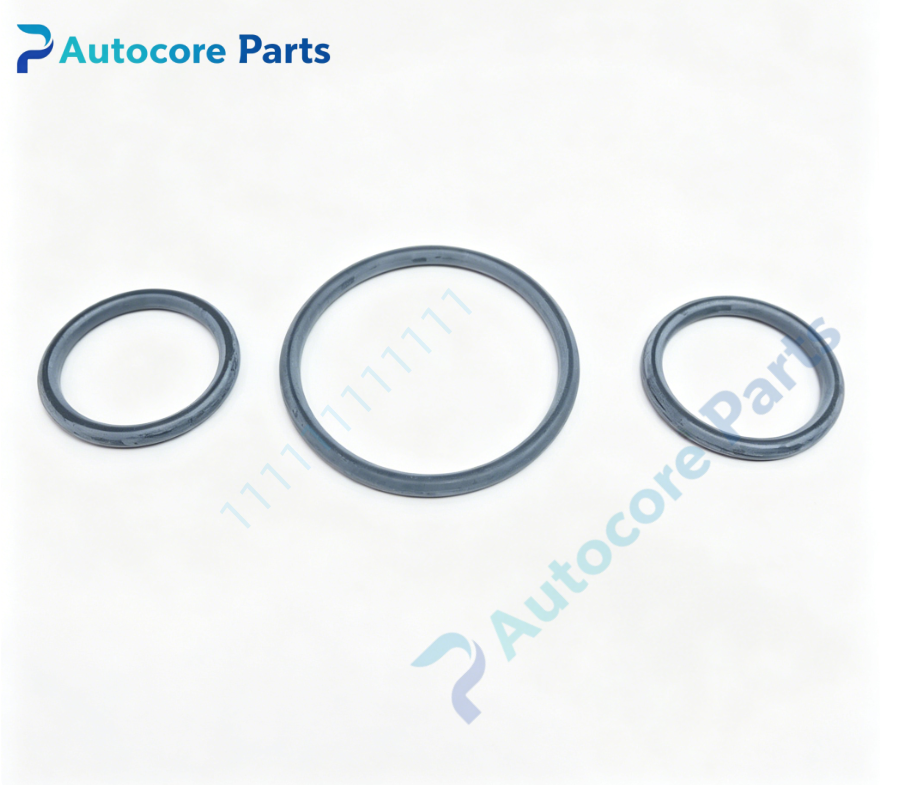

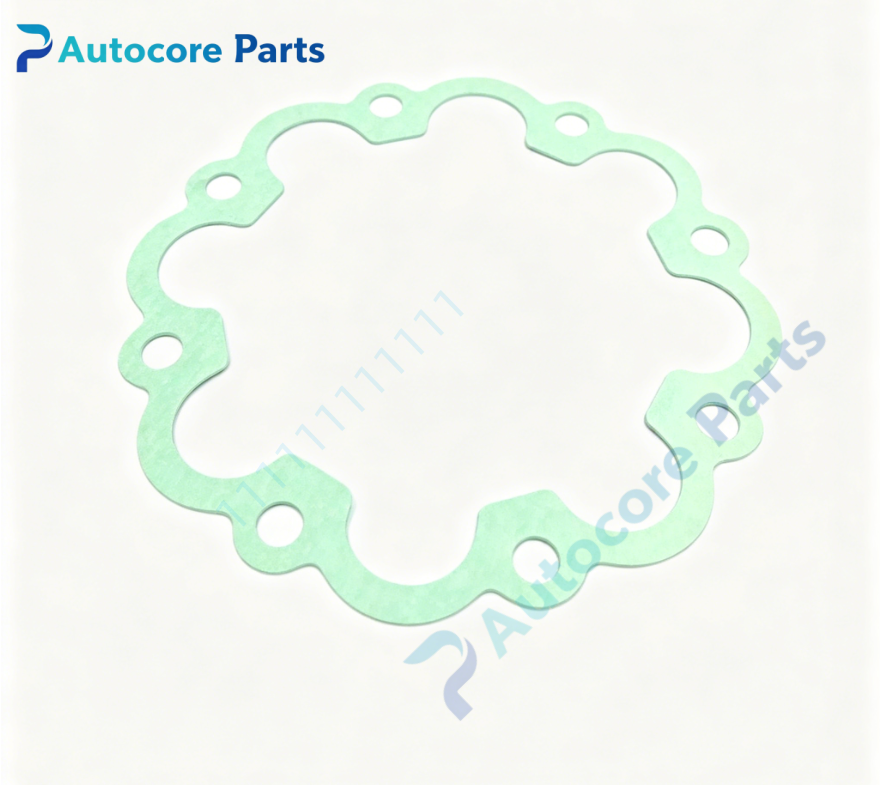

Working principle: Prevent internal and external air leakage inside spring-diaphragm actuator chamber Onboard components: Composition gaskets, nitrile O-rings, sealing washers, installation hardware

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, seal aging & crack inspection, air tightness test after reassembly, actuator stroke and bench range test

Programming software

No dedicated software required

Mechanical & Structure

Mounting: Installed between upper and lower actuator housing, seal all mating surfaces Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +120℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher 667 actuator seal spare kit

System compatibility

Only fits Fisher 667 size 45,50,60 reverse-acting pneumatic diaphragm actuators, compatible with globe control valves and FIELDVUE digital valve controllers.

Function

R667X000502 is complete sealing overhaul kit manufactured by Fisher. All gaskets and O-rings in this kit seal the actuator pressure chamber to stop air leakage. Seal degradation will cause thrust loss, stroke drift and continuous air venting. This kit is used during actuator overhaul when disassembling actuator casing.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and release residual air pressure. Disassemble actuator upper and lower housing, replace all old gaskets and O-rings with parts in R667X000502 kit. Cross torque casing bolts evenly. Reassemble actuator and perform air tightness test, bench range calibration and full stroke test.

Interface

Seal between actuator housing mating surfaces, shaft sliding sealing by O-rings, no LED indicators on R667X000502.

Diagnostic

External air leakage: Gasket or O-ring aging, crack or improper installation. Insufficient actuator thrust: Internal seal leakage causing pressure loss. Unstable valve stroke: Air chamber leakage from damaged gasket.

Product Brief

R667X000502 Fisher sealing overhaul kit for 667 size 45-60 reverse acting pneumatic diaphragm actuator,with gaskets and nitrile O-rings,for industrial control valve actuator maintenance and seal replacement,actuator sealing spare kit.
