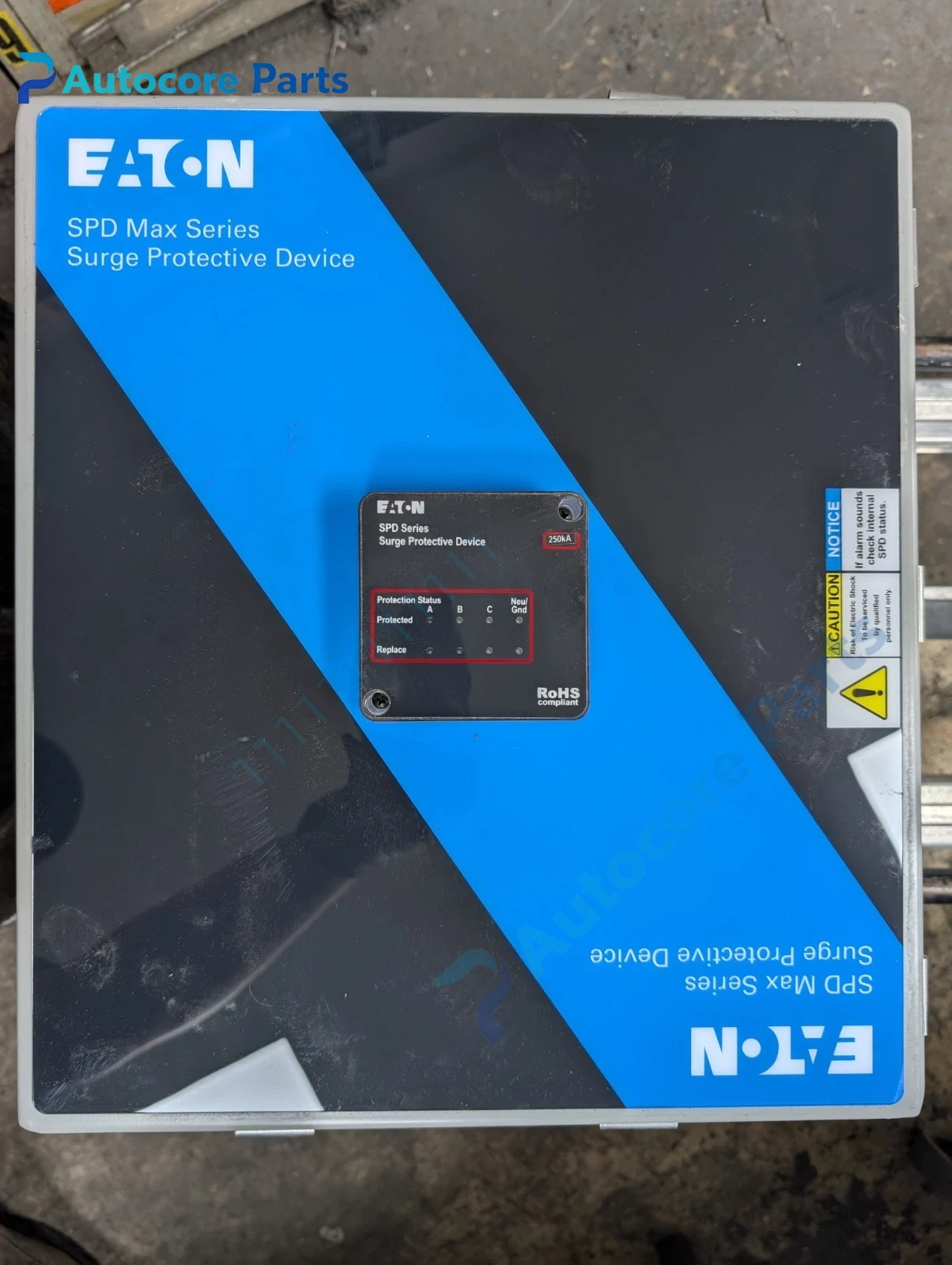

Eaton SPM250480Y1R SPD MAX Surge Protection Device Unit

Module Feature

SPM250480Y1R belongs to Eaton SPD MAX heavy-duty surge protection series. Single module design with 250kA surge capacity per phase, suitable for 277/480V three-phase wye 4-wire plus ground power system. Built-in internal circuit breaker provides isolation protection for SPD modules. NEMA4 painted metal enclosure is dust-tight and water-splash resistant for indoor and mild outdoor environments. Thermally protected MOV modules automatically disconnect upon overheating to eliminate fire hazard. Widely used for industrial main switchgear, motor control centers and large commercial power distribution panels.

Working principle

Under normal working voltage, metal oxide varistors maintain high impedance and have no influence on regular power supply. When lightning or switching high-voltage transient surge appears, MOV impedance drops instantly, diverting surge current to ground and clamping surge voltage to safe level. The built-in circuit breaker can isolate SPD module from power circuit in case of SPD failure.

Onboard components

Thermally protected MOV modules, internal circuit breaker, monitoring PCB, status indicator circuit, NEMA4 metal cabinet, terminal block, ground busbar.

LED indicators

System power LED, protection healthy / fault alarm LED.

Hardware self-diagnosis

Module health real-time monitoring, thermal over-temperature detection, internal fault alarm output, surge event recording.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:SPM250480Y1R Brand:Eaton Device type:SPD MAX Surge Protection Device Surge rating:250kA per phase System voltage:277/480V Wye (4W+G) Enclosure rating:NEMA4 Integrated accessory:Internal circuit breaker Frequency:50/60Hz Cooling:Natural convection cooling Protection:Thermal disconnect, transient voltage suppression, internal overcurrent protection

Mechanical & Structure

Mounting:Wall side mount Protection class:NEMA4 Housing:Painted metal enclosure

Environmental

Operating temperature:-40℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL1449 5th edition,CE compliant Status: Eaton original SPD MAX series surge protective device for industrial power distribution transient protection

Installation

Follow strict high voltage safety procedure before handling.Mount enclosure vertically on solid wall near main electrical equipment.Connect phase, neutral and ground cables to terminals, keep conductor length as short as possible. After power-up, verify LED status and perform periodic maintenance inspection.

Interface

Power phase terminals, neutral terminal, ground terminal, wall mounting holes, status indicator window.

Diagnostic

Fault LED illuminated: one or multiple MOV modules failed, SPD loses protection function and needs replacement. Frequent surge alarms: unstable grid or insufficient grounding system, need to inspect grounding connection.

Product Brief

Eaton SPM250480Y1R SPD MAX surge protection device,250kA per phase,277/480V wye 4W+G,NEMA4 enclosure with built-in circuit breaker,for industrial switchgear and MCC lightning and transient surge protection.
