EATON CROUSE-HINDS FSQC3430 Explosion Proof Receptacle Unit

Module Feature

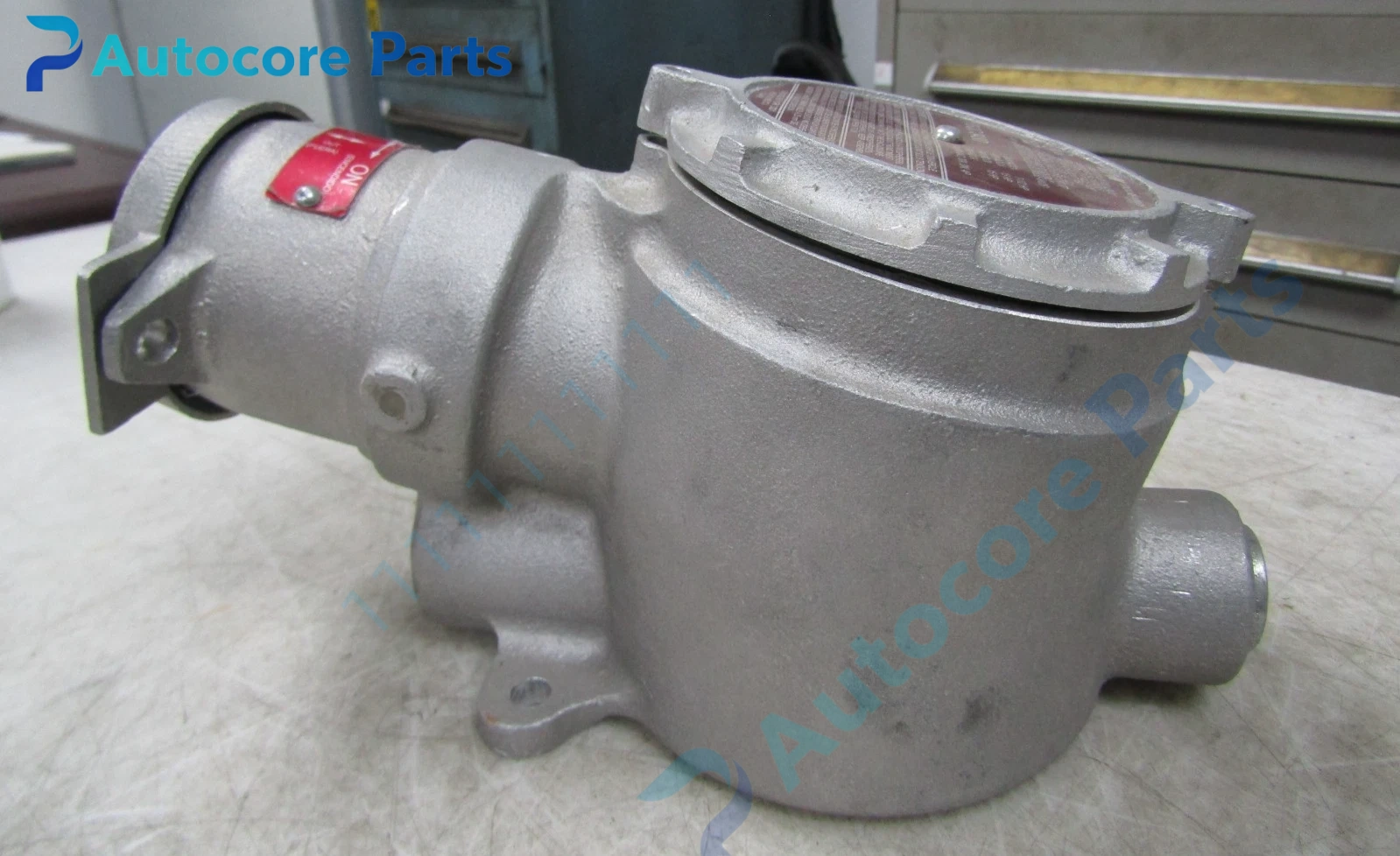

FSQC3430 belongs to EATON Crouse-Hinds Arktite series explosion-proof receptacle. Rated 30A, 4-pole 3-wire configuration. Heavy-duty cast aluminum housing with corrosion-resistant coating. The Arktite interlock mechanism prevents opening under live power condition, eliminates arc exposure risk. Approved for Class I Division 1 Group C/D, Class II Division 1 Group F/G hazardous classified locations. Built-in spring loaded protective dust cap. Widely used for portable equipment power connection in chemical plants, paint booths, grain processing and other explosive gas/dust sites.

Working principle

The mechanical interlock structure ensures the receptacle cover cannot be opened when live. When plug is inserted and locked, internal contacts connect power. Flame path design contains internal electric arcs inside enclosure and prevents ignition of surrounding flammable medium. Spring cap automatically covers socket after plug removal to block dust and moisture.

Onboard components

Cast aluminum explosion-proof housing, copper alloy contact assembly, mechanical interlock mechanism, spring protective cap, terminal wiring chamber, sealing gaskets, mounting lugs.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Visual inspection of flame path surface, check interlock operation function, test contact continuity, inspect housing crack and gasket aging.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:FSQC3430 Brand:EATON CROUSE-HINDS Device type:Arktite Explosion Proof Receptacle Rating:30A Poles/Wires:4P 3W Housing material:Cast aluminum Certified hazardous rating:Class I Div1,Class II Div1 Cooling:Natural convection cooling Protection:Explosion-proof flame path,IP66 wetted protection

Mechanical & Structure

Mounting:Surface wall mount Protection class:IP66 Housing:Cast aluminum housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,CSA compliant Status: EATON Crouse-Hinds original Arktite hazardous area power receptacle

Installation

Follow strict hazardous area safety procedure before handling.Mount unit firmly on solid wall via mounting lugs.Connect power cable inside explosion-proof terminal chamber,torque terminal box bolts to maintain flame path integrity.Test mechanical interlock function before energizing.

Interface

Power cable entry port,receptacle socket interface,mounting lugs.

Diagnostic

Interlock failure:cannot lock or unlock,must decommission immediately for safety. Poor contact:overheating at contact point,scorching marks. Housing damage:cracked casting will lose explosion-proof certification.

Product Brief

EATON CROUSE-HINDS FSQC3430 Arktite 30A 4P3W explosion-proof receptacle, Class I/II Div 1 rated, for portable equipment power supply in hazardous gas and dust locations.
