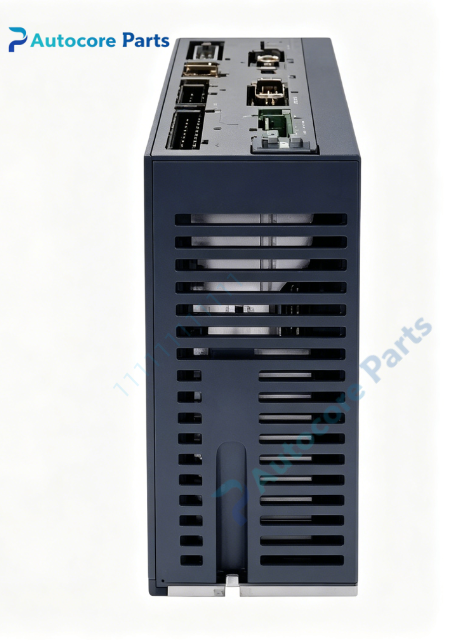

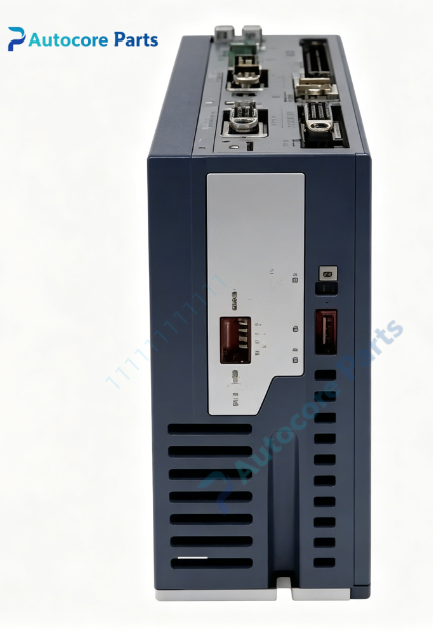

DANAHER MOTION S20350-CNS Servo Drive

Technical SpecificationsModel：S20350-CNS Brand：DANAHER MOTION (Kollmorgen) Product Type: S200 series compact high-performance brushless servo drive for industrial motion control

Drive Feature:Control mode: Position / Velocity / Torque / Electronic gearing / Programmable indexing Built-in 180 motion task programs, registration and homing function Smart Feedback Device(SFD) auto detection for AKM servo motors On-board digital oscilloscope for servo loop tuning Fieldbus: CANopen / DeviceNet communication interface Built-in regenerative circuit, overvoltage, overcurrent and over-temperature protection

Electrical Parameters:Input voltage:120VAC / 240VAC single phase Continuous output current:3Arms Peak output current:9Arms Rated continuous output power:750W Peak power:2400W Control supply:24VDC logic power

Mechanical & Structure:Housing:Metal shielded compact enclosure Mounting:DIN rail mount Protection class:IP20

Environmental:Operating temperature:0℃ ~ +40℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Discontinued legacy spare part

System compatibility

S20350-CNS belongs to DANAHER MOTION Kollmorgen S200 servo family. Compatible with Kollmorgen AKM series brushless servo motors. Widely used for packaging machinery, material handling, cutting equipment and general automation single-axis positioning applications.

Function

S20350-CNS is compact digital servo amplifier manufactured by DANAHER MOTION Kollmorgen. It receives motion instructions from upper controller, drives AKM permanent magnet servo motor in closed-loop control. It supports indexing and electronic gearing for multi-axis synchronous motion. SFD auto-configuration reads motor parameters automatically. Built-in oscilloscope helps engineer tune servo gain and diagnose vibration issues.

Installation

Follow lockout/tagout safety procedure before installation. Mount S20350-CNS on DIN rail inside electrical cabinet. Connect AC main power, 24VDC control power, motor power cable and encoder feedback cable according to Kollmorgen S200 hardware manual. Complete motor auto-setup, servo tuning and motion test after wiring.

Interface

AC power terminal, motor power connector, encoder SFD feedback port, digital I/O terminal, CANopen bus connector, status LED indicator for DANAHER MOTION S20350-CNS.

Feature

Original DANAHER MOTION S20350-CNS compact servo drive,3A continuous output,built-in indexer,CANopen communication,SFD motor auto detect,DIN rail installation,multiple safety protection,UL & CE certified. This spare unit is used for automation equipment axis control replacement and maintenance.

Diagnostic

Drive alarm: Check overcurrent,overvoltage or overtemperature fault code. Motor no movement: Verify enable signal, encoder wiring and motor SFD connection. Position jitter: Re-tune servo gain, inspect mechanical backlash and grounding.

Product Brief

S20350-CNS is DANAHER MOTION Kollmorgen S200 single-axis compact servo amplifier,3Arms continuous current,supports indexing and CANopen,matched with AKM brushless servo motors for industrial automation machinery.
