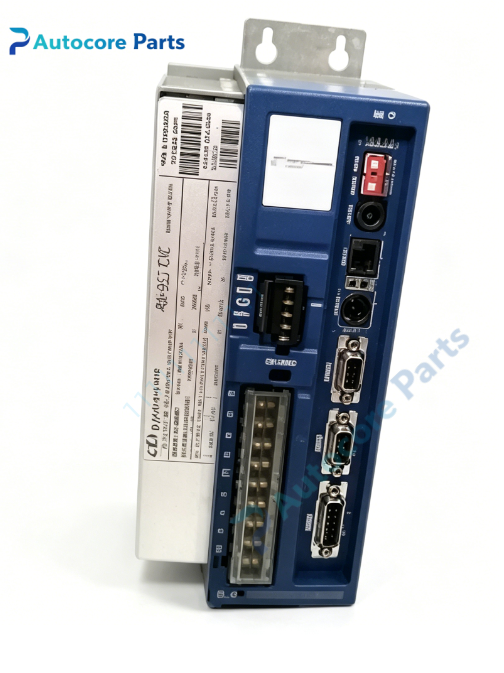

DANAHER MOTION M.3000.0467 Servo Drive

Technical Specifications

Model：M.3000.0467 Brand：DANAHER MOTION Product Type: M series high-performance digital servo amplifier for industrial motion control

Drive Feature: Control mode: Position / Speed / Torque control Command input: Pulse & direction, ±10V analog command Built-in function: Electronic cam, master-slave gearing, homing routine, S-curve acceleration PWM switching frequency: 10kHz

Electrical Parameters: Input voltage: 230VAC single phase Continuous output current: 18A Peak output current: 36A Control supply: 24VDC

Mechanical & Structure: Housing: Reinforced heavy-duty metal sheet enclosure Mounting: DIN rail mounting Cooling: Forced air cooling Protection class: IP20

Environmental: Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification: UL, CE approved Weight: Approx 2.9kg

System compatibility

M.3000.0467 belongs to DANAHER MOTION M series servo drive family. Compatible with DANAHER MOTION high-torque brushless synchronous servo motors and mainstream PLC motion controllers. Widely used for heavy packaging equipment,material handling systems and heavy-load CNC single-axis motion applications.

Function

M.3000.0467 is high performance digital servo amplifier manufactured by DANAHER MOTION. It receives motion command signals from upper controller and outputs high regulated drive power to servo motor. Closed-loop control is realized through encoder feedback to achieve high-precision positioning and fast dynamic response. Built-in electronic cam and gearing functions support synchronous motion applications for heavy loads.

Installation

Follow lockout/tagout safety procedure before installation. Mount M.3000.0467 on DIN rail inside electrical cabinet. Connect power cable, motor cable and encoder cable strictly follow DANAHER MOTION M series wiring manual. Complete motor auto-tuning and full-load motion test during commissioning.

Interface

AC power terminals, motor output terminals, encoder port, digital I/O terminals, RS232 communication port, status LED indicator for DANAHER MOTION M.3000.0467.

Feature

Original DANAHER MOTION M.3000.0467 high-power digital servo drive,large continuous & peak current,forced air cooling,DIN rail installation,multiple control modes,UL & CE certified. This spare unit is used for heavy-duty automation equipment axis control,motion system maintenance and hardware replacement.

Diagnostic

Drive alarm: Inspect overvoltage,undervoltage,overcurrent and overtemperature faults. Motor no rotation: Check power wiring,encoder connection and drive enable signal. Positioning deviation: Re-tune servo gain,inspect encoder signal and mechanical backlash. Abnormal vibration: Adjust servo parameters,check motor and coupling alignment.

Product Brief

M.3000.0467 is DANAHER MOTION M series high power digital servo amplifier,supports multi-mode control,matched with high-torque Danaher brushless servo motors,classic spare part for heavy-duty CNC and industrial automation motion system.
