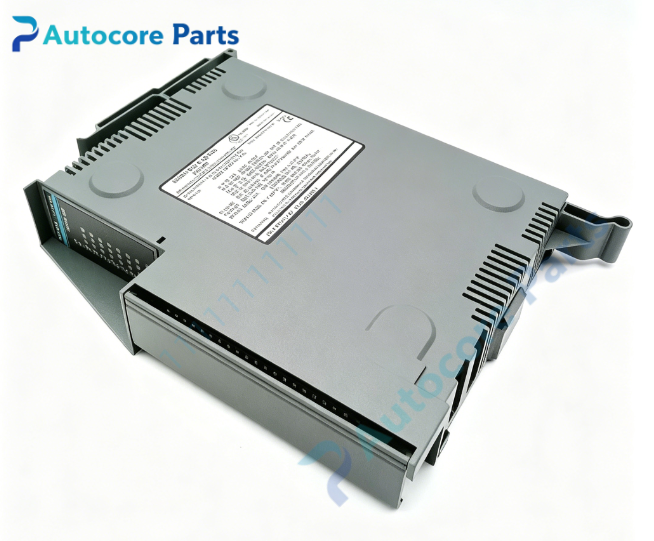

DANAHER MOTION M.1016.9290 Servo Drive

Technical SpecificationsModel：M.1016.9290 Brand：DANAHER MOTION Product Type: M series digital servo amplifier for industrial motion control

Drive Feature:Control mode: Position / Speed / Torque control Command input: Pulse & direction, ±10V analog command Built-in function: Electronic cam, homing routine, S-curve acceleration PWM switching frequency:8kHz

Electrical Parameters:Input voltage: 230VAC single phase Continuous output current:8.2A Peak output current:16.4A Control power supply:24VDC

Mechanical & Structure:Housing: Metal sheet enclosure Mounting: DIN rail mounting Cooling: Convection cooling Protection class: IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification: UL, CE approved Weight: Approx 1.6kg

System compatibilityM.1016.9290 belongs to DANAHER MOTION M series servo drive family. Compatible with DANAHER MOTION brushless synchronous servo motors and Giddings & Lewis motion controllers. Widely used for light-load packaging equipment,material handling and CNC single-axis precision motion applications.

Function

M.1016.9290 is digital servo amplifier manufactured by DANAHER MOTION. It receives motion command signals from upper controller and outputs adjustable drive power to servo motor. Closed-loop control is realized through encoder feedback to achieve high-precision positioning and stable speed regulation. Built-in motion functions simplify machine programming and commissioning.

Installation

Follow lockout/tagout safety procedure before installation. Mount M.1016.9290 on DIN rail inside electrical cabinet. Connect power cable, motor cable and encoder cable strictly follow DANAHER MOTION M series wiring manual. Complete motor auto-tuning and motion test during commissioning.

Interface

AC power terminals, motor output terminals, encoder port, digital I/O terminals, RS232 communication port, status LED indicator for DANAHER MOTION M.1016.9290.

Feature

Original DANAHER MOTION M.1016.9290 compact digital servo drive,multiple control modes,DIN rail installation,convection cooling,overcurrent,overvoltage and overtemperature protection,UL & CE certified. This spare unit is used for light-load automation equipment axis control,motion system maintenance and hardware replacement.

Diagnostic

Drive alarm: Inspect overvoltage,undervoltage,overcurrent and overtemperature faults. Motor no rotation: Check power wiring,encoder connection and drive enable signal. Positioning deviation: Re-tune servo gain,inspect encoder signal and mechanical backlash. Abnormal vibration: Adjust servo parameters,check motor and coupling alignment.

Product Brief

M.1016.9290 is DANAHER MOTION M series compact digital servo amplifier,supports multi-mode control,matched with small-medium Danaher brushless servo motors,classic spare part for CNC and light-load industrial automation motion system.
