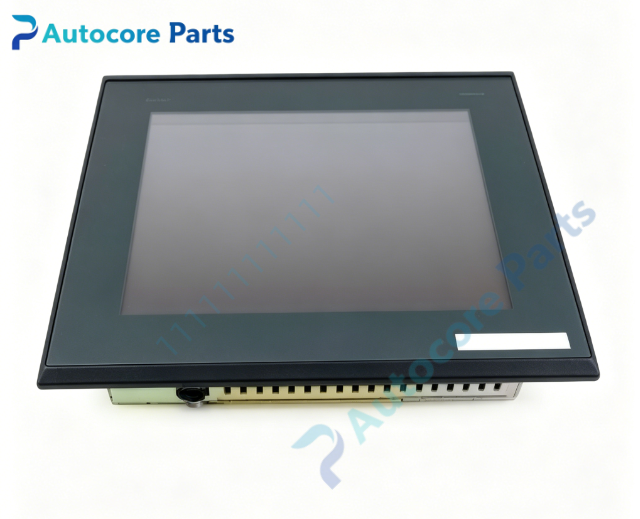

DANAHER MOTION CIMREX 91 HMI Operator Panel

Technical Specifications

Model：CIMREX 91 Brand：DANAHER MOTION Product Type: CIMREX series industrial HMI operator panel for machine tool and motion control system

HMI Feature: Display: Industrial backlit LCD graphic display Input: Integrated membrane function keypad Built-in function: Alarm management,recipe storage,real-time clock,trend graph,event scheduling Communication: Serial port for connection with G&L motion controller

Electrical Parameters: Input voltage:100~240VAC universal Power consumption: Max 45VA Input frequency:47~63Hz

Mechanical & Structure: Housing: Reinforced metal front panel Mounting: Cabinet panel cutout mounting Front protection class: IP65 Rear protection: IP20

Environmental: Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification: UL, CE approved Weight: Approx 3.2kg

System compatibility

CIMREX 91 belongs to DANAHER MOTION CIMREX HMI family. Compatible with Giddings & Lewis motion controllers and DANAHER servo drive systems. Widely deployed on CNC machine tools and factory automation equipment as operator interface for parameter setting, machine monitoring and fault diagnosis.

Function

CIMREX 91 is industrial operator HMI manufactured by DANAHER MOTION. It acts as human-machine interface between operator and motion control system. Operators can view real-time machine status, input motion parameters, edit production recipes, check alarm logs and monitor trend data. It communicates with upper motion controller via serial bus to exchange machine I/O and axis motion data.

Installation

Follow lockout/tagout safety procedure before installation. Cut panel opening and embed CIMREX 91 on machine cabinet front panel. Fasten mounting brackets, connect AC power cable and communication cable strictly follow CIMREX series hardware manual. Complete communication configuration and screen project download during commissioning.

Interface

AC power terminal,serial communication port,function keypad,display screen,status LED indicators for DANAHER MOTION CIMREX 91.

Feature

Original DANAHER MOTION CIMREX 91 industrial HMI,IP65 front panel,membrane keypad,recipe & alarm function,legacy reliable design,UL & CE certified. This spare unit is used for CNC machine operation interface,motion control system maintenance and hardware replacement.

Diagnostic

No screen display: Inspect AC power supply and power wiring. Communication failure: Check serial cable,port setting and controller communication parameters. Keypad unresponsive: Verify keypad membrane damage and HMI firmware status. Alarm pop-up: Check machine I/O signal and controller fault code.

Product Brief

CIMREX 91 is DANAHER MOTION CIMREX series legacy industrial HMI operator panel,matched with Giddings & Lewis motion control platform,classic spare part for CNC machine tools and industrial automation.
