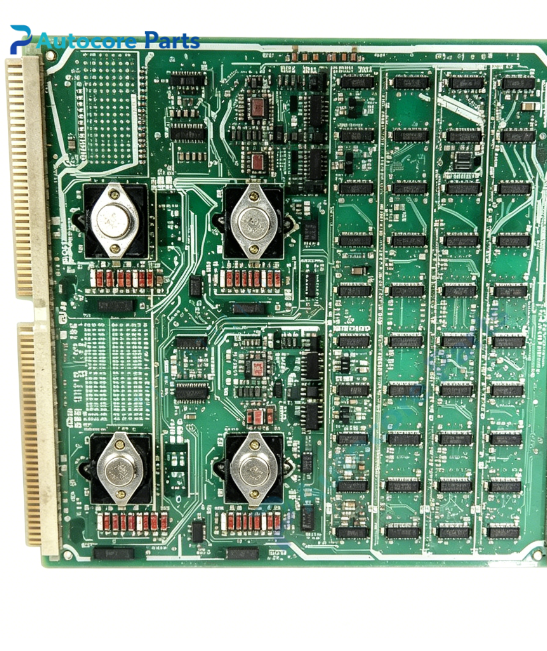

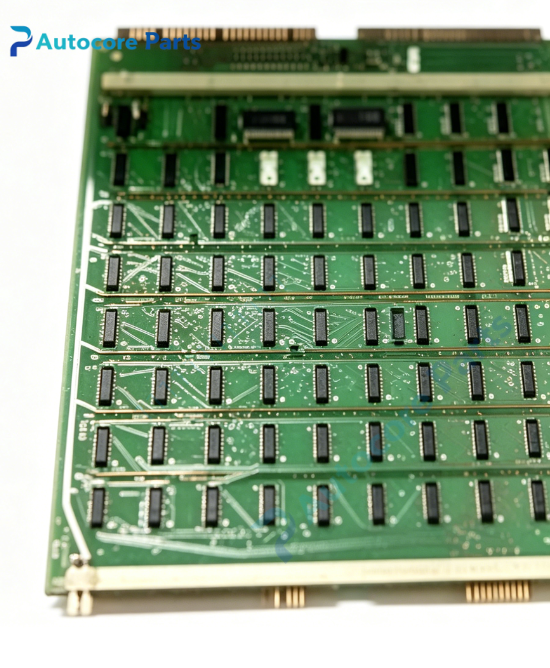

DANAHER MOTION 501-03122-00 Interface Board

Technical SpecificationsModel：501-03122-00 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: CNC system interface printed circuit board assembly

Board Feature:Function: Signal buffering, conversion and transmission between CNC controller and peripheral hardware Isolation circuit for noise suppression between control signals and field signals On-board status indicator LEDs for signal diagnosis Hardware watchdog and overvoltage protection circuit

Electrical Parameters:Supply voltage:24VDC Signal level:TTL / differential signal compatible Signal isolation:Galvanic isolation between control side and field side

Mechanical & Structure:Housing:PCB assembly with metal mounting bracket Mounting:Installed inside electrical cabinet Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-03122-00 belongs to DANAHER MOTION Giddings & Lewis legacy CNC control family. Compatible with Giddings & Lewis PIC series CNC controller and related I/O & servo drive modules. Widely deployed on heavy-duty boring mills, vertical and horizontal CNC machine tools.

Function

501-03122-00 is interface PCB board manufactured by DANAHER MOTION Giddings & Lewis. It serves as signal interface bridge between CNC main controller and peripheral components. It buffers and converts digital and differential signals, filters electrical interference to improve system stability. The onboard LEDs help maintenance staff quickly check signal status during troubleshooting.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole CNC system. Mount 501-03122-00 board to cabinet mounting bracket. Connect control side cable and field peripheral cable strictly follow Giddings & Lewis hardware manual. Power on and perform signal communication test after wiring.

Interface

24VDC power connector, differential / digital signal terminal connector, status LED indicator for DANAHER MOTION 501-03122-00.

Feature

Original DANAHER MOTION 501-03122-00 CNC interface PCB board,signal isolation & noise filtering,LED diagnostic indicators,hardware overvoltage protection,UL & CE certified. This spare unit is used for legacy Giddings & Lewis CNC machine control system maintenance and hardware replacement.

Diagnostic

No signal transmission: Check 24VDC supply, cable wiring and connector tightness. Intermittent signal loss: Inspect shielding grounding and surrounding electromagnetic interference. LED alarm: Verify overvoltage condition or short circuit on signal circuit.

Product Brief

501-03122-00 is DANAHER MOTION Giddings & Lewis legacy CNC interface PCB board,for signal conversion and peripheral connection of heavy-duty CNC machine control system,classic discontinued spare part.
