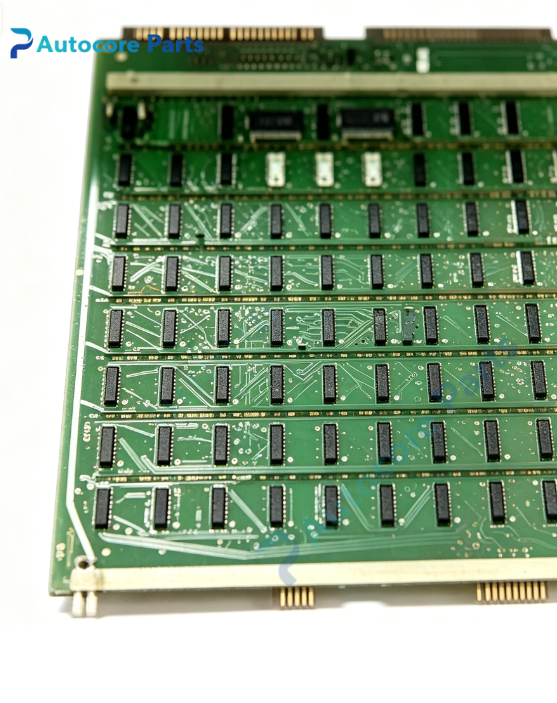

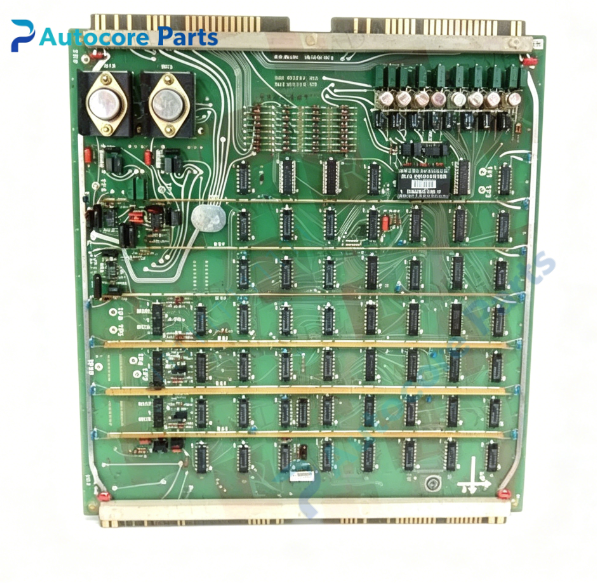

DANAHER MOTION 501-03111-00 Encoder Feedback Board

Technical SpecificationsModel：501-03111-00 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Rack plug-in encoder feedback printed circuit board assembly for CNC motion control system

Board Feature:Function: Receive, buffer and condition differential encoder A/B/Z quadrature signals Signal conversion and position counting for closed-loop axis positioning Surge and ESD protection circuit for encoder input lines On-board diagnostic LEDs for signal status monitoring Gold finger edge connector for CNC rack backplane connection Support incremental encoder differential line driver signal

Electrical Parameters:Supply voltage:+5VDC, ±15VDC supplied from rack backplane Encoder signal:Differential 5V line driver quadrature signal Signal isolation and noise filtering circuit

Mechanical & Structure:Housing:PCB assembly with metal retention bracket Mounting:Plug-in installation into Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-03111-00 belongs to DANAHER MOTION Giddings & Lewis legacy CNC control family. Matched with older Giddings & Lewis analog servo control boards. Widely used on heavy-duty boring mills, vertical turning centers and horizontal machining centers.

Function

501-03111-00 is encoder feedback PCB board manufactured by DANAHER MOTION Giddings & Lewis. It collects quadrature encoder feedback signals from machine axis encoders. It processes differential encoder signals, counts pulse position data and sends real-time axis position value to CNC controller for closed-loop positioning control. The onboard LEDs help maintenance staff check encoder signal integrity during troubleshooting.

Installation

Follow lockout/tagout safety procedure before installation. Fully power off CNC rack. Insert 501-03111-00 gold finger card into available rack slot and lock retainer. Connect encoder cable to terminal connector strictly follow Giddings & Lewis hardware manual. After wiring, power on and test encoder signal and axis homing function.

Interface

Gold-edge backplane connector, encoder signal terminal block, on-board status LED indicator for DANAHER MOTION 501-03111-00.

Feature

Original DANAHER MOTION 501-03111-00 encoder feedback processing board,differential quadrature signal reception,ESD & surge protection,LED diagnostic indicators,gold finger rack plug-in design,UL & CE certified. This spare unit is used for legacy heavy CNC machine axis feedback circuit maintenance and hardware replacement.

Diagnostic

No encoder position reading: Check encoder cable wiring,5V power supply and A/B/Z signal. Position jump or count loss: Inspect cable shielding, grounding and connector looseness. Board offline: Verify gold finger contact condition and rack backplane power.

Product Brief

501-03111-00 is DANAHER MOTION Giddings & Lewis legacy rack mount encoder feedback PCB board,for quadrature encoder signal processing and axis position feedback of heavy-duty CNC machine tools,discontinued spare card.
