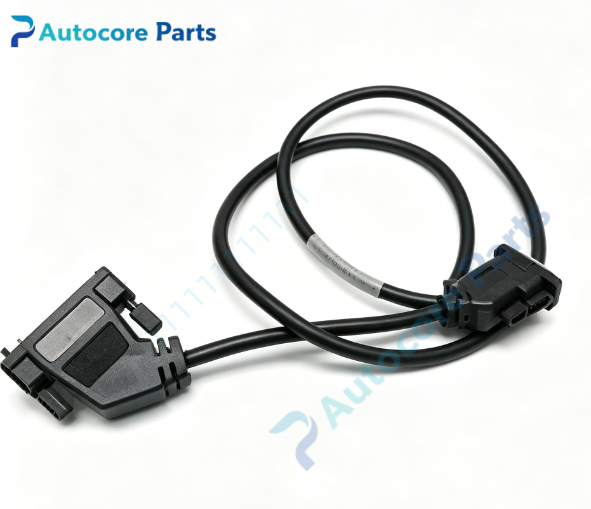

DANAHER MOTION 401-57268-30 Encoder Feedback Cable

Technical SpecificationsModel：401-57268-30 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Twisted pair shielded encoder feedback cable assembly for heavy-duty CNC servo axis

Cable Feature:Function: Transmit differential A/B/Z quadrature encoder signals from servo motor encoder to control rack / servo amplifier Twisted pair conductor design for high noise immunity Full copper braid shielding to isolate from high-power power cable interference Factory pre-terminated connectors on both ends Flexible outer jacket suitable for drag chain cyclic bending Oil and coolant resistant sheath for machine tool workshop environment

Electrical Parameters:Rated voltage:300VAC Signal:5V differential quadrature encoder signals Shield:Continuous copper braid shielding,360° shield termination at connectors Low capacitance construction for high-speed pulse signal integrity

Mechanical & Structure:Outer jacket: Flexible PUR industrial cable sheath Termination: Molded pre-assembled connectors at both ends Dynamic flex: Designed for drag chain continuous movement Protection class:IP67 when connectors fully mated

Environmental:Operating temperature:-20℃ ~ +80℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

401-57268-30 belongs to DANAHER MOTION Giddings & Lewis servo cable series. Matched with HD series servo motors and PiC900 / uDSM servo drive system. Widely applied on heavy boring mills, vertical turning centers and large horizontal machining centers.

Function

401-57268-30 is pre-terminated shielded encoder feedback cable manufactured by DANAHER MOTION Giddings & Lewis. It carries low-voltage differential quadrature encoder position signals from motor built-in encoder back to the control system. Twisted pair and full copper shielding prevent signal distortion caused by power cable electromagnetic noise. Pre-finished connectors reduce wiring error and speed up field maintenance replacement.

Installation

Follow lockout/tagout safety procedure before installation. Ensure all power of CNC cabinet and servo motor is fully cut off. Route 401-57268-30 cable inside drag chain, separate it physically from servo power cable. Connect one connector to motor encoder port and the other end to control rack feedback terminal. Implement 360° shield grounding at cabinet side. Run continuity and insulation test before power-on.

InterfaceMotor encoder side connector, control rack / drive feedback connector, continuous copper braid shielding for DANAHER MOTION 401-57268-30.

Feature

Original DANAHER MOTION 401-57268-30 encoder feedback cable assembly,low capacitance twisted pair,full copper braid shielding,oil & coolant resistant PUR jacket,factory pre-terminated connectors,UL & CE certified. This spare unit is used for Giddings & Lewis CNC machine servo axis encoder feedback wiring replacement.

Diagnostic

No encoder position reading: Check cable continuity, pin damage or loose connector mating. Intermittent position skip: Inspect cable fatigue in drag chain, shield continuity and grounding. Encoder noise alarm: Verify shield termination and separation from high-current servo power wiring.

Product Brief

401-57268-30 is DANAHER MOTION Giddings & Lewis legacy shielded servo encoder cable assembly,for quadrature position feedback signal transmission between heavy CNC servo motor and control rack,pre-terminated spare harness.
