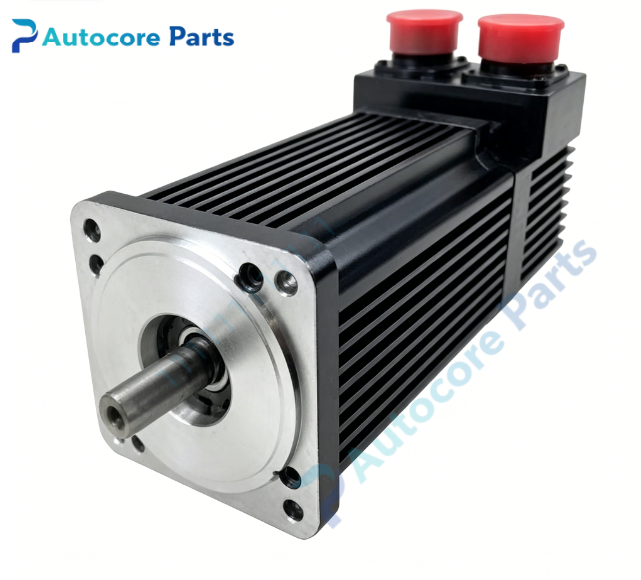

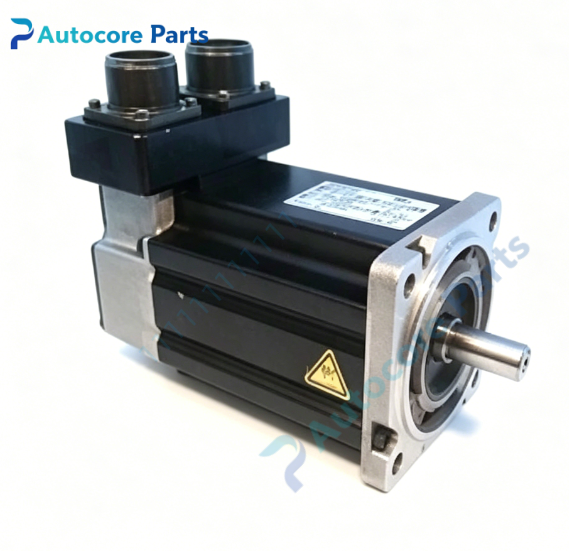

DANAHER MOTION 401-34435-00 Servo Motor

Technical Specifications

Model：401-34435-00 Brand：DANAHER MOTION Product Type: Permanent magnet brushless rotary servo motor for industrial CNC motion control

Motor Feature: Motor type: Brushless permanent magnet synchronous motor Feedback device: Built-in incremental encoder Output characteristic: Low torque ripple, medium continuous torque, strong overload capability Rotation direction: CW / CCW reversible

Electrical Parameters: Rated voltage: 230VAC Rated speed: 3000 rpm Rated torque: 5.2 Nm Rated current: 6.3A

Mechanical & Structure: Shaft: Keyway output shaft Housing: Cast aluminum alloy housing Mounting: Flange mounting Protection class: IP65

Environmental: Operating temperature: -20℃ ~ +40℃ Ambient humidity:0~85% non-condensing Certification: UL, CE approved Weight: Approx 4.8kg

System compatibility

401-34435-00 belongs to DANAHER MOTION servo motor family. Compatible with DANAHER M-series digital servo drives and Giddings & Lewis motion controllers. Widely applied in CNC machine tools, packaging machinery and medium-load material handling automation.

Function

401-34435-00 is brushless permanent magnet servo motor manufactured by DANAHER MOTION. It converts electrical energy into precise rotary mechanical power controlled by servo amplifier. Integrated incremental encoder feeds real-time position and speed signals back to realize closed-loop control, delivering stable medium torque output for automation motion axis.

Installation

Follow lockout/tagout safety procedure before installation. Mount the motor flange on machine base. Connect power cable and encoder feedback cable strictly follow DANAHER MOTION official wiring manual. Complete mechanical alignment, homing calibration and running test during commissioning.

Interface

Power connector,encoder feedback connector,keyway shaft,flange mounting holes,cast aluminum alloy housing for DANAHER MOTION 401-34435-00.

Feature

Original DANAHER MOTION 401-34435-00 brushless servo motor,high torque density,low torque ripple,IP65 protection,rugged industrial design,UL & CE certified. This spare unit is used for medium-load automation equipment axis drive,motion system maintenance and hardware replacement.

Diagnostic

Motor no rotation: Inspect servo drive enable signal,power wiring and encoder connection. Abnormal noise: Check coupling alignment,bearing wear and mechanical binding. Overheat alarm: Evaluate load level,ambient temperature and ventilation condition. Position drift: Check encoder wiring,shield grounding and mechanical backlash.

Product Brief

401-34435-00 is DANAHER MOTION permanent magnet brushless AC servo motor,matched with Danaher M series servo drives,classic spare component for CNC and medium-load industrial automation machinery.
