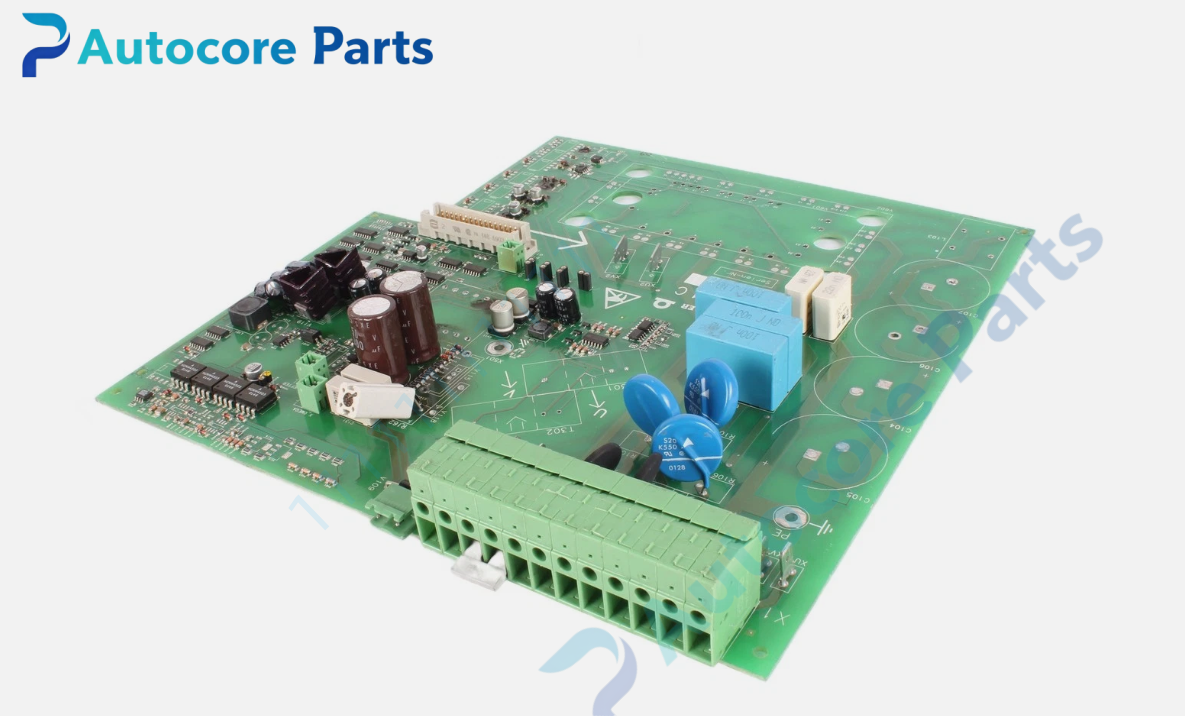

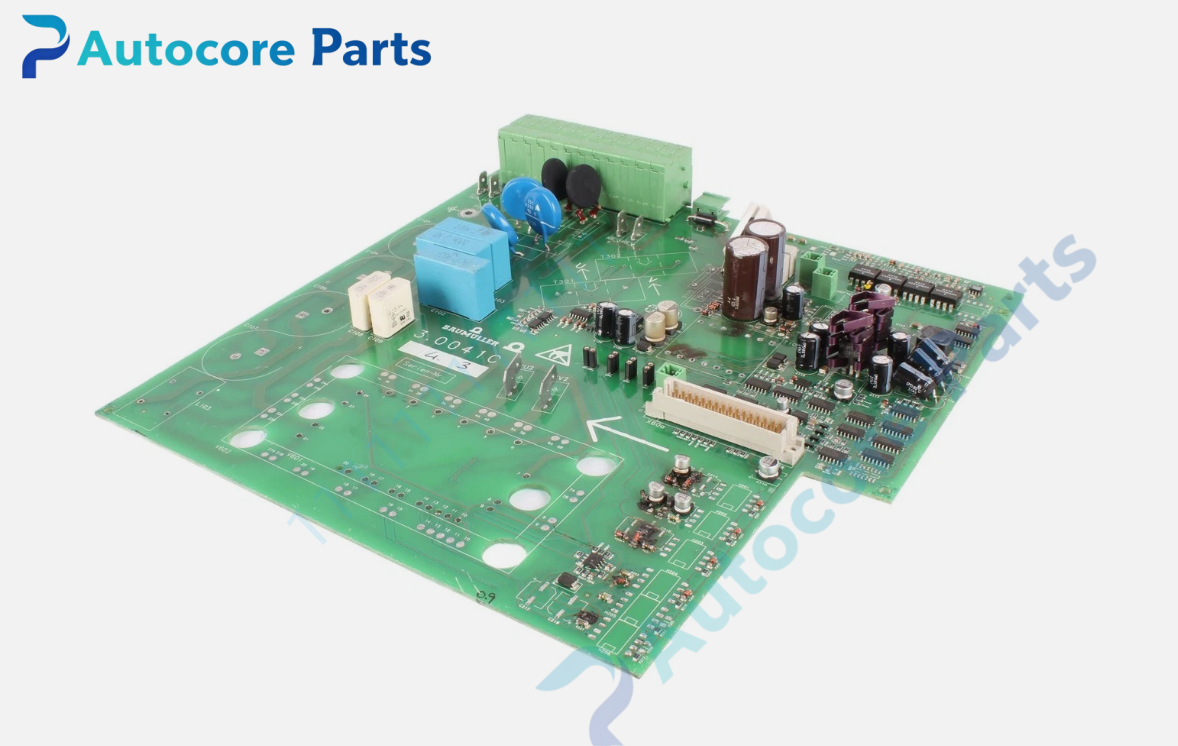

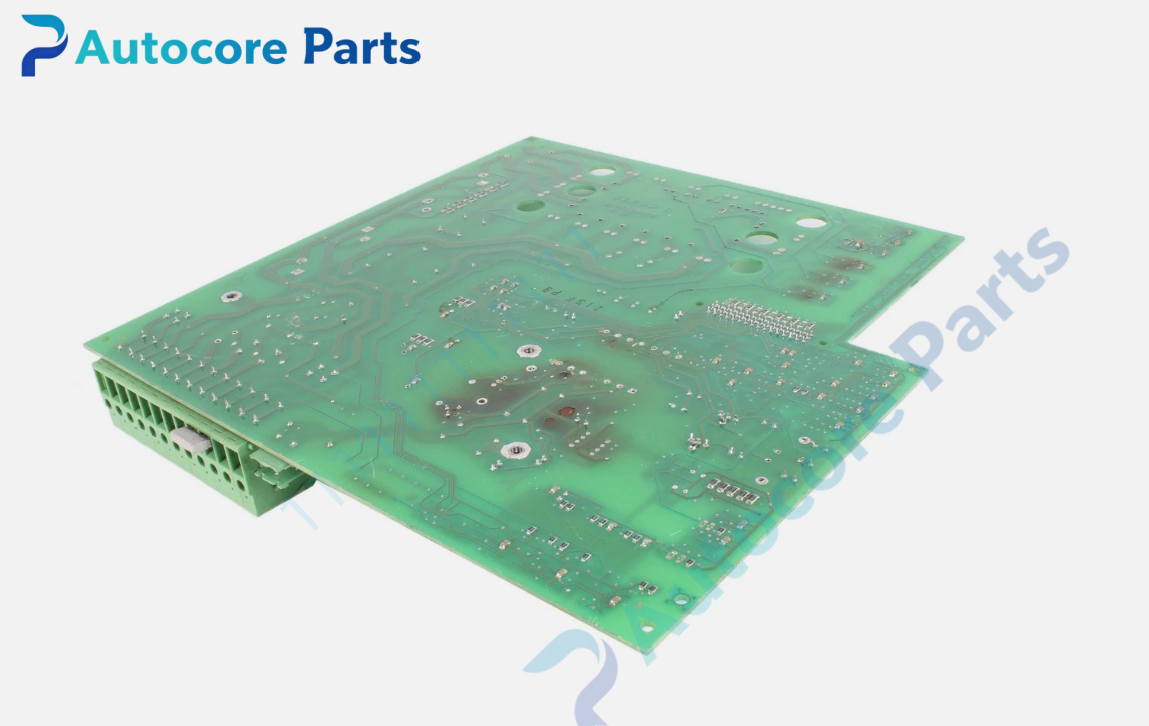

BAUMULLER 3.0041C4.3 Motion Processing Circuit Board

Technical Specifications

Model: 3.0041C4.3 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Motion Processing Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0041C4.3 is compatible with selected BAUMULLER b maXX servo drive units. It is widely used in printing, metal forming, plastic extrusion and textile production equipment for drive repair and component replacement.

Function

3.0041C4.3 is the main processing PCB inside Baumüller servo drive. It runs motion sequence programs, stores drive parameters and processes closed-loop calculation data. It coordinates the work of power stage and feedback boards, handling position profiling and speed setpoint generation. It is used to replace failed processing boards during drive overhaul.

Installation

Cut off all high-voltage power before disassembly. Open drive casing and fully discharge DC bus capacitors. Remove old processing board, install 3.0041C4.3 and secure mounting fasteners. Reconnect internal ribbon cables and bus headers. Verify wiring sequence, power on and complete full motor operation test before formal production.

Interface

Internal bus connector, feedback signal header, parameter memory port, status LED indicators for 3.0041C4.3 BAUMULLER processing board.

Feature

Original Baumüller processing circuit board, stable parameter storage, real-time motion sequence calculation, vibration resistant soldering, industrial grade EMC anti-interference capability. This legacy spare part is used for on-site maintenance of old BAUMULLER servo drive systems.

Diagnostic

Drive boot failure after replacement: check board power supply and internal connector contact for 3.0041C4.3. Motion sequence abnormal: confirm parameter download and board firmware version matching. Intermittent parameter loss: inspect solder joints and aging of peripheral components.

Product Brief

3.0041C4.3 is German BAUMULLER motion processing PCB for b maXX servo drives. It executes motion sequence logic and manages drive parameters, classic spare part for legacy BAUMULLER industrial machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
