BAUMULLER 3.0037F02.02 Servo Slot Option Board

Technical Specifications

Model: 3.0037F02.02 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Slot Mounted Option Board Mounting: Inserted into the internal expansion slot of BAUMULLER b maXX servo drive Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (once fully fitted inside drive housing)

System compatibility

3.0037F02.02 is compatible with selected b maXX series servo drives. It matches printing, metal forming, plastic and textile production line servo systems, used for upgrade and component replacement.

Function

This slot option board extends the peripheral signal capability of the Baumüller servo drive. It handles high-speed trigger signals and safety interlock logic between drive and machine. It provides isolated signal channels to avoid disturbance from heavy machine vibration. It is used for replacing damaged expansion modules or adding custom motion functions during equipment overhaul.

Installation

Cut off all high voltage power before service. Open servo drive casing and fully discharge DC bus capacitors. Insert 3.0037F02.02 into the dedicated slot, secure locking fasteners. Reconnect internal bus headers and external signal wiring. Check insulation and signal continuity, perform full drive-motor test before production startup.

Interface

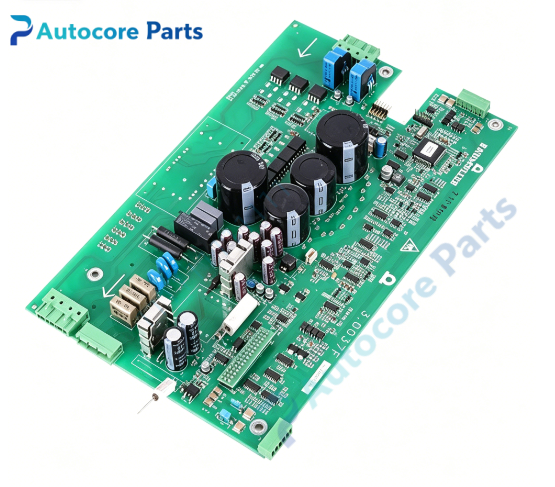

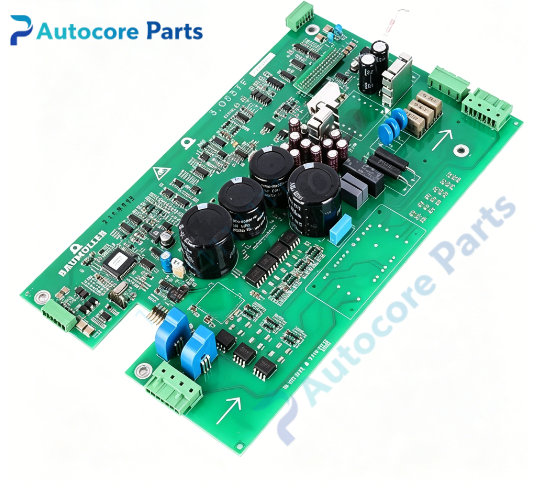

External signal terminal block, internal backplane bus connector, channel status LED indicators for 3.0037F02.02 BAUMULLER option board.

Feature

Original Baumüller expansion module, isolated signal circuit, robust vibration resistance, compact slot structure, EMC noise suppression for heavy industrial environments. This legacy spare part supports maintenance and function upgrading of old BAUMULLER servo drive systems.

Diagnostic

No signal response after replacement: check slot seating and pin crimp quality for 3.0037F02.02. Trigger signal misjudgment: verify wiring polarity and parameter configuration. Random intermittent communication drop: inspect connector shielding and aging of adjacent components.

Product Brief3.0037F02.02 is German BAUMULLER slot-type option board for b maXX servo drives. It extends high-speed trigger and safety interlock interfaces, classic spare part for legacy industrial machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
