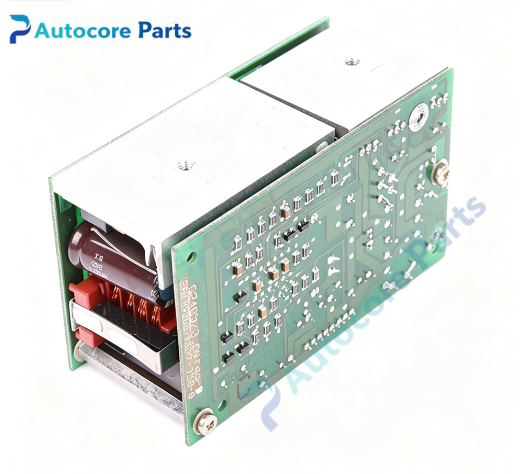

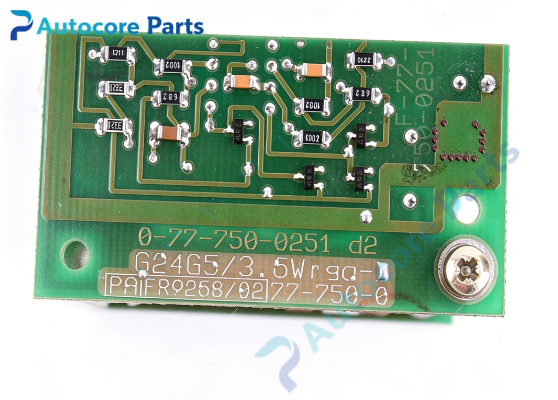

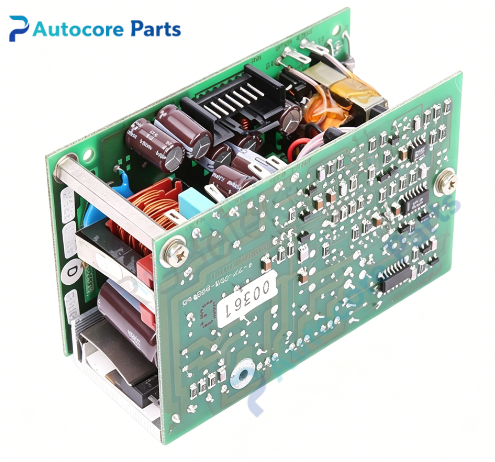

BAUMULLER 0-77-750-0251D2 Servo Drive Control Printed Circuit Board

Technical Specifications

Model: 0-77-750-0251D2 (alternate marking: 0777500251D2) Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Main Control Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

0-77-750-0251D2 belongs to BAUMULLER b maXX series main control board. It pairs with corresponding power stage board and drive chassis. Widely used for overhaul of printing machinery, metal forming and plastic extrusion equipment drive systems.

Function

0-77-750-0251D2 is the core control PCB inside Baumüller servo drive. It executes motion control algorithms, receives encoder/resolver feedback signals, and sends PWM command signals to the power stage board. It also processes status monitoring, fault diagnosis and bus communication data. It is used to replace damaged main control boards during drive repair.

Installation

Cut off all high-voltage power of servo drive before disassembly. Open drive casing, fully discharge DC bus capacitors. Remove old mainboard, install 0-77-750-0251D2, secure mounting screws and reconnect all internal ribbon cables and headers. Check wiring sequence, power on and test drive and motor operation before formal production.

Interface

Backplane signal header, encoder feedback connector, PWM output to power stage, status LED indicators for 0-77-750-0251D2 BAUMULLER control board.

Feature

BAUMULLER original main control circuit board, closed-loop motion calculation, fault diagnostic function, compact built-in drive layout, industrial anti-interference design. This legacy spare part used for old BAUMULLER b maXX servo drive main control maintenance and replacement.

Diagnostic

Drive boot failure after replacement: check cable pin definition and board power supply for 0-77-750-0251D2. Position feedback error: verify encoder wiring and parameter configuration. Communication timeout: inspect bus connector and shielding grounding. Intermittent alarm: check solder joints and component aging.

Product Brief

0-77-750-0251D2 is German BAUMULLER b maXX servo drive main control PCB. It runs motion control logic and processes feedback signals for servo drive units, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
