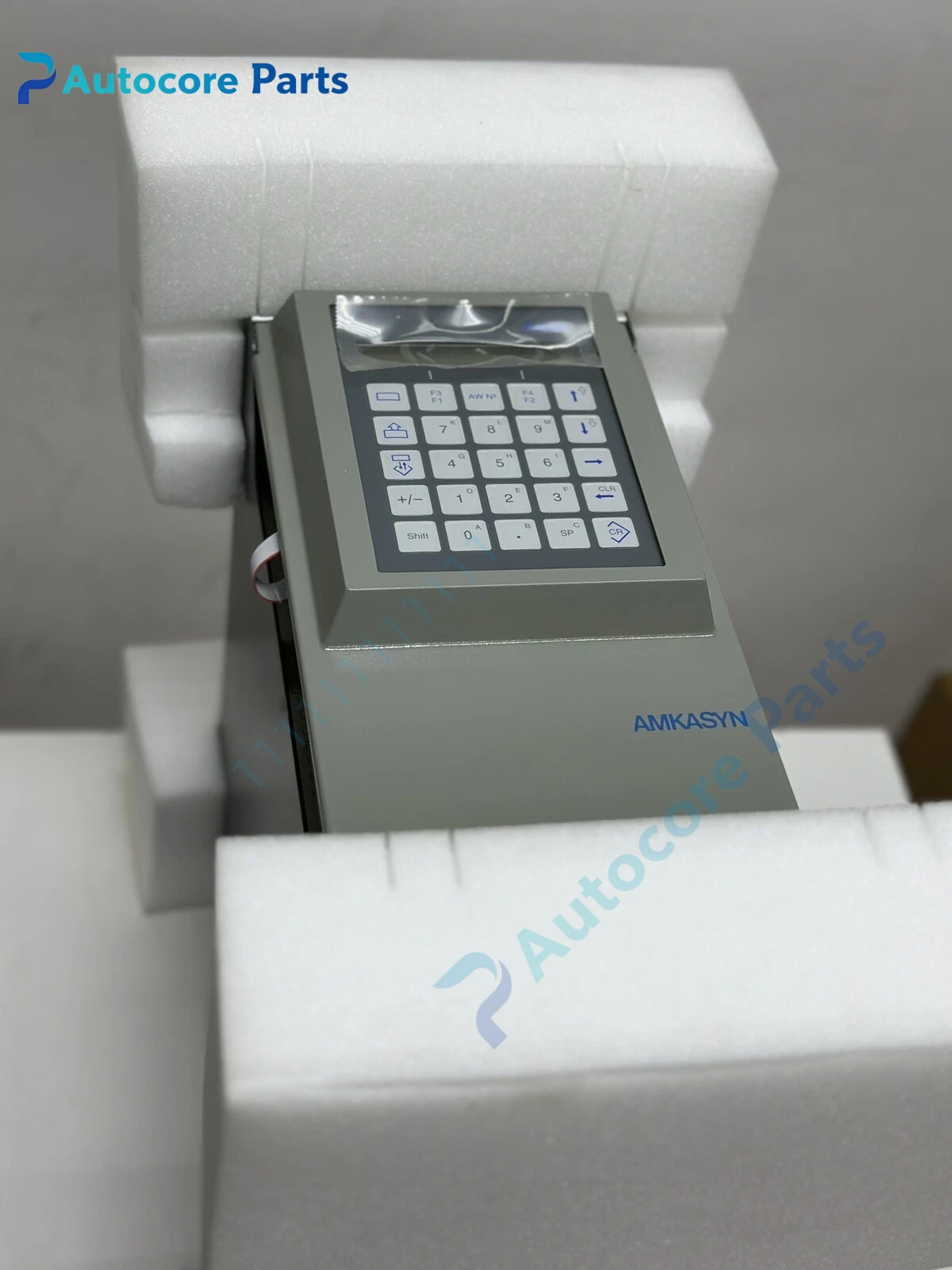

AMK 46014-0645 AMKASYN Regenerative Power Supply Unit

Module Feature

46014-0645 is AMK AMKASYN series regenerative servo power supply module, it works with AMK series servo inverters to constitute a shared DC bus drive system. Three-phase 400V AC input, rectifies AC into stable DC bus voltage for servo power modules. It supports energy regeneration, the kinetic energy generated by motor deceleration can be fed back to the power grid to save energy, different from ordinary rectifier with only brake resistor. Internal safety enable relay and hardware overvoltage, overcurrent protection are integrated. Multiple modules can be paralleled for higher power demand. It adopts forced air cooling, supports bus communication with AMK controller. Widely used for high-speed printing machines, CNC machine tools, packaging equipment and multi-axis robotic motion platforms.

Working principle

Three-phase industrial AC enters the rectifier unit. IGBT rectifier circuit converts AC to DC bus voltage for all connected servo inverters. When the servo motor decelerates, regenerative energy flows back into this power module; the regeneration circuit converts DC energy back into grid AC. The internal safety circuit monitors bus voltage, current and temperature, cuts off enable signal and locks output when fault occurs. It exchanges status and safety signals with the AMK motion controller.

Onboard componentsThree-phase IGBT rectifier stack, regeneration circuit, DC bus capacitor bank, current and voltage sampling circuit, safety relay, main control board, communication interface, cooling fan, power terminal block.

LED indicatorsFront LEDs for power ready, bus active, regeneration status and system fault; detailed fault codes can be viewed via AMK motion control software.

Hardware self‑diagnosisPower-on self-check detects input phase loss, bus overvoltage/undervoltage, output overcurrent, module overtemperature, fan stall, safety circuit anomaly and communication timeout. Fault records are stored inside the module.

Programming softwareAMK AMK Commander software for parameter setup, bus configuration, regeneration function enable and firmware upgrade.

Electrical & Process Parameters

Model:46014-0645 Brand:AMK Device type:Regenerative Servo Power Supply Input:3AC 400V Function:Supply stable DC bus and realize energy feedback for AMKASYN multi-axis servo drives

Mechanical & StructureMounting:Cabinet backplane mount Protection class:IP20 Housing:Metal chassis

EnvironmentalOperating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE compliant Status:AMK original AMKASYN spare power supply

InstallationInstall in ventilated electrical cabinet, reserve cooling clearance. Connect three-phase AC input, DC bus cable to servo inverters and safety control wiring. Configure bus address and regeneration parameters in AMK Commander. Test emergency stop and safety interlock function before commissioning. Keep cooling fan and air filter clean regularly.

Interface3-phase AC input terminals, DC bus +/- output terminals, safety enable terminals, communication connector.

DiagnosticBus overvoltage: Regeneration circuit disabled or grid instability. Phase loss alarm: Input fuse blown, loose power terminal. Over-temperature fault: Fan failure, blocked air duct or continuous heavy regeneration. Safety circuit fault: Enable loop open, safety relay damage.

Product BriefAMK 46014-0645 AMKASYN regenerative power supply module, 400V three-phase input, shared DC bus with energy feedback function, matched for AMK multi-axis servo drive system, applied to printing, packaging and CNC equipment.
