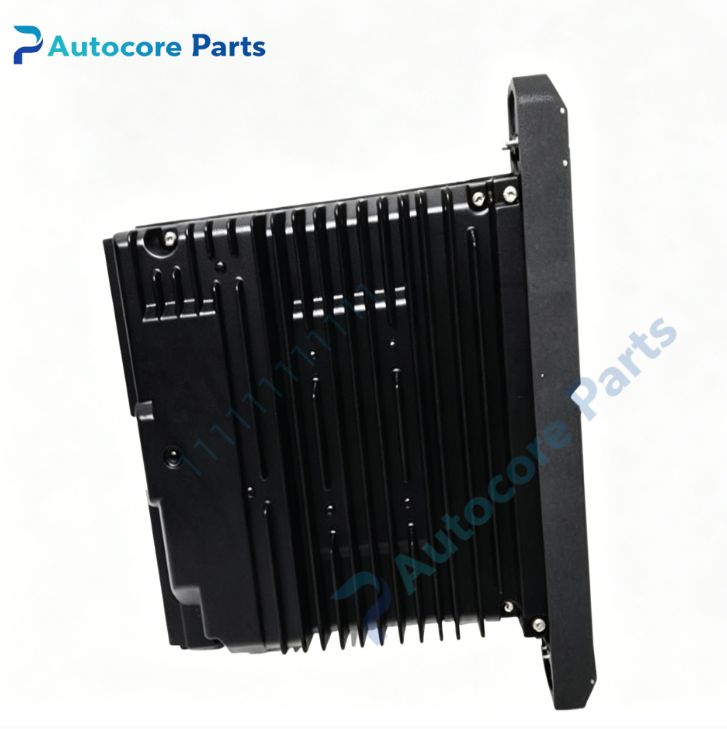

Yokogawa CENTUM CS3000 DCS CPU Processor Module

Technical Specifications

Model:CS3000DCSCPU (Common part number:CP401,CP451)

Brand:Yokogawa

CPU:32-bit RISC real-time processor,Pair & Spare dual MPU comparison architecture

Memory:ECC RAM,Flash memory for firmware storage

Control cycle:10ms ~ 10s configurable

Max control loops:2048

Max I/O points:8192

Communication port:Dual V-Net ports,RS232C service debugging port

Redundancy:1:1 hot standby redundant support,bumpless switchover

Power supply:24V DC,20.4~26.4V DC

Max power consumption:20W

Operating temperature:0~+50℃

Relative humidity:5~95% non-condensing

Weight:0.75kg

Certification:CE,UL

System compatibility

Designed for Yokogawa CENTUM CS3000 DCS system,installed in FCS field control station,works with FIO / RIO series I/O modules,widely used in petrochemical,power,chemical refining process control.

Function

CS3000 DCS CPU is the core processor of CENTUM CS3000 FCS field control station.It adopts Yokogawa unique Pair & Spare technology,two MPUs run same calculation and cross-check results to detect transient errors.It executes real-time PID control,interlock logic,sequence batch control,alarm management and trend data collection.Communicate with HIS operator station,engineering station and remote I/O modules via V-Net bus.Dual CPU redundant configuration supports seamless bumpless switchover once main processor fails.

Installation

Install on FCS chassis backplane slot,connect V-Net coaxial cable to network ports,configure control strategy and redundancy parameters via CENTUM CS3000 engineering software.Hot swap supported under redundant configuration.

Interface

‑Dual V-Net communication ports

‑RS232C service debug port

‑Internal backplane bus connector

‑LED indicators for run,standby,alarm and fault status

Circuit feature

ECC memory error correction,hardware watchdog,continuous hardware self-diagnosis,galvanic isolation for network interface,strong anti-electromagnetic interference,suitable for long-term uninterrupted industrial operation.

Feature

CS3000 DCS CPU belongs to Yokogawa CENTUM CS3000 FCS processor series,typical part number CP401 and CP451.Common faults:backup battery aging,V-Net connector poor contact,memory failure,backplane contact issue.Confirm firmware version before replacement.

Diagnostic

CPU operation error,memory fault,V-Net communication loss or module hardware fault triggers alarm and upload diagnostic information to HIS operator station.

Built‑in function

Real-time process control,logic interlock,alarm processing and system communication management for CS3000 DCS field control station,used for industrial DCS spare replacement.

Product Brief

CS3000DCSCPU is Yokogawa CENTUM CS3000 FCS core processor module with Pair & Spare redundant architecture,supports 1:1 hot standby bumpless switchover.Verify FCS chassis type and system firmware compatibility before ordering.ESD anti-static protection required during installation.
