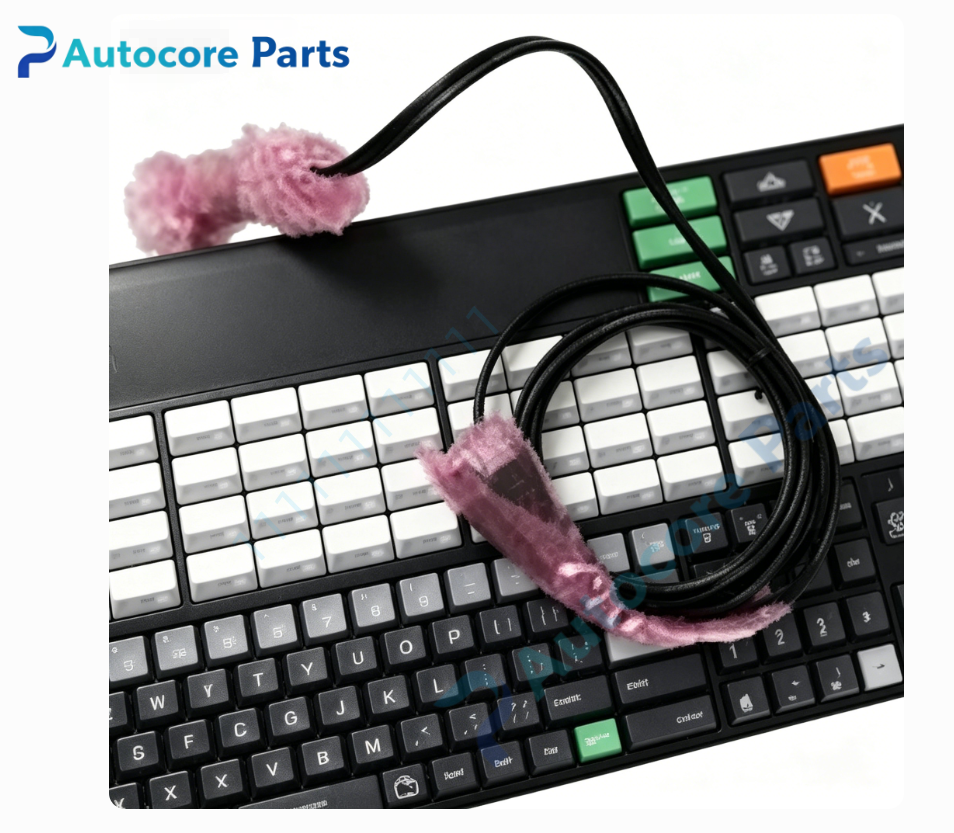

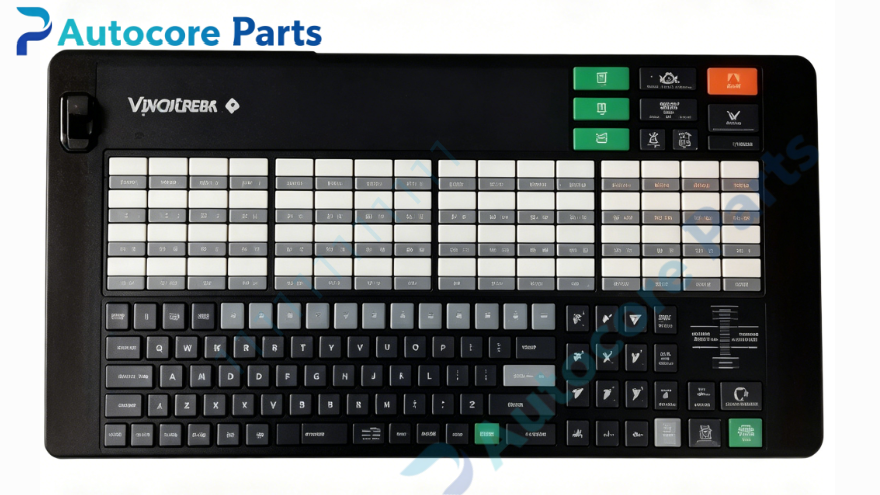

Yokogawa AIP830-001 Single-Loop Operation Keyboard

Technical Specifications

Model:AIP830-001

Brand:Yokogawa

Interface:Dual USB Type-A

USB standard:USB2.0 for keyboard,USB1.1 for audio

Power supply:5V DC,bus-powered from USB port

Max current consumption:1A

Built-in device:Integrated speaker & buzzer

Weight:2.0kg(without bracket),2.5kg(with VESA bracket)

VESA mount:75mm /100mm mounting hole

Operating temperature:5~40℃

Storage temperature:-20~+60℃

Relative humidity:20~80% non-condensing

Cable length:2300mm±100mm

Certification:CE,CSA

System compatibility

Designed for Yokogawa CENTUM VP DCS human interface station(HIS),realize single-loop operation,parameter adjustment and alarm confirmation,widely applied in petrochemical,power,chemical refining control room.

Function

AIP830-001 is single-loop operation keyboard for CENTUM VP HIS station.It provides dedicated keys for loop mode switch,setpoint adjustment,alarm acknowledgement.The built-in buzzer and speaker output alarm sound directly.Connect to HIS PC via dual USB cable,bus powered without extra power adapter.

Installation

Place on control desk or mount via VESA bracket.Connect two USB-A cables to HIS computer.Configure key function in CENTUM VP HMI software.

Interface

‑Dual USB Type-A connector

‑Built-in speaker and buzzer

‑Dedicated operation keys for single loop control

Circuit feature

USB bus powered design,isolated signal transmission,anti-interference,stable for continuous operation in control room.

Feature

AIP830-001 belongs to Yokogawa CENTUM VP operator accessory.Common faults:USB cable damage,key contact failure,speaker failure.Confirm HIS software version before replacement.

Diagnostic

USB communication failure,key malfunction or audio fault will show warning on HIS workstation.

Built‑in function

Single-loop operation,set value modification,alarm acknowledge and audio alarm reminder for DCS operator station,used for industrial DCS spare replacement.

Product Brief

AIP830-001 is Yokogawa CENTUM VP single-loop operation keyboard with USB bus power and built-in speaker.It supports loop operation and alarm confirmation.Check HIS hardware and software compatibility before ordering.ESD protection required during installation.
