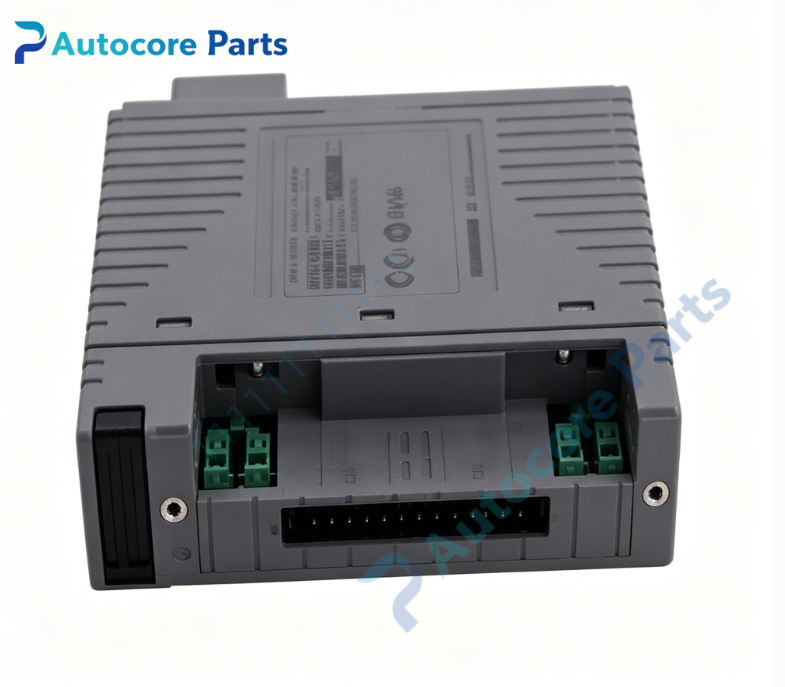

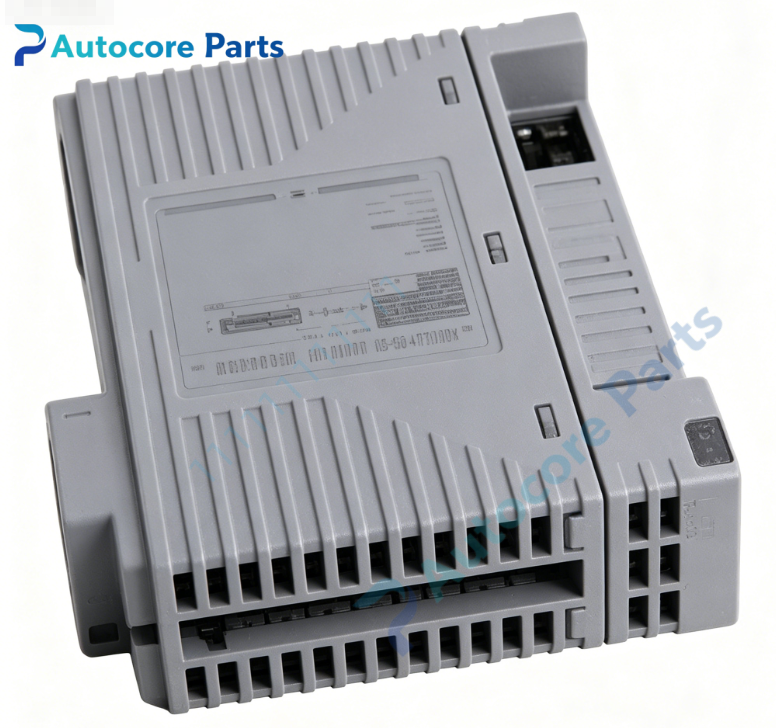

Yokogawa AAI143-H53 Analog Input Module

System compatibility

Designed for Yokogawa CENTUM VP DCS distributed control system,collect 4-20mA signal from pressure,flow,temperature,level transmitters,widely used in petrochemical,power,chemical and refining process control.

Function

AAI143-H53 is 16-channel isolated analog input module with HART function.It converts 4-20mA field analog signal into digital data and transmits to FCS controller.Channel can be set for 2-wire or 4-wire transmitter individually.HART digital communication reads transmitter parameter and diagnostic information over analog wiring.

Installation

Install on CENTUM VP FCS node unit backplane,connect field transmitters via pressure clamp terminal block or MIL connector cable,configure parameters by CENTUM VP engineering software.

Interface

‑Field signal terminal connector

‑Internal ESB bus backplane connector

‑LED indicators for run,alarm and channel fault

Circuit feature

Channel isolation design,anti-interference,overcurrent protection,continuous self-diagnosis,stable for harsh industrial environment.

Feature

AAI143-H53 belongs to Yokogawa CENTUM VP FIO series DCS I/O module.Common faults:terminal contact poor,cable damage,input circuit failure.Verify firmware version before replacement.

Diagnostic

Wire break,overrange,overcurrent or module hardware fault triggers alarm and upload diagnostic message to DCS controller.

Built‑in function

Collect process analog signals for DCS control system,support HART instrument configuration and diagnostics,used for industrial DCS spare replacement.

Product Brief

AAI143-H53 is Yokogawa CENTUM VP 16 channel isolated 4-20mA HART analog input module.It supports 2/4 wire transmitters,10ms fast update,ISA G3 environmental grade.Check system hardware compatibility before ordering.ESD protection required during installation.
