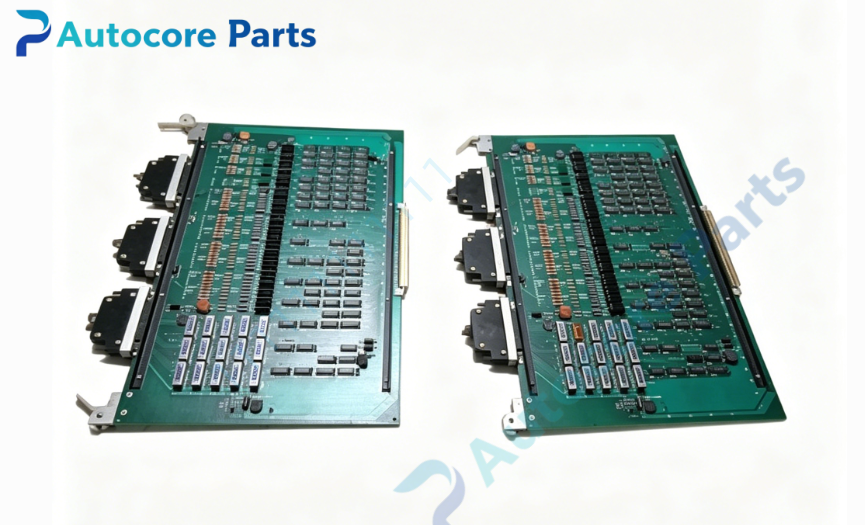

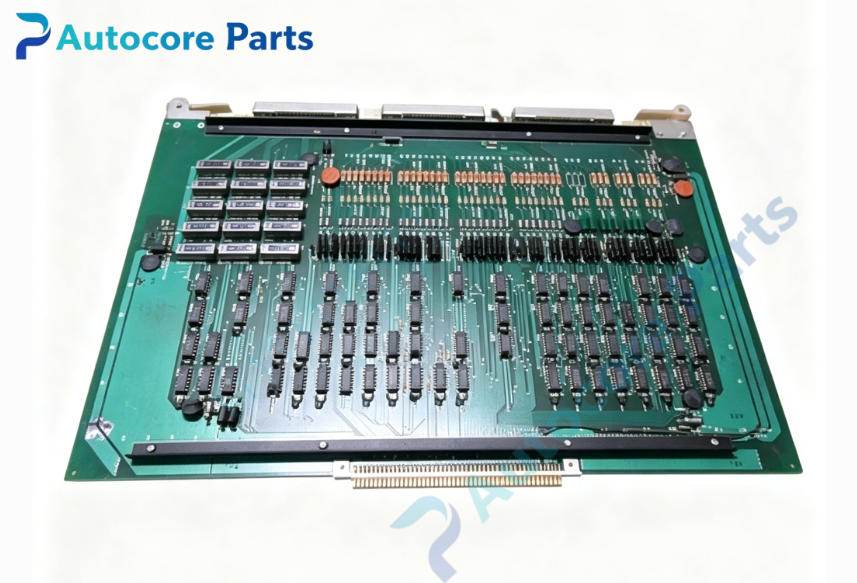

Yaskawa JANCD-E1001B I/O Interface Board

Technical Specifications

Model:JANCD-E1001B

Brand:Yaskawa

Product type:Yasnac vintage CNC I/O interface PCB board

Power supply:DC24V

Control function:External I/O signal buffering,signal level conversion,input/output signal acquisition and output,backplane bus data interaction

Communication:System backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.44kg

Certification:CE

System compatibility

JANCD-E1001B belongs to Yaskawa Yasnac CNC controller family,matched with vintage Yasnac CNC systems.Widely used in old CNC lathes,milling machines and machining centers.This is a discontinued legacy I/O interface board for old machine tool maintenance spare replacement.

Function

JANCD-E1001B serves as high precision Yasnac CNC I/O interface board.It collects digital input signals from machine peripheral components and outputs control signals to actuators,realizes signal level matching and noise filtering between CNC main system and machine side I/O devices.Built-in signal protection circuit to prevent surge shturl.cc acts as the core peripheral signal interface unit of Yasnac vintage CNC machine tool system.

Installation

Mount JANCD-E1001B inside CNC controller cabinet.Complete backplane bus connection according to wiring drawing.Backup CNC parameters before replacement,verify system boot and I/O signal function after power-up.

Interface

‑System backplane bus connector

‑Digital signal terminal block

‑Signal level conversion port

‑Onboard I/O signal processing circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit.Stable signal transmission,strong anti-interference performance for industrial cabinet environment.Standard factory firmware preloaded.

Feature

JANCD-E1001B is obsolete Yaskawa Yasnac series spare part.Typical failures include I/O signal loss,intermittent signal jump,backplane communication interruption.Check board integrity and connector pins before replacement.This board must match corresponding Yasnac CNC controller,direct substitution without parameter backup and function test is not recommended.

Diagnostic

When input signal missing,output failure or backplane communication fault occurs,the board triggers corresponding alarm codes and sends fault signal to CNC system.

Built‑in function

Digital input signal collection,control signal output,signal level conversion,signal noise filtering,used as Yasnac vintage CNC I/O interface board spare replacement.

Product Brief

JANCD-E1001B is Yaskawa Yasnac old CNC series I/O interface board for vintage CNC machine tools and precision automation equipment.Confirm CNC controller model matching before ordering.ESD protection required during handling and installation.
