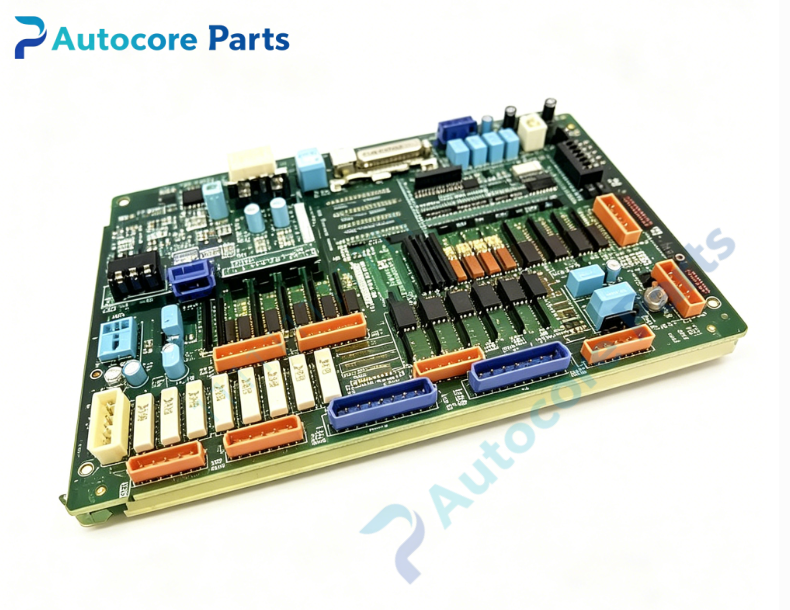

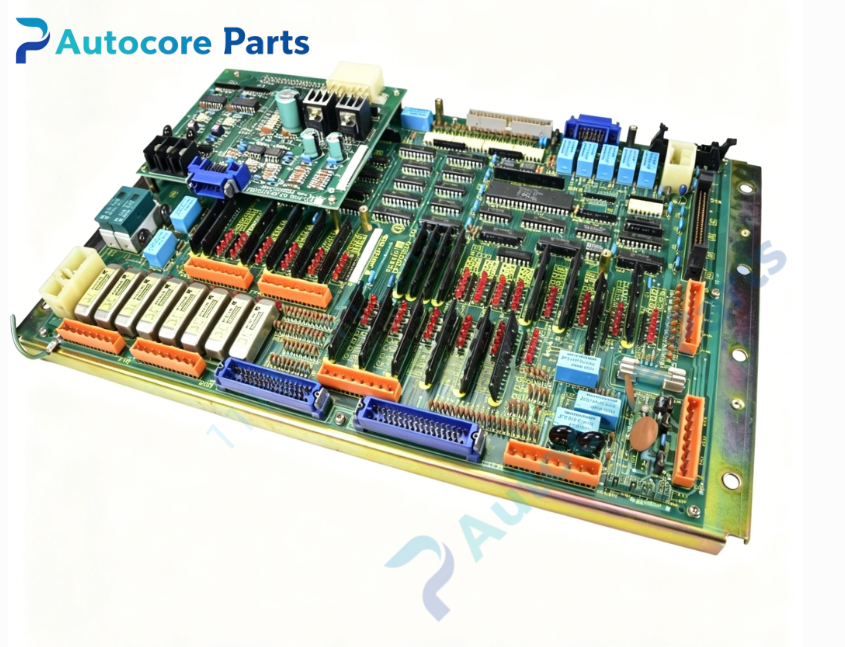

Yaskawa JANCD-1006 Interface Board

Technical Specifications

Model:JANCD-1006

Brand:Yaskawa

Product type:Yasnac CNC interface PCB board

Power supply:DC24V

Control function:External device signal conversion,serial/parallel signal transmission,peripheral unit data exchange,signal level conversion and filtering

Communication:System backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.42kg

Certification:CE

System compatibility

JANCD-1006 belongs to Yaskawa Yasnac CNC controller family,matched with Yasnac old series CNC systems. Widely used in vintage CNC lathes and milling machines. This is a discontinued legacy interface board for old machine tool maintenance spare replacement.

Function

JANCD-1006 serves as high precision CNC interface board. It realizes signal conversion and data transmission between CNC host and peripheral external devices,converts different electrical level signals to match CNC main system. Built-in signal filtering and ESD protection circuit to suppress workshop interference. It acts as signal bridge for CNC host and peripheral components.

Installation

Mount JANCD-1006 inside CNC controller cabinet. Complete backplane bus and external device wiring according to wiring drawing. Backup CNC parameters before replacement,verify signal transmission between CNC and peripheral equipment after power-up.

Interface

‑System backplane bus connector

‑External peripheral signal port

‑Level conversion terminal

‑Onboard signal filtering and protection circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Stable signal transmission,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

JANCD-1006 is obsolete Yaskawa Yasnac series spare part. Typical failures include port pin oxidation,signal attenuation,intermittent communication. Check board integrity and connector pins before replacement. This board must match corresponding Yasnac CNC controller,direct substitution without signal communication test is not recommended.

Diagnostic

When peripheral device communication dropout,signal distortion or hardware timeout occurs,the board triggers corresponding alarm codes and sends fault signal to CNC main controller.

Built‑in function

Peripheral signal level conversion,CNC and external device data exchange,signal noise filtering,communication fault monitoring,used as Yasnac CNC interface board spare replacement.

Product Brief

JANCD-1006 is Yaskawa Yasnac CNC series interface board for CNC machine tools and precision automation equipment. Confirm CNC controller model matching before ordering. ESD protection required during handling and installation.
