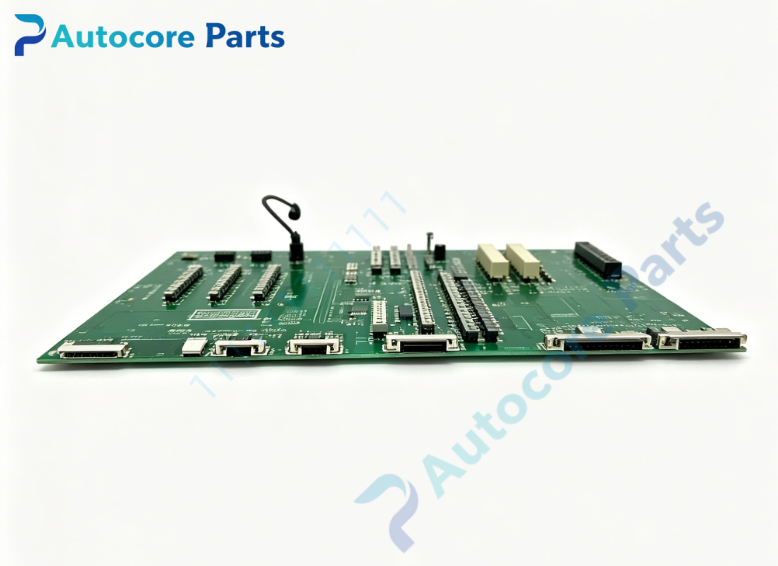

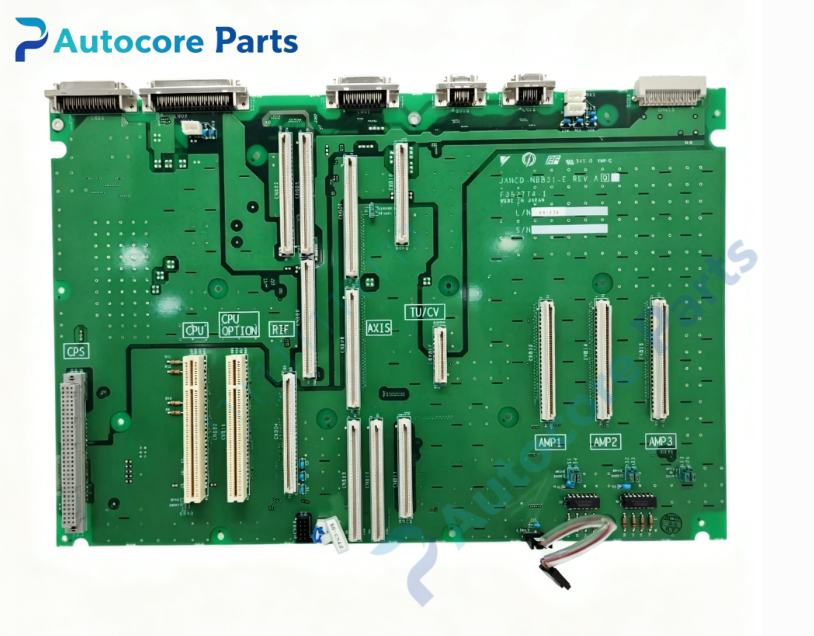

Yaskawa F352774-1 Spindle Control Board

Technical Specifications

Model:F352774-1

Brand:Yaskawa

Product type:Yasnac CNC spindle control PCB board

Power supply:DC24V

Control function:Spindle speed command transmission,spindle encoder signal acquisition,speed feedback decoding,spindle safety interlock signal processing

Communication:System backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.44kg

Certification:CE

System compatibility

F352774-1 belongs to Yaskawa Yasnac CNC controller family,matched with Yasnac old series CNC systems and spindle drive units. Widely used in CNC lathes,milling machines and machining centers. This is a discontinued legacy spindle control board for old machine tool maintenance spare replacement.

Function

F352774-1 serves as high precision CNC spindle control board. It receives spindle rotation instructions from CNC main CPU board,outputs analog or serial speed command to spindle amplifier. It collects spindle encoder feedback signals to detect actual spindle speed and position,realizes spindle orientation and rigid tapping function. Built-in surge and ESD protection circuit to guarantee stable spindle signal transmission.

Installation

Mount F352774-1 inside CNC controller cabinet. Complete backplane bus and spindle encoder wiring according to wiring drawing. Backup CNC parameters before replacement,verify spindle speed regulation and orientation function after power-up.

Interface

‑System backplane bus connector

‑Spindle encoder signal port

‑Spindle command output terminal

‑Onboard signal decoding and isolation circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Stable signal transmission,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

F352774-1 is obsolete Yaskawa Yasnac series spare part. Typical failures include encoder pin damage,spindle speed fluctuation,communication dropout. Check board integrity and connector pins before replacement. This board must match corresponding Yasnac CNC controller,direct substitution without spindle function test is not recommended.

Diagnostic

When spindle speed anomaly,orientation failure or hardware timeout occurs,the board triggers corresponding alarm codes and sends fault signal to CNC main controller.

Built‑in function

Spindle speed command output,spindle encoder signal decoding,spindle orientation control,safety interlock processing,spindle speed monitoring,used as Yasnac CNC spindle control board spare replacement.

Product Brief

F352774-1 is Yaskawa Yasnac CNC series spindle control board for CNC machine tools and precision automation equipment. Confirm CNC controller model matching before ordering. ESD protection required during handling and installation.
