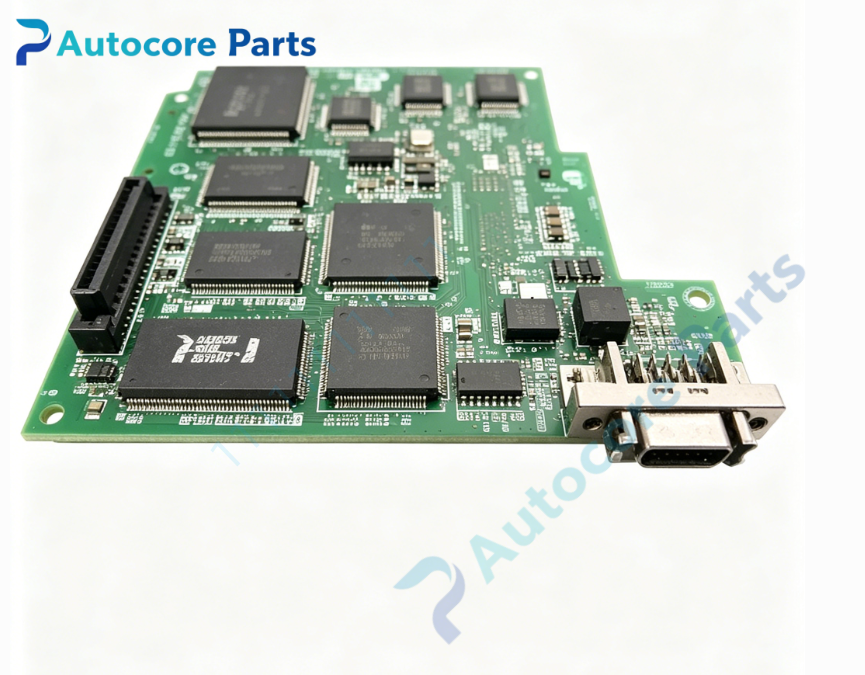

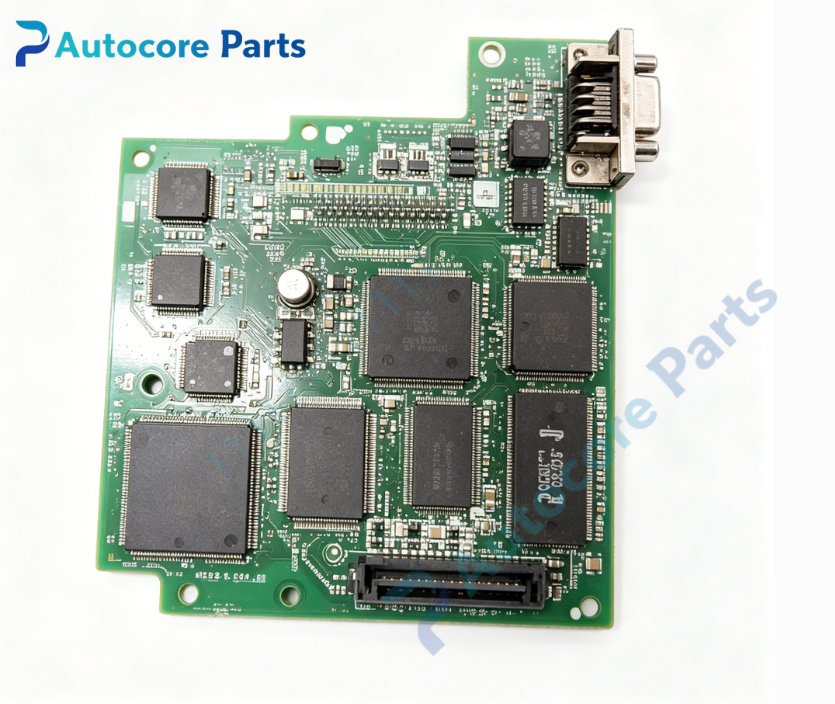

Yaskawa DF9303053-B1 CNC Main Control Board

Technical Specifications

Model:DF9303053-B1 (JANCD-XFC01)

Brand:Yaskawa

Product type:CNC main control PCB board

Power supply:DC24V

Control function:CNC part program decoding,multi-axis motion interpolation calculation,system parameter management,peripheral board bus scheduling

Communication:System backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.40kg

Certification:CE

System compatibility

DF9303053-B1 belongs to Yaskawa Yasnac CNC controller family,matched with Yasnac series CNC system and supporting functional boards. Widely used in CNC lathes,milling machines and precision machine tools. This is a discontinued legacy CNC main control board for old machine tool maintenance spare replacement.

Function

DF9303053-B1 serves as high precision CNC main control board. It reads and decodes NC machining programs,executes multi-axis interpolation operation,distributes motion instructions to servo control board,manages system parameters,alarm information and peripheral I/O signal scheduling. Built-in surge and ESD protection circuit to ensure stable system operation. It acts as the core processing unit of Yasnac CNC machine tool system.

Installation

Mount DF9303053-B1 inside CNC controller cabinet. Complete backplane bus wiring according to wiring drawing. Backup CNC parameters before replacement,verify system boot and axis motion function after power-up.

Interface

‑System backplane bus connector

‑Memory card slot

‑Serial communication port

‑Onboard program processing and signal protection circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast program calculation response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9303053-B1 is obsolete Yaskawa Yasnac series spare part. Typical failures include system boot failure,program decoding error,bus communication interruption. Check board integrity and connector pins before replacement. This board must match corresponding Yasnac CNC controller,direct substitution without parameter backup and function test is not recommended.

Diagnostic

When CNC boot failure,program execution error or backplane communication fault occurs,the board triggers corresponding alarm codes and sends fault signal to CNC system.

Built‑in function

NC program decoding,multi-axis interpolation calculation,system parameter storage,peripheral board bus management,system alarm collection,used as CNC main control board spare replacement.

Product Brief

DF9303053-B1 (JANCD-XFC01) is Yaskawa Yasnac CNC system main control board for CNC machine tools and precision automation equipment. Confirm CNC controller model matching before ordering. ESD protection required during handling and installation.
