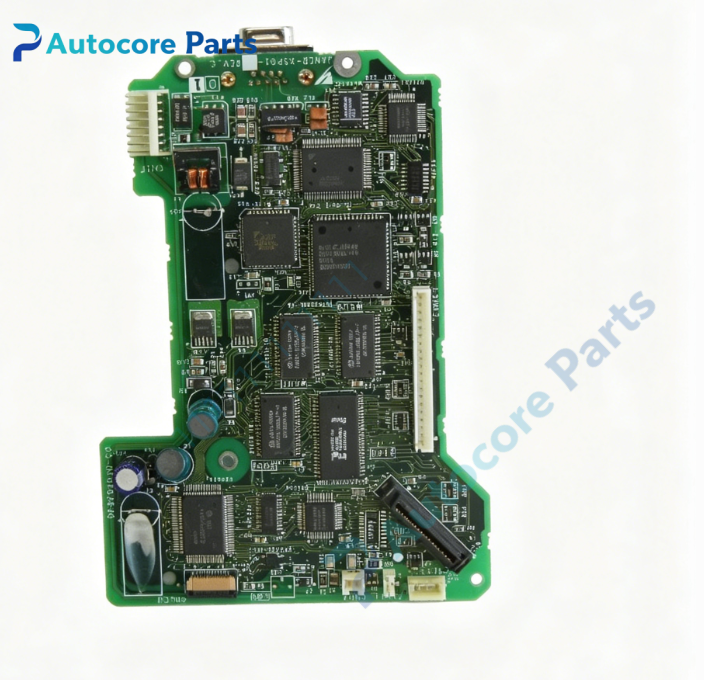

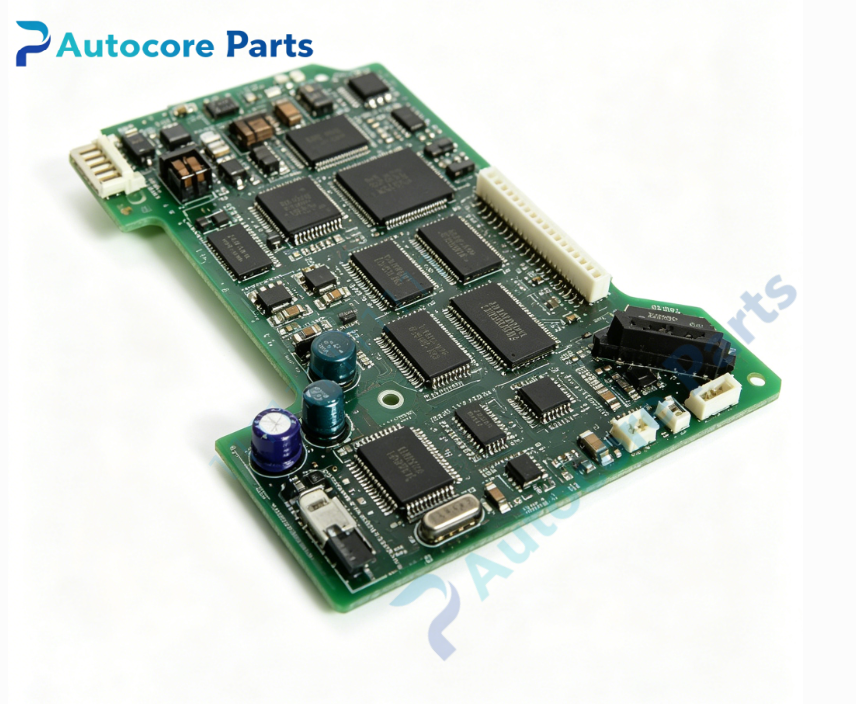

Yaskawa DF9203020-C0 I/O Board

Technical Specifications

Model:DF9203020-C0 (JANCD-MIO01)

Brand:Yaskawa

Product type:Robot digital I/O control PCB board

Power supply:DC24V

Control function:Digital input signal collection,digital output driving,external interlock and safety signal processing

Communication:Robot backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.54kg

Certification:CE

System compatibility

DF9203020-C0 belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR servo drives. Widely used in Motoman welding robots,material handling robots and automated production lines. This is a discontinued legacy robot I/O board for robot maintenance spare replacement.

Function

DF9203020-C0 serves as high precision robot digital I/O board. It collects external limit switch,photoelectric sensor and interlock input signals,outputs switching signals to control solenoid valves and peripheral actuators. Built-in opto-isolation circuit to isolate field side noise. It realizes signal interaction between robot controller and peripheral automation equipment.

Installation

Mount DF9203020-C0 inside robot controller cabinet. Complete backplane bus and field wiring according to wiring drawing. Check wiring definition before power on,verify all input and output channels after power-up.

Interface

‑Multi-channel digital input terminal

‑Multi-channel digital output terminal

‑Robot backplane bus connector

‑Onboard opto-isolation and protection circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Stable digital signal transmission,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9203020-C0 is obsolete Yaskawa MRC robot series spare part. Typical failures include IO channel burnout,signal reading failure,port short circuit. Check board integrity and terminal pins before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without channel function test is not recommended.

Diagnostic

When IO channel no response,signal distortion or hardware fault occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller.

Built‑in function

Digital input signal acquisition,digital output drive,external interlock signal processing,overcurrent protection,IO channel fault monitoring,used as robot digital I/O board spare replacement.

Product Brief

DF9203020-C0 (JANCD-MIO01) is Yaskawa MRC robot series digital I/O board for industrial robot and factory automation equipment. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
