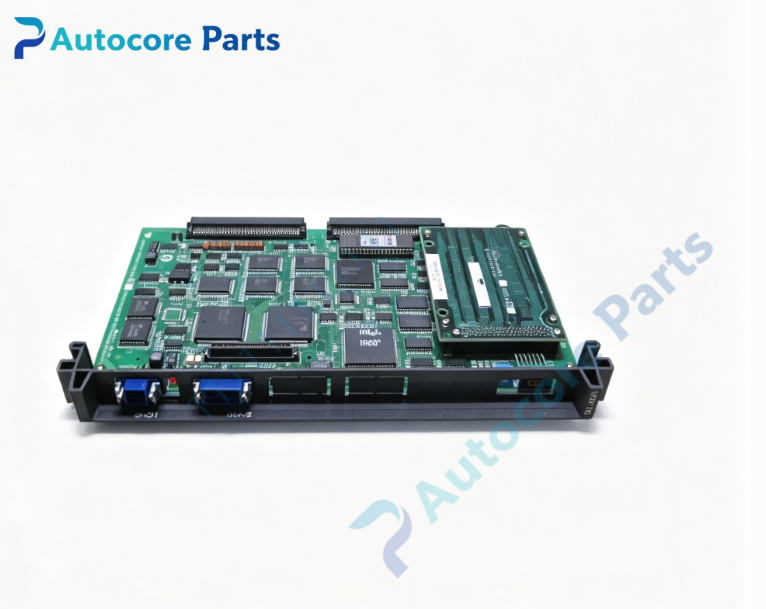

Yaskawa DF9202142-D0N Main Control Board

Technical Specifications

Model:DF9202142-D0N (JANCD-MCP10 REV D0)

Brand:Yaskawa

Product type:Robot main CPU control PCB board

Power supply:DC24V

Control function:Robot kinematics calculation,multi-axis trajectory planning,robot teaching program operation,system resource scheduling

Communication:Robot backplane bus,Mechatrolink bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.66kg

Certification:CE

System compatibility

DF9202142-D0N belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR servo amplifiers. Widely used in Motoman welding robots,material handling robots and precision automation equipment. This is a discontinued legacy robot main control board for old production line maintenance spare replacement.

Function

DF9202142-D0N serves as high precision robot main CPU control board. It completes robot kinematics solving and continuous trajectory planning,distributes real-time synchronized motion commands to each axis servo amplifier. Built-in hardware watchdog circuit to prevent abnormal robot movement. It executes robot teaching programs and collects fault signals from each functional board inside controller.

Installation

Mount DF9202142-D0N inside robot controller cabinet. Complete backplane bus connection according to wiring drawing. Backup robot axis parameters and program before replacement,download and verify program data after installation.

Interface

‑Robot backplane bus connector

‑Mechatrolink servo command port

‑Internal high-speed data interface

‑Onboard motion calculation CPU circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast multi-axis calculation response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9202142-D0N is obsolete Yaskawa MRC robot series spare part. Typical failures include CPU hardware anomaly,bus communication dropout,robot program parsing failure. Check board integrity and connector pin condition before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without parameter backup is not recommended.

Diagnostic

When bus communication interruption,hardware watchdog timeout or program loading error occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller and teach pendant.

Built‑in function

Robot kinematics and trajectory calculation,multi-axis synchronous motion control,robot program operation,system hardware fault monitoring,used as robot main CPU control board spare replacement.

Product Brief

DF9202142-D0N (JANCD-MCP10 REV D0) is Yaskawa MRC robot series main CPU control board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
