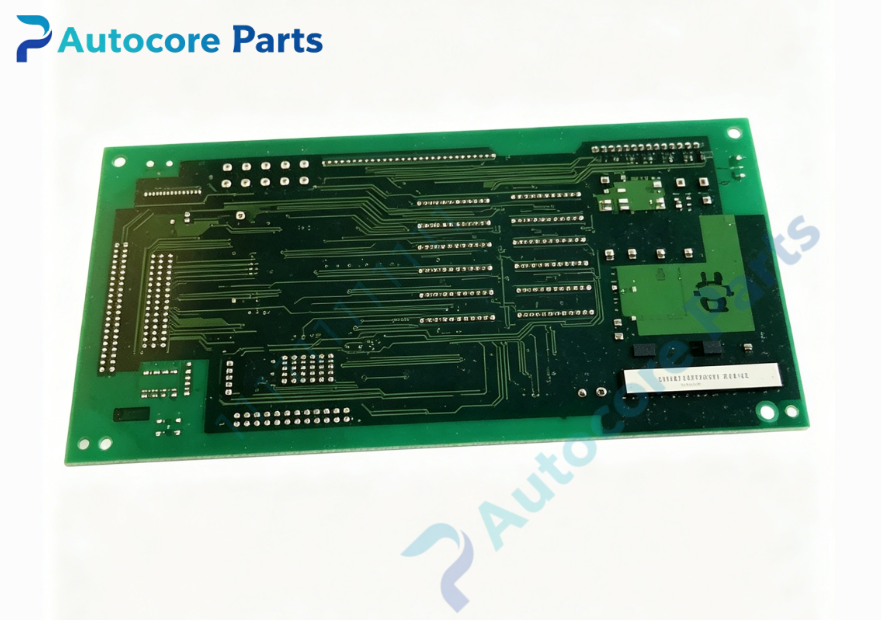

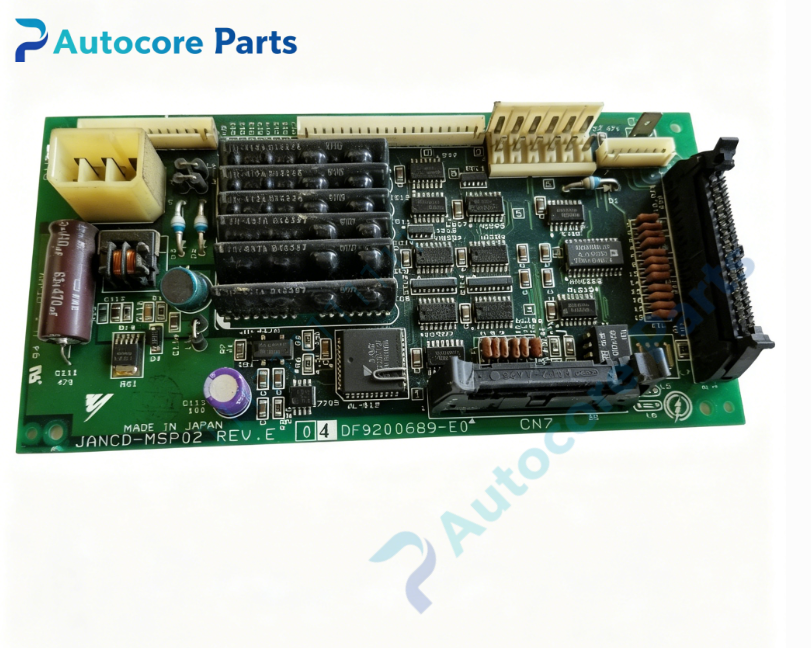

Yaskawa DF9200689-E0 Motion Control Board

Technical Specifications

Model:DF9200689-E0 (JANCD-MSP02)

Brand:Yaskawa

Product type:Robot multi-axis motion control PCB board

Power supply:DC24V

Control function:Robot kinematics calculation,multi-axis trajectory planning,servo command distribution,axis synchronous scheduling

Communication:Robot backplane bus,Mechatrolink bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.64kg

Certification:CE

System compatibility

DF9200689-E0 belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR servo drives. Widely used in welding robots,material handling robots and precision automation equipment. This is a discontinued legacy robot motion control board for old production line maintenance spare replacement.

Function

DF9200689-E0 serves as high precision robot multi-axis motion control board. It performs robot kinematics solving and continuous trajectory planning,distributes real-time motion instructions to each servo amplifier through Mechatrolink bus. Built-in hardware watchdog protection to avoid abnormal movement. It guarantees smooth synchronous operation of multiple robot axes.

Installation

Mount DF9200689-E0 inside robot controller cabinet. Complete backplane bus wiring according to wiring drawing. Backup robot parameters before replacement,download program and axis calibration data after installation.

Interface

‑Robot backplane bus connector

‑Mechatrolink servo bus port

‑Internal high-speed data interface

‑Onboard high-speed motion calculation CPU circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast kinematics calculation response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9200689-E0 is obsolete Yaskawa MRC robot series spare part. Typical failures include bus communication error,trajectory calculation anomaly,program parsing failure. Check board integrity and connector pins before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without parameter backup is not recommended.

Diagnostic

When bus communication interruption,calculation overflow or hardware fault occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller and teach pendant.

Built‑in function

Robot kinematics calculation,multi-axis synchronous trajectory control,servo motion command distribution,hardware fault monitoring,used as robot multi-axis motion control board spare replacement.

Product Brief

DF9200689-E0 (JANCD-MSP02) is Yaskawa MRC robot series multi-axis motion control board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
