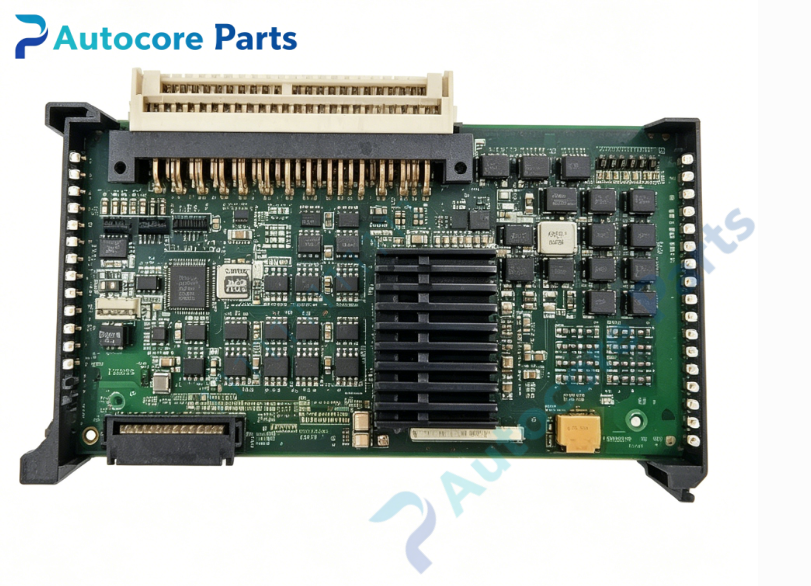

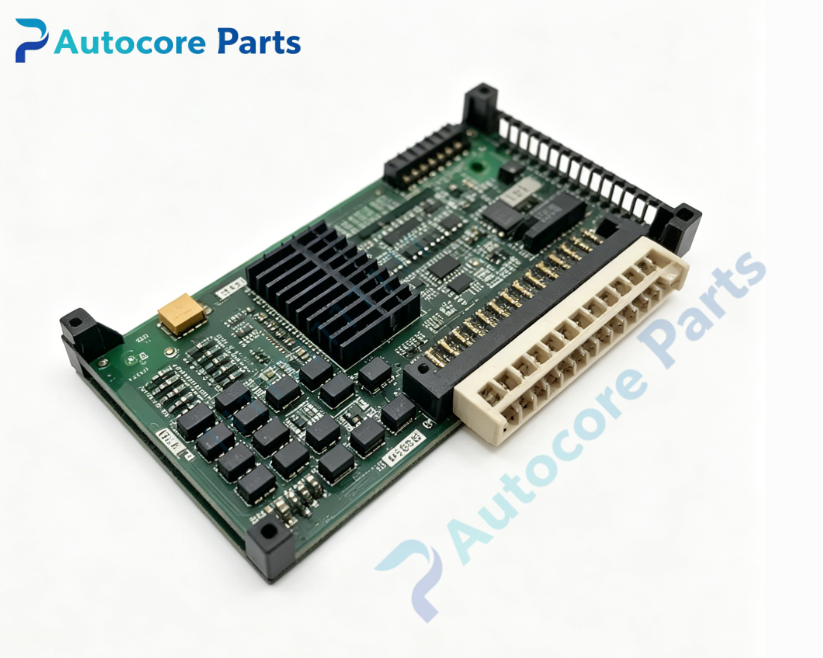

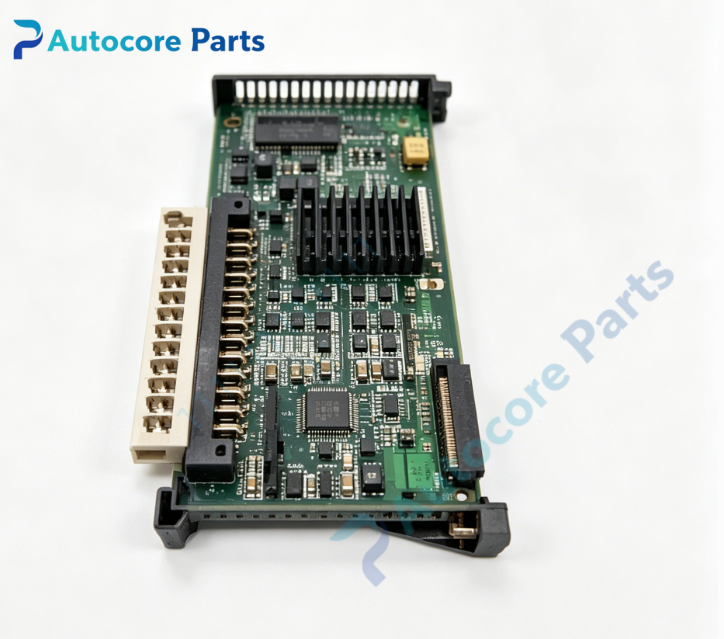

Yaskawa DF9200676-D0Nv Power Distribution Board

Technical Specifications

Model:DF9200676-D0Nv (JANCD-MTU01)

Brand:Yaskawa

Product type:Robot power distribution PCB board

Power supply:DC24V,DC100V

Control function:Power branch distribution,overload/short-circuit monitoring,hardware circuit protection

Communication:Robot backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.61kg

Certification:CE

System compatibility

DF9200676-D0Nv belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR servo drives. Widely used in welding robots,material handling robots and special automation equipment. This is a discontinued legacy power distribution board for old production line maintenance spare replacement.

Function

DF9200676-D0Nv serves as high precision robot power distribution board. It distributes multiple power branches inside robot controller,monitors power status of each channel. Built-in fuse and hardware protection to prevent overload damage to upstream control boards. It provides stable power supply for robot servo and peripheral signal circuits.

Installation

Mount DF9200676-D0Nv inside robot controller cabinet. Complete main power input and branch power wiring according to wiring drawing. Inspect fuse status and power output after installation.

Interface

‑Main power input connector

‑Multi-channel branch power output port

‑Robot backplane bus communication port

‑Onboard power monitoring and protection circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast overcurrent cut-off response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9200676-D0Nv is obsolete Yaskawa MRC robot series spare part. Typical failures include fuse burnout,power channel open circuit,voltage instability. Check board integrity and fuse condition before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without wiring inspection is not recommended.

Diagnostic

When overload,overcurrent,short circuit or power loss occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller.

Built‑in function

Multi-channel power distribution,power status monitoring,overload and short-circuit protection,system power interlock monitoring,used as robot power distribution board spare replacement.

Product Brief

DF9200676-D0Nv (JANCD-MTU01) is Yaskawa MRC robot series power distribution board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
