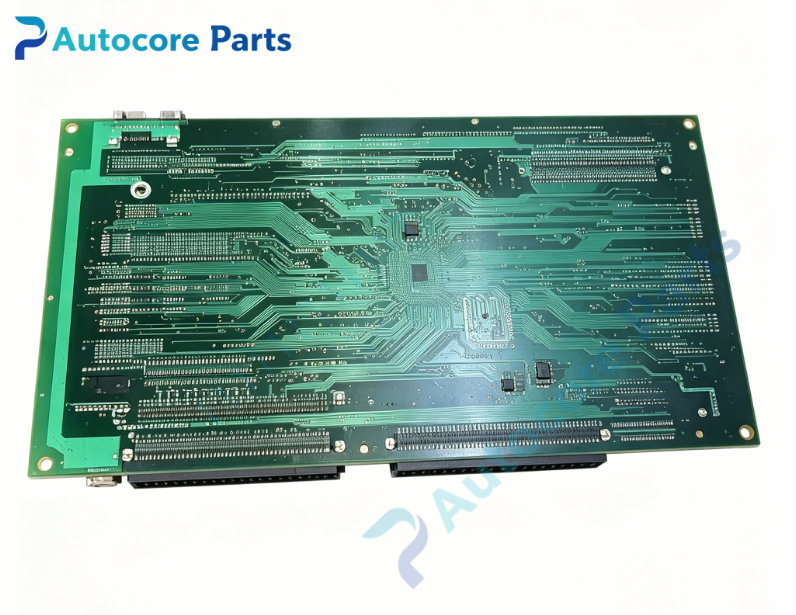

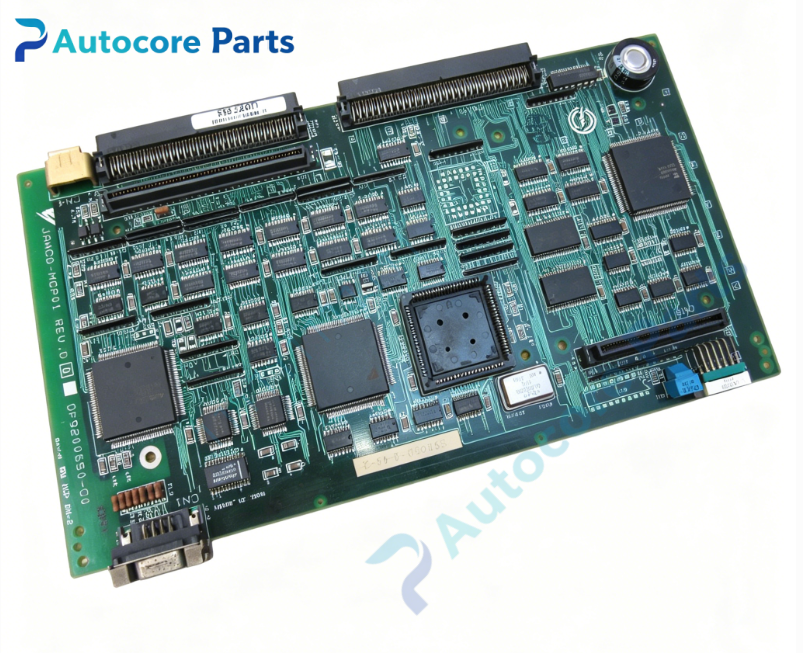

Yaskawa DF9200650-C0N Main Control Board

Technical Specifications

Model:DF9200650-C0N (JANCD-MCP01)

Brand:Yaskawa

Product type:Robot main CPU control PCB board

Power supply:DC24V

Control function:Robot motion planning,trajectory calculation,axis coordination,system task scheduling

Communication:Robot backplane bus,Mechatrolink bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.66kg

Certification:CE

System compatibility

DF9200650-C0N belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR servo drives. Widely used in welding robots,handling robots and special automation equipment. This is a discontinued legacy robot main control board for old production line maintenance spare replacement.

Function

DF9200650-C0N serves as high precision robot main control board. It performs robot kinematics calculation and motion trajectory planning,distributes motion commands to each servo axis via Mechatrolink bus. Built-in multi-level hardware protection to safeguard robot motion system. It supports real-time multi-axis synchronous control and robot program execution.

Installation

Mount DF9200650-C0N inside robot controller cabinet. Complete backplane wiring according to wiring drawing. Upload robot program and axis parameters via Yaskawa robot software after replacement.

Interface

‑Robot backplane bus connector

‑Mechatrolink servo bus port

‑Program storage expansion slot

‑Onboard high-speed CPU processing circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast kinematics calculation response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9200650-C0N is obsolete Yaskawa MRC robot series spare part. Typical failures include CPU operation anomaly,bus communication breakdown,program loading failure. Check board integrity before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without parameter backup is not recommended.

Diagnostic

When bus communication loss,program parsing error or hardware fault occurs,the board triggers corresponding alarm codes and sends fault signal to robot teach pendant.

Built‑in function

Robot kinematics and trajectory calculation,multi-axis motion coordination,robot program execution,system fault monitoring,multi-level hardware protection for robot motion system,used as robot main control board spare replacement.

Product Brief

DF9200650-C0N (JANCD-MCP01) is Yaskawa MRC robot series main CPU control board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
