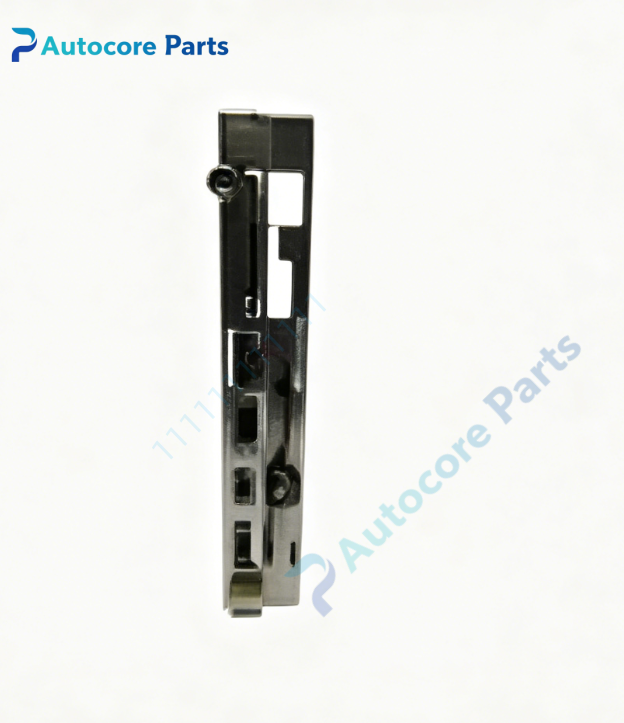

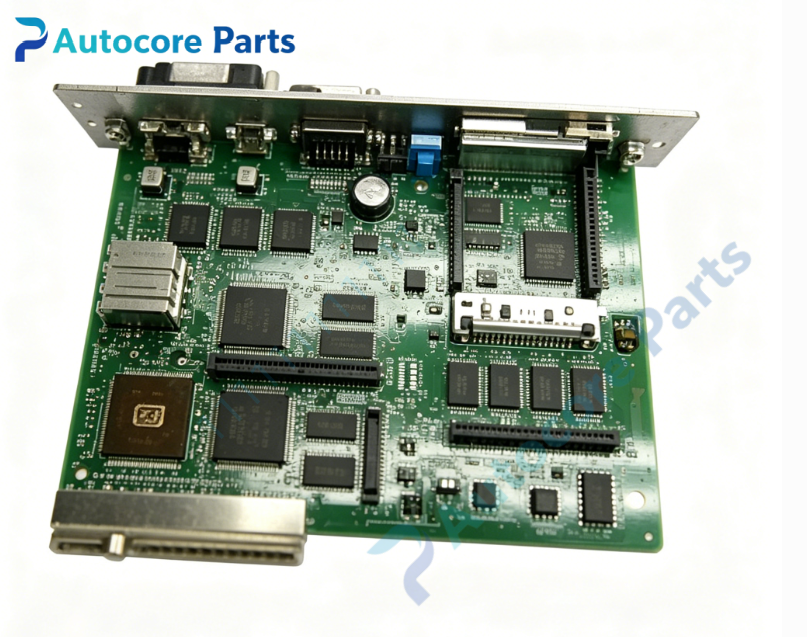

Yaskawa DF0200243 Control Board

Technical Specifications

Model:DF0200243-A0 (JANCD-XCP01C-1)

Brand:Yaskawa

Product type:Multi-axis motion control PCB board

Power supply:DC24V

Control function:Multi-axis interpolation,logic operation,command transmission

Communication:Mechatrolink bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.45kg

Certification:CE

System compatibility

DF0200243-A0 belongs to Yaskawa MP / CACR-SR servo system family,matched with CACR-SR series servo drives and servo motors. Widely used in chip mounters,precision X-Y positioning platforms and special automation equipment. This is a discontinued legacy control board for old production line maintenance spare replacement.

Function

DF0200243-A0 serves as high precision motion control main board. It executes motion algorithm and logic calculation,transmits motion commands to servo drives via Mechatrolink bus. Built-in multi-level hardware protection to guarantee stable multi-axis system operation. It supports electronic gearing,cam function and multi-axis synchronous interpolation.

Installation

Mount DF0200243-A0 in controller rack. Complete bus wiring and power wiring according to wiring drawing. Configure axis parameters via Yaskawa servo software.

Interface

‑Mechatrolink bus communication port

‑Digital I/O terminal block for signal interaction

‑Front panel LED status indicators

‑Onboard high-speed signal processing circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast deterministic bus response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF0200243-A0 is obsolete Yaskawa motion control spare part. Typical failures include PCB damage,communication port breakdown. Check board integrity before replacement. This board must match corresponding servo system,direct substitution without parameter validation is not recommended.

Diagnostic

When communication failure,signal loss or overheating occurs,the board triggers corresponding alarm codes and sends fault signal to upper HMI.

Built‑in function

Multi-axis motion interpolation,real-time logic processing,system status monitoring,multi-level hardware fault protection for servo motion system,used as motion controller spare replacement.

Product Brief

DF0200243-A0 (JANCD-XCP01C-1) is Yaskawa motion control board for dedicated semiconductor and precision automation machinery. Confirm system matching before ordering. ESD protection required during handling and installation.
