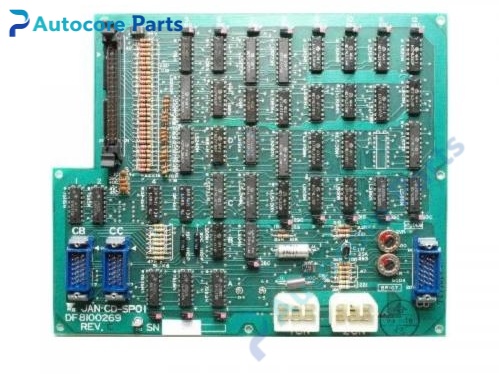

Yaskawa CD-SP01 Servo Component

Technical Specifications

Model:CD-SP01

Brand:Yaskawa

Product type:SR series servo system spare component

Power rating:Matched with SR series servo drive

Input voltage:AC200-230V single phase

Application:Position & speed motion control

Cooling:natural air cooling

Mounting:Panel mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

CD-SP01 belongs to Yaskawa SR servo family,matched with CACR-SR series servo drives and corresponding servo motors. Widely used in chip mounters,precision X-Y positioning platforms and special automation equipment. This is a discontinued legacy servo spare part for old production line maintenance spare replacement.

Function

CD-SP01 serves as auxiliary spare component for SR servo system. It supports signal transmission and auxiliary motion control for servo unit. Built-in multi-level hardware protection to stabilize servo system operation. It supports parameter matching for original machine motion requirements.

Installation

Mount CD-SP01 on control cabinet panel. Complete wiring according to wiring drawing. Match parameters with CACR-SR series servo drive via Yaskawa servo software.

Interface

‑Signal terminals for servo system connection

‑Digital I/O terminal block for signal interaction

‑Front panel status LED indicators

‑Onboard signal processing circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Stable signal transmission performance,good anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

CD-SP01 is obsolete Yaskawa SR series servo spare part. Typical failures include circuit board damage,signal port breakdown. Check component integrity before replacement. This component must match corresponding CACR-SR series servo drive,direct substitution without hardware validation is not recommended.

Diagnostic

When circuit fault,signal loss or overheating occurs,the component triggers corresponding alarm codes and sends fault signal to upper controller.

Built‑in function

Auxiliary signal transmission,system status monitoring,multi-level hardware fault protection for servo motion system,used as servo system spare replacement.

Product Brief

CD-SP01 is Yaskawa SR series servo auxiliary spare component for dedicated semiconductor and automation machinery. Confirm model matching before ordering. ESD protection required during handling and installation.
