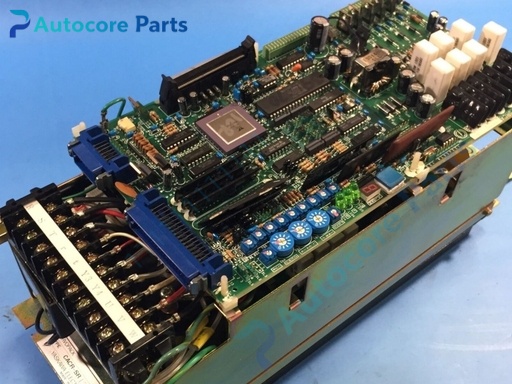

Yaskawa CACR-SR15BZ1SS-Y367 Servo Drive

Technical Specifications

Model:CACR-SR15BZ1SS-Y367

Brand:Yaskawa

Product type:SR series AC SERVOPACK servo drive (Y367 custom variant)

Power rating:1.5kW

Input voltage:AC200-230V,single phase

Control mode:Pulse position control,vector speed & torque control

Rated output current:10A

Cooling:natural air cooling

Mounting:Panel mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:2.02kg

Certification:CE

System compatibility

CACR-SR15BZ1SS-Y367 belongs to Yaskawa SR servo series,matched with corresponding 1.5kW USAREM series servo motor. Suffix Y367 represents factory customized firmware and modified I/O signal timing for specific original equipment. Widely applied in placement machines,precision X-Y tables and special automation machinery. This is a discontinued legacy servo amplifier for old production line maintenance spare replacement.

Function

CACR-SR15BZ1SS-Y367 is high precision AC servo amplifier unit. It accepts pulse position command from upper controller to realize fast speed and torque adjustment. Built-in multi-level hardware protection functions to protect servo motor and servo drive from abnormal operating conditions. Y367 custom version comes with preloaded dedicated parameters and optimized signal response curve for target machine.

Installation

Mount CACR-SR15BZ1SS-Y367 on control cabinet panel. Wire main power cable,motor power cable and encoder feedback cable following wiring drawing. Complete parameter configuration and motor auto-tuning via Yaskawa servo engineering software.

Interface

‑Power terminals for main power and motor power output

‑Encoder feedback connector

‑Digital I/O terminal block for pulse command and alarm signal

‑Front panel LED indicators for power,operation and fault status

‑Onboard current loop processing and multi-point fault diagnosis circuit

Circuit feature

Compact rugged PCB layout,built-in surge and ESD suppression circuit. Fast current loop response,stable positioning performance,good anti-interference performance for industrial cabinet environment. Custom firmware loaded for Y367 special variant.

Feature

CACR-SR15BZ1SS-Y367 is obsolete Yaskawa SR series custom servo drive spare part. Typical failures include power board damage,encoder port breakdown,overload and overvoltage alarms. Check motor and cable integrity before replacement. Y367 customized variant cannot be directly substituted by standard CACR-SR15BZ1SS without parameter validation.

Diagnostic

When overvoltage,overcurrent,overload,encoder signal loss or overheat is detected,the drive outputs corresponding alarm codes and transmits fault signal to upper PLC or controller.

Built‑in function

Precision position,speed and torque closed-loop control,real-time encoder feedback monitoring,multiple hardware fault protection for servo motion system,used as customized servo amplifier spare replacement.

Product Brief

CACR-SR15BZ1SS-Y367 is Yaskawa SR series 1.5kW AC SERVOPACK servo drive,Y367 custom modified version for dedicated automation machinery. Confirm motor matching and customized function before ordering. ESD protection required during handling and installation.
