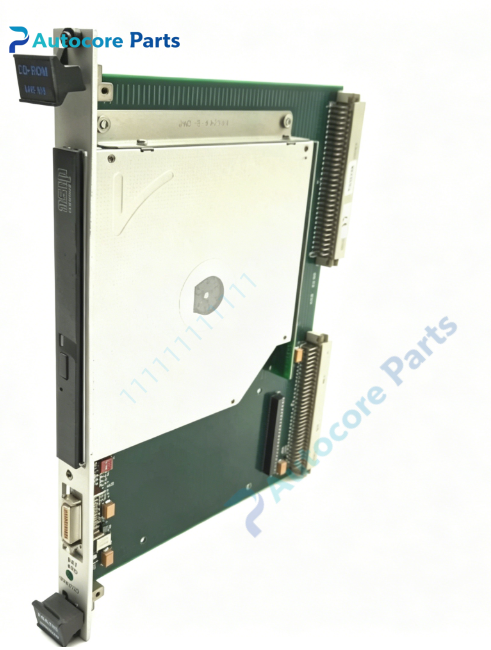

XYCOM XVME-979 Mass Storage Module

Technical Specifications

Model:XVME-979

Brand:XYCOM

Product type:VMEbus Mass Storage Module

Power supply:+5V VME backplane power

Bus interface:VME P2 backplane interface,ATAPI / IDE signal transmission

Form factor:6U single-height VME card

Weight:0.85kg

Sub variants:

XVME-979/1：5.25 inch CD-ROM + front panel external floppy connector

XVME-979/2：CD-ROM + 2.5 inch IDE hard disk + external floppy connector

XVME-979/3：CD-RW + external floppy connector

XVME-979/4：CD-RW + 2.5 inch IDE HDD + external floppy connector

XVME-979/5：DVD-RW + external floppy connector

XVME-979/6：DVD-RW + 2.5 inch IDE HDD + external floppy connector

Floppy:Support external 3.5" 1.44MB floppy drive

VME addressing:Depends on paired XVME-65x / 66x CPU board

Onboard indicator:Drive activity LED indicator

Operating temperature:5℃ ~ +50℃

Storage temperature:-40℃ ~ +65℃

Relative humidity:20%~80%,non-condensing

Certification:CE,UL

System compatibility

XVME-979 belongs to XYCOM XVME series mass storage module.

It works together with XVME-65x,XVME-66x series VME PC/AT processor boards.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

VME single-slot optical and disk storage expansion module for XVME PC/AT CPU.

Signals pass through VME P2 backplane to communicate with host CPU board.

Support ATAPI optical drive and IDE hard disk,front panel port for external floppy.

Used for system firmware upgrade,program backup,data archiving of legacy industrial control equipment.

Onboard signal buffer to stabilize IDE/ATAPI signal transmission.

Support hardware drive identification,PIO mode configuration.

Drive status displayed via activity LED indicator.

Installation

Power off VME chassis.

Insert XVME-979 card into empty 6U single-height VME slot,tighten front panel fixing screw.

Ensure P1 power and P2 backplane signal connection are reliable.

Connect external floppy or hard disk to front panel connector if required.

Power on chassis,enter BIOS to identify optical drive and hard disk.

Interface

VME P1 power connector,VME P2 signal backplane connector,ATAPI/IDE optical drive port,external floppy front panel port,LED indicators.

Feature

6U single slot VME storage module,XYCOM XVME series.

Multiple optional variants with CD-ROM,CD-RW,DVD-RW and IDE hard disk combinations.

External floppy port on front panel for offline data backup.

Designed to match XVME-65x/66x PC/AT VME processor boards.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

LED no light:P2 backplane poor contact or power supply abnormality;

Optical drive cannot be detected:check P2 connection and BIOS ATAPI setting;

Hard disk recognition failure:verify IDE cable and drive power;

External floppy read write error:check floppy media and cable connection.

Product Brief

XYCOM XVME-979 is legacy VMEbus 6U mass storage module with optical drive and IDE hard disk options for XVME-65x/66x CPU boards.

It provides firmware upgrade and data backup storage,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
