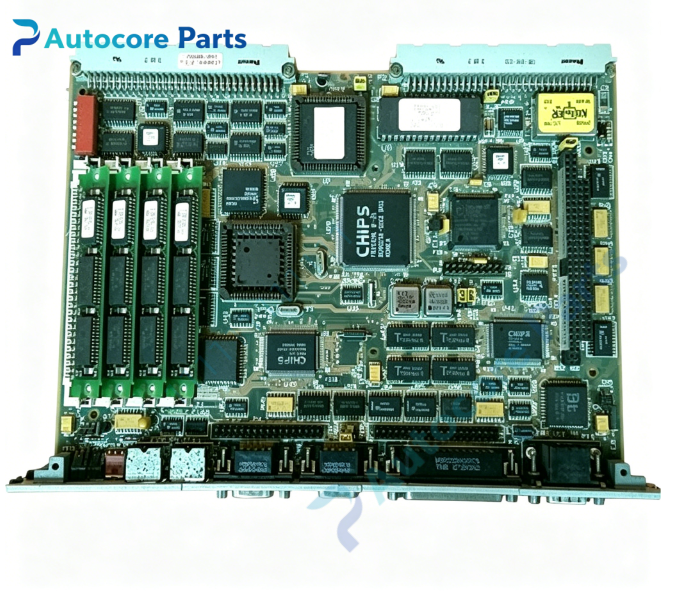

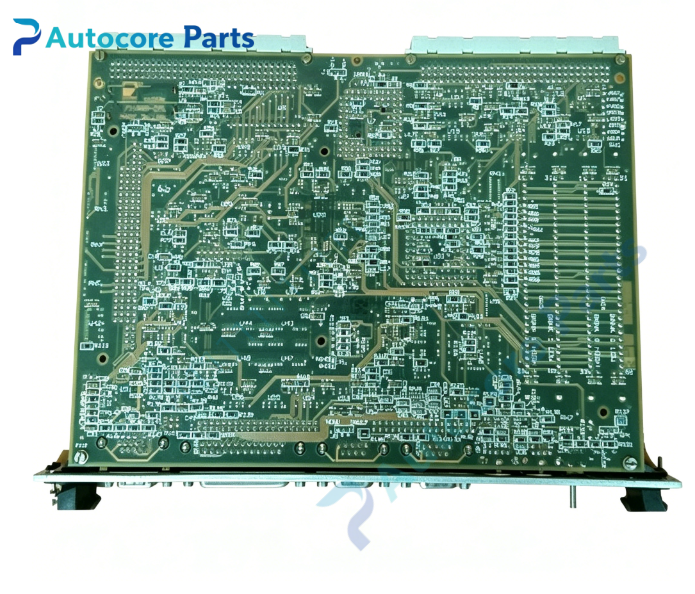

XYCOM XVME-688 VMEbus 486 Processor Module

Technical Specifications

Model:70688-001 VME-AT (XVME-688)

Brand:XYCOM

Product type:6U Single Height VMEbus PC/AT Compatible Embedded Single Board Computer

Power supply:+5V,+12V,-12V VME backplane power

Processor:Intel 80486SLC/e,clock speed 25MHz

Memory:8MB DRAM,optional Cyrix FasMath math coprocessor

Onboard peripheral:VGA graphics controller,IDE hard disk controller,floppy disk controller

Onboard I/O:2 × RS232 serial port,1 × parallel printer port,PS/2 keyboard & mouse interface,onboard audio speaker

Bus interface:Standard VMEbus,A32/D16,support VME master/slave,7-level VME interrupt

Form factor:Single-height 6U VME card

Weight:0.29kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

70688-001 VME-AT belongs to XYCOM XVME series VME CPU board.

It serves as main controller of VME chassis and cooperates with XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Act as the main processor unit of VME control rack,run PC/AT compatible industrial control operating system.

Manage VME bus arbitration,read and write data of each I/O module inside chassis.

Process analog and discrete field signals,execute closed-loop control and safety interlock logic.

VGA interface supports display output for on-site monitoring and system debugging.

IDE and floppy controller support local storage for firmware and control program.

Dual RS232 serial ports,parallel port and PS/2 keyboard/mouse interface for peripheral connection.

Onboard speaker for system alarm and status prompt.

Onboard self-test for CPU,memory,storage interface and VME bus hardware fault inspection.

Support 7-level VME bus interrupt for fast event response.

Installation

Power off VME chassis.

Insert 70688-001 VME-AT card into empty 6U VME slot,tighten front panel fixing screw.

Connect serial cable,VGA display,PS/2 keyboard and storage device as required.

Power on chassis,complete boot sequence and run hardware self-test.

Scan VME backplane to identify all I/O modules,load control software.

Interface

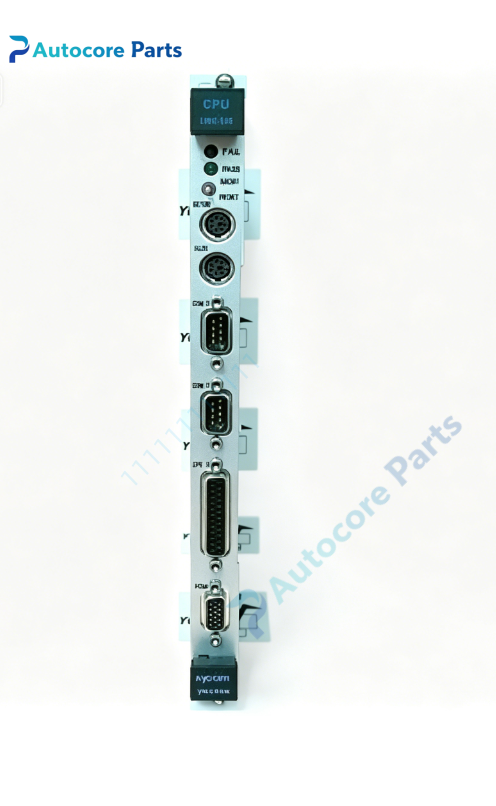

VME P1/P2 backplane connector,front VGA port,PS/2 keyboard/mouse port,dual RS232 serial port,parallel port,speaker interface,LED indicators:PASS,FAIL.

Feature

Single height 6U VME standard board,PC/AT compatible architecture,easy replacement in VME rack.

Intel 80486SLC/e low power industrial processor,suitable for legacy real-time control applications.

Integrated VGA,IDE,floppy,audio and multi I/O ports,reduce auxiliary hardware requirement.

Optional math coprocessor for complex process calculation.

Support VME master/slave and multi-level interrupt,stable data exchange with I/O boards.

Discontinued obsolete VME CPU module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAIL LED on:memory fault,CPU failure or poor backplane contact;

System boot failure:check DRAM,storage media and VME backplane power;

VGA/serial abnormal:check front panel wiring and peripheral hardware;

Cannot communicate with I/O modules:check VME bus arbitration and address mapping.

Product Brief

XYCOM 70688-001 VME-AT (XVME-688) is legacy 6U single height VMEbus PC/AT compatible single board computer based on Intel 80486SLC/e processor.

It runs industrial control software and communicates with all I/O modules in VME rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
