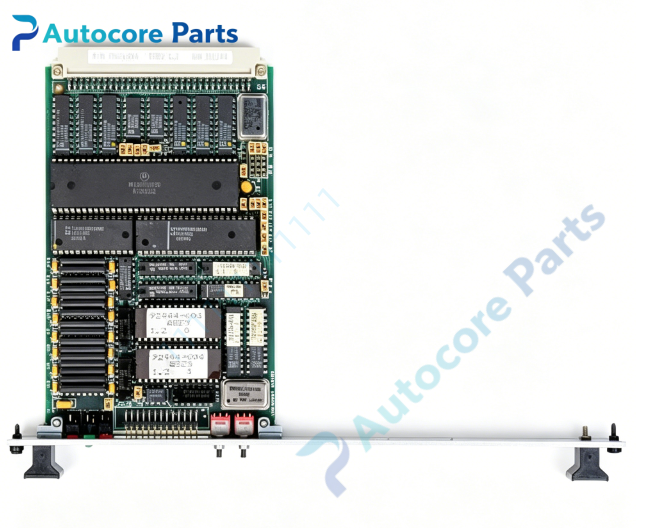

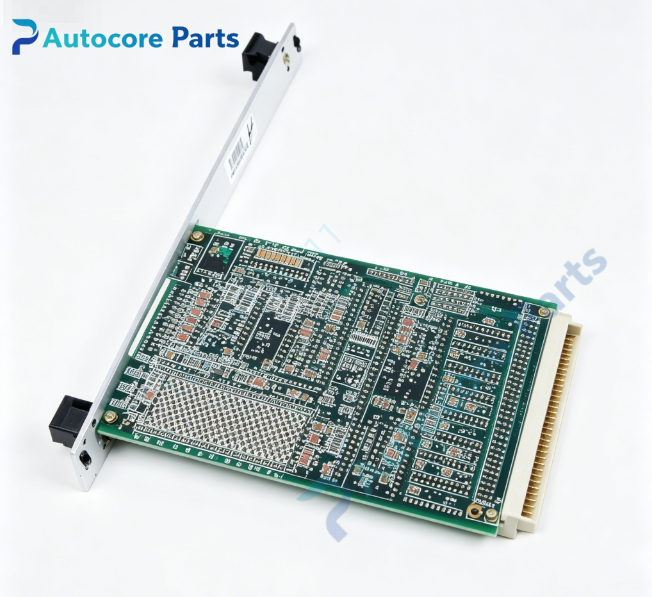

XYCOM XVME-601/5 Processor Module

Technical Specifications

Model:XVME-601/5

Brand:XYCOM

Product type:VMEbus Single Board Computer Processor Module

Power supply:+5V,+12V,-12V VME backplane power

Bus interface:Standard VMEbus,bus master & slave,support VME interrupt IRQ0~IRQ7

Form factor:3U single-height VME card

Weight:0.28kg

CPU:Motorola 68010,10MHz

Local memory:512KB zero wait-state DRAM;EPROM socket,max 128KB for firmware

Serial controller:68681 DUART,2 channel RS232

Timer:16-bit programmable onboard timer

VME addressing:A16/A24,D08/D16

Onboard indicator:FAIL,PASS,HALT LED;RESET,ABORT switch

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-601/5 belongs to XYCOM XVME series VME single board computer.

It installs in XYCOM VME chassis and cooperates with XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Act as main CPU controller of VME rack,run real-time control program and data acquisition task.

Motorola 68010 processor executes application firmware,realize logic calculation and closed-loop control.

512KB local DRAM for program runtime data storage;EPROM stores system firmware.

Dual RS232 serial ports for communication with local terminal or serial field devices.

Onboard 16-bit timer provides timing and periodic interrupt for control cycle scheduling.

Full VME bus master function,access all VME I/O modules on backplane,read sensor data and output control commands.

Support VME bus arbitration,system reset,interrupt daisy chain management.

Onboard self-test for CPU,memory,serial circuit,VME bus interface,report fault via FAIL LED.

Installation

Power off VME chassis.

Insert XVME-601/5 card into empty 3U single-height VME slot,tighten front panel fixing screw.

Set base address,interrupt level and memory configuration via board jumpers.

Connect serial terminal wiring to front panel JK1 connector.

Power on chassis,run hardware self-test.

The module becomes VME system master and initialize all rack I/O modules.

Interface

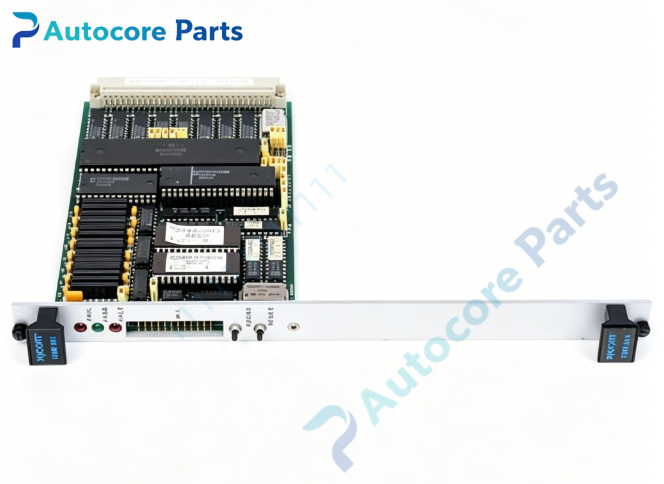

VME P1 backplane connector,front panel JK1 serial header,LED indicators and reset switch.

Feature

3U single slot VME single board computer,XYCOM XVME series.

Motorola 68010 10MHz real-time processor for industrial control.

Zero wait-state 512KB local DRAM,stable runtime memory access.

Dual RS232 communication ports for local debugging and peripheral connection.

Integrated VME bus arbiter,bus timer and full interrupt management.

Onboard reset and abort switch for system debugging.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAIL LED on:CPU fault,memory error or VME bus interface damage;

Cannot boot:check backplane contact,jumper setting,firmware EPROM;

Serial communication failure:check JK1 wiring,baud rate and serial transceiver circuit;

VME bus access error:check bus arbitration and interrupt jumper configuration.

Product Brief

XYCOM XVME-601/5 is legacy VMEbus 3U single board computer based on Motorola 68010 processor.

It works as main controller for VME rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
