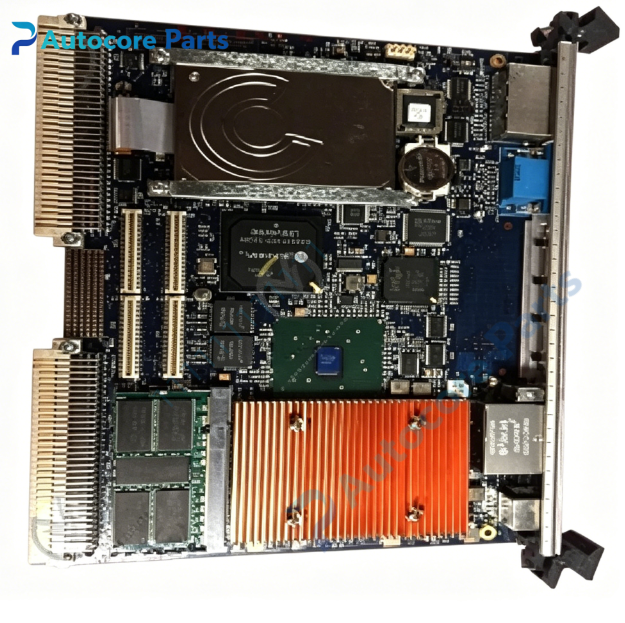

XYCOM XVME-600 VMEbus CPU Single Board Computer

Technical Specifications

Model:70600-001 XVME-600

Brand:XYCOM

Product type:6U Single Height VMEbus Embedded CPU Single Board Computer

Power supply:+5V,+12V,-12V VME backplane power

Processor:Onboard industrial embedded CPU

Memory:Onboard RAM,non-volatile storage for BIOS and firmware

Bus interface:Standard VMEbus master/slave function

Front panel I/O:Serial port,debug interface

Form factor:Single-height 6U VME card

Weight:0.27kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

70600-001 XVME-600 belongs to XYCOM XVME series VME CPU board.

It acts as the main controller of VME chassis,cooperates with XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

As the host CPU of VME system,execute control program and system operating logic.

Complete VME bus management,read and write data of each I/O card in the rack.

Process field collected analog and digital signals,run closed-loop control algorithm.

Support serial communication for parameter configuration and system debugging.

Onboard self-test for CPU,memory and bus hardware fault inspection.

Store system firmware and configuration parameters.

Installation

Power off VME chassis.

Insert 70600-001 XVME-600 card into empty 6U VME slot,tighten front panel fixing screw.

Connect front debug serial cable.

Power on chassis,run system boot and self-test program.

Scan VME backplane,recognize all I/O modules,download control firmware.

Interface

VME P1/P2 backplane connector,front serial debug port,LED indicators:PASS,FAIL.

Feature

Single height 6U VME standard board,serve as main controller for XVME rack.

Integrated CPU,memory and BIOS,standalone operation without auxiliary board.

VME bus master capability,real-time data exchange with all I/O modules.

Industrial low-power design,stable for continuous long-time operation.

Discontinued obsolete VME CPU module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine and compressor control cabinet.

Diagnostic

FAIL LED on:memory fault,CPU failure or backplane poor contact;

System cannot boot:check firmware image integrity and power supply;

Cannot communicate with I/O cards:check VME backplane and bus arbitration setting.

Product Brief

XYCOM 70600-001 XVME-600 is legacy 6U single height VMEbus embedded CPU single board computer.

It works as main processor of VME control rack to execute control logic and communicate with I/O modules,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.
