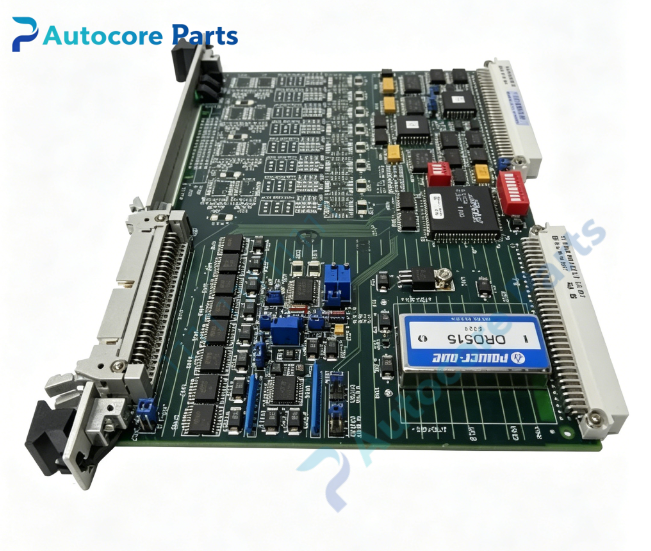

XYCOM XVME-564 Analog Input Module

Technical Specifications

Model:XVME-564

Brand:XYCOM

Product type:VMEbus High Density 16-bit Analog Input Module

Power supply:+5V VME backplane power

Bus interface:Standard VMEbus,slave communication,support VME interrupt

Form factor:Double-height 6U VME card

Weight:0.45kg

Resolution:16-bit A/D conversion,jumper switchable to 12-bit mode for XVME-560 compatibility

Channel configuration:64 single-ended /32 differential /64 pseudo-differential analog input

Programmable gain:1,2,5,10,4,8,20,40,10,20,50,100 software selectable gain

Input voltage range:Unipolar 0~5V,0~10V; Bipolar ±5V,±10V

Max throughput:100kHz single-channel sampling rate

Sampling modes:Single channel conversion,sequential scan,random channel,external hardware trigger,auto scan

VME addressing:A16/D16 compatible,jumper selectable base address

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-564 belongs to XYCOM XVME series high-precision high-density analog acquisition module.

It installs in XYCOM VME chassis and cooperates with XVME series CPU and I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

High precision multi-channel analog signal collection for VME control rack.

16-bit high resolution ADC collects pressure,temperature,flow,displacement sensor signals.

Three configurable channel wiring modes:single-ended,differential and pseudo-differential.

Software programmable multi-range gain to adapt weak signal and standard transmitter signals.

Backward compatible with XVME-560 via jumper setting,runs in 12-bit mode for old system upgrade.

Multiple sampling trigger modes support flexible data acquisition scheduling.

Generate VME interrupt once A/D conversion finished to notify host CPU.

Transmit converted digital sampling data to VME main CPU over VME backplane.

Onboard self-test for ADC circuit,analog front-end,data bus and VME bus interface fault inspection.

Installation

Power off VME chassis.

Insert XVME-564 card into empty double-height VME position,tighten front panel fixing screw.

Set base address and interrupt level via board jumpers.

Select channel wiring mode and choose 16-bit or 12-bit compatibility mode.

Connect sensor analog wiring to front panel header.

Power on chassis,run hardware self-test.

VME CPU scans bus,identifies the board and starts analog signal acquisition.

Interface

VME P1 backplane connector,front panel analog input wiring header,LED indicators:PASS,FAULT.

Feature

Double height 6U VME high density analog input board,XYCOM XVME series.

16-bit high precision ADC,much higher accuracy than XVME-560 12-bit version.

Three channel wiring configurations for different field anti-interference demands.

Rich software programmable gain options for low amplitude sensor signals.

Jumper selectable XVME-560 backward compatibility for existing system retrofit.

Multiple sampling modes including external hardware trigger.

Differential input design suppress ground loop and common-mode noise.

VME slave interface,easy plug-in installation.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:ADC or analog front-end circuit damage,VME bus communication failure;

Cannot be identified by CPU:check VME backplane contact and base address jumper setting;

Reading unstable/jitter:check differential wiring,shield grounding and common-mode noise;

No sampling data:verify channel configuration,input signal amplitude and wiring continuity.

Product Brief

XYCOM XVME-564 is legacy VMEbus high-density 16-bit analog input module with XVME-560 backward compatibility.

It provides high-precision multi-point analog signal acquisition for VME control rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.
